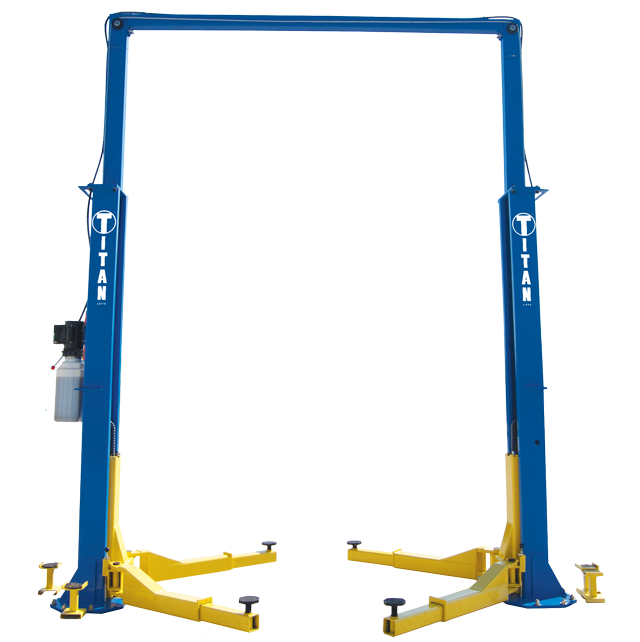

TITAN HD2P-15000C 2-Post Lift

To Save on Shipping Cost Call 800-837-3818 For Local Pickup

A Texas style two post lift with 15,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate for extra stability.

The Titan 15,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.

The Titan 15,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Features:

• 15,000 lb. lifting capacity
• Low profile automatic arm restraints
• Dual 3” diameter cylinders with low friction chain rollers
• “Big Foot” base plates for stability
• Electrical override automatic safety shut-off on clear-floor models
• FREE mounting hardware
• Durable powder-coated finish
• 1 Year Electric/Hydraulic Warranty
• 5 Year Structural Warranty

Specifications:

• Overall Height 182"
• Overall Width 148.375"
• Width Between Post 120.75"
• Drive-Thru 109.5"
• Min Pad Height 5"
• Max Pad Height 76.5"
• Lifting Speed 45 sec
• Lifting Capacity 15,000 lb
• Concrete Spec Min 6" @ 3,000 PSI
• Power Unit 220V-1PH-60HZ-20AMP

Shipping:

• Shipping Length 126"
• Shipping Width 36"
• Shipping Height 53"
• Shipping Weight 2,650 lb

Details:

• GTIN / UPC 091037579539
• Warranty 1 Year Parts / 5 Year Structural

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off of the truck.)
