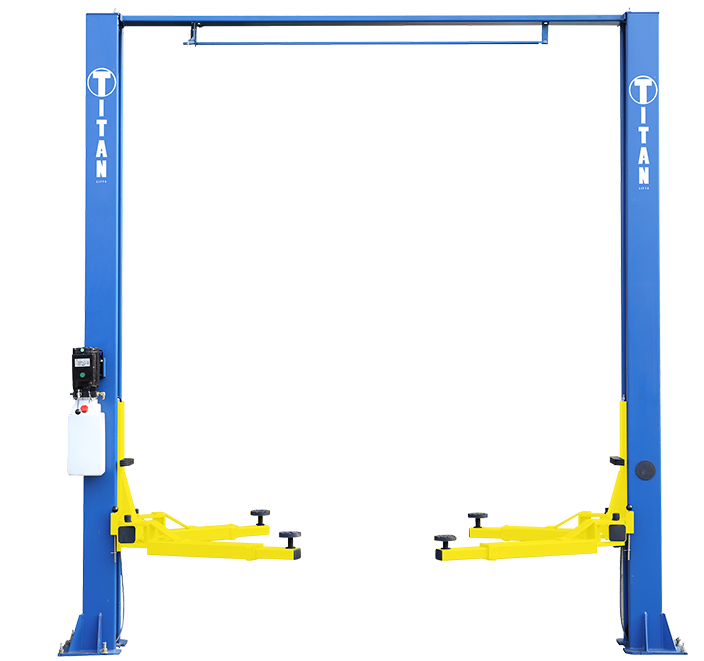

Titan HD2P-9000AC 2-Post Lift

To Save on Shipping Cost Call 800-837-3818 For Local Pickup

The Titan 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.

The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Features:

• Commercial Grade
• 9,000lb. Lifting Capacity
• Asymmetric Arm Design
• Rubber Door Guards
• Padded Overhead Safety Shut-off Bar
• Dual-Point Safety Release
• Durable Powder-coated Finish
• Low-profile Lifting Arms equipped with Automatic Arm Restraints
• Dual 3” Cylinders with Low Friction Chain Rollers
• Threaded Lifting Pads
• Stackable Truck Adapters
• Space-saving Power Unit Mounting Bracket
• Sleek Internal Hose Routing with Integrated Hose Guards
• Anchor Bolt Kit Included
• 1 Year Electric/Hydraulic Parts Warranty
• 5 Year Structural Parts Warranty

Shipping:

• Shipping Length 145"
• Shipping Width 19"
• Shipping Height 44"
• Shipping Weight 1,380 lb

Details:

• GTIN / UPC 091037579850
• Warranty 1 Year Parts / 5 Year Structural
• Lifting Capacity 9,000 lb
• Power Unit 220V
• Amp Draw 15 - 26 amp
• Lifting Speed 45 sec
• Width 137.80"
• Height 142.95"
• Width Between Columns 113.62"
• Drive Thru Clearance 103.98"
• Lifting Height 4.65" - 72.84"
• Concrete Spec Minimum 4" @ 3000PSI

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off of the truck.)
