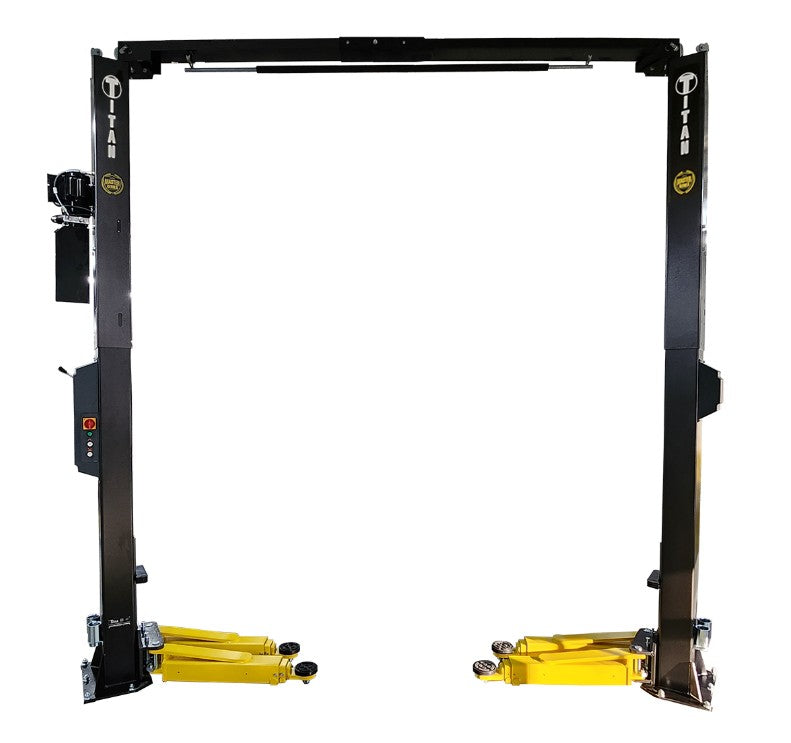

Titan Master Series HD2P-12KMSC 12,000lb Clearfloor 2-Post Lift

The all-new Titan Lifts Master Series 12,000lb two post clear floor lift—perfect for any hobbyist or commercialized application. With the flexibility to have asymmetric or symmetric columns and two height options of either 154” or 176” this lift is a great option for most applications. The 12KMSC comes with a premium motor by 100-year old industry innovator Bucher Hydraulics, and a robust set of 3 stage arms to ensure years of consistent operation. Combine all that with the included disconnect and one button operation to be the last lift you will ever need.

Features :

• 12,000 lb lifting capacity

• Asymmetric or Symmetric columns

• Lift height of 154” or 176”

• Power on Green LED

• Single button operation

• Included electrical disconnect

• Single lever lowering

• Direct drive hydraulic cylinders

• Single point lock release

• Overhead shut-off bar with limit switch

• Carriage limit switch

• Serviceable arm restraint locks

• Four 3 stage arms

• European style carriages

• Thread up lifting pads

• 4” truck adapters

• Rubber door guards

• Steel hydraulic oil reservoir

• Powder coated hammered dark finish

• 5 Year Structural Warranty

• 2 Year Electric/Hydraulic Warranty

• Lifetime Warranty on Nylon Slide Blocks

• Durable Textured Powder-coated Finish

Symmetrical Column Configuration:

• Outside Of Baseplates - Width | 154-7/8"

• Inside of Columns - Width | 131-3/4"

• Overall Width w/Motor | 160-3/16"

• Drive-Thru | 119"

• Lifting Height | 4-5/16” to 74-13/16”

• Overall Height | 153-9/16" or 175-1/4"

• Lifting Capacity | 12,000 lb

• Shipping Weight | 2,190 lb

• Power Unit | 220V-60Hz-1Ph-2.2kW

Asymmetrical Column Configuration:

• Outside Of Baseplates - Width | 161-1/2"

• Inside of Columns - Width | 126"

• Overall Width w/Motor | 161-1/2"

• Drive-Thru | 113-3/8"

• Lifting Height | 4-5/16” to 74-13/16”

• Overall Height | 153-9/16" or 175-1/4"

• Lifting Capacity | 12,000 lb

• Shipping Weight | 2,190 lb

• Power Unit | 220V-60Hz-1Ph-2.2kW
