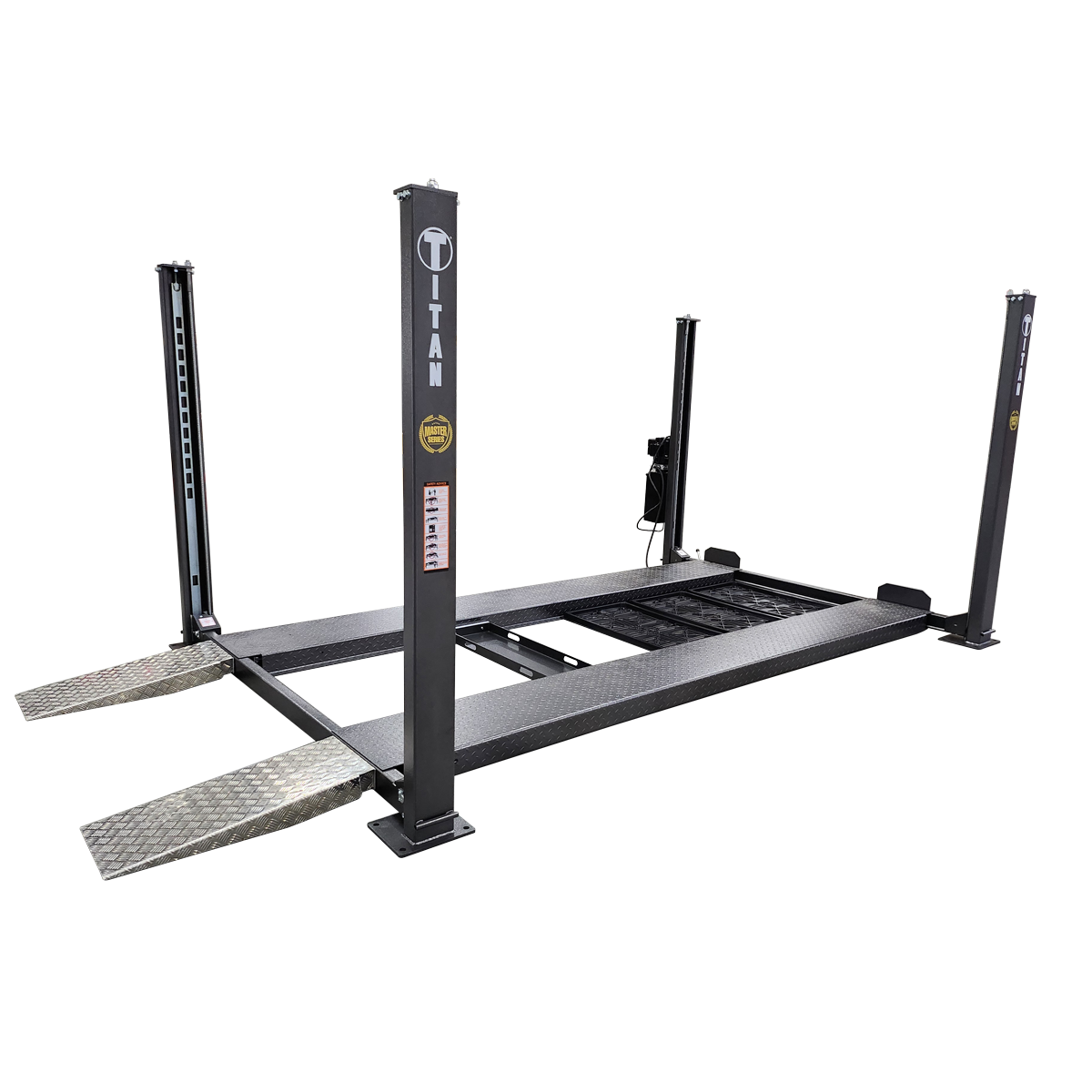

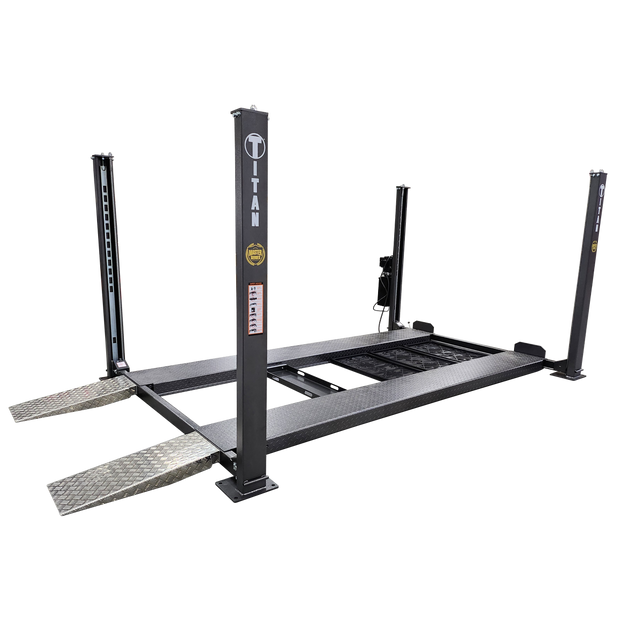

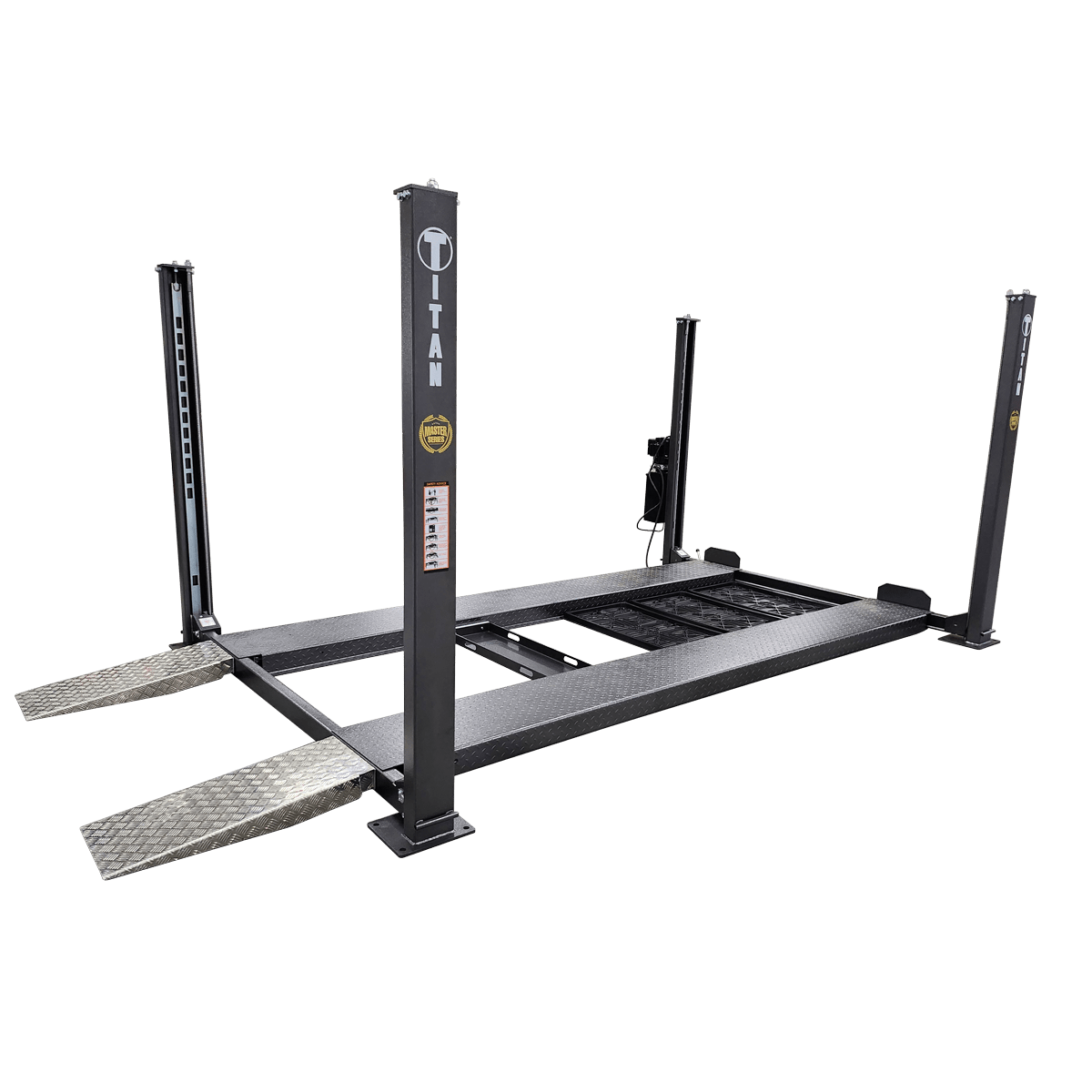

Titan Master Series SDPL-8KMS 8,000lb 4-Post Lift

PROMO PRICE | OFFER ENDS 12/31/24

The Titan Master Series 4-post parking/storage lifts are an ideal choice for automotive enthusiasts needing extra garage space for a car, boat, lawn equipment, etc. The 110-volt motor allows for easy adaptation into a garage or workshop in any residential application. Easy operation lock release handle located by the power unit will minimize bending or squatting during operation. The internal linkage rods are sleek and hidden, while still accessible for adjustments if needed. This feature makes The Master Series a perfect lift for the individual who may work on their vehicle while on the lift.

Features:

• 8,000 lb lifting capacity
• Powder coated hammered dark finish
• Internal linkage rods
• Single point safety lock release handle
• Metal hydraulic tank reservoir
• Diamond plated steel one piece formed runways
• 2 years electrical and hydraulic
• 6-year structural warranty

Included:

• Aluminum ramps

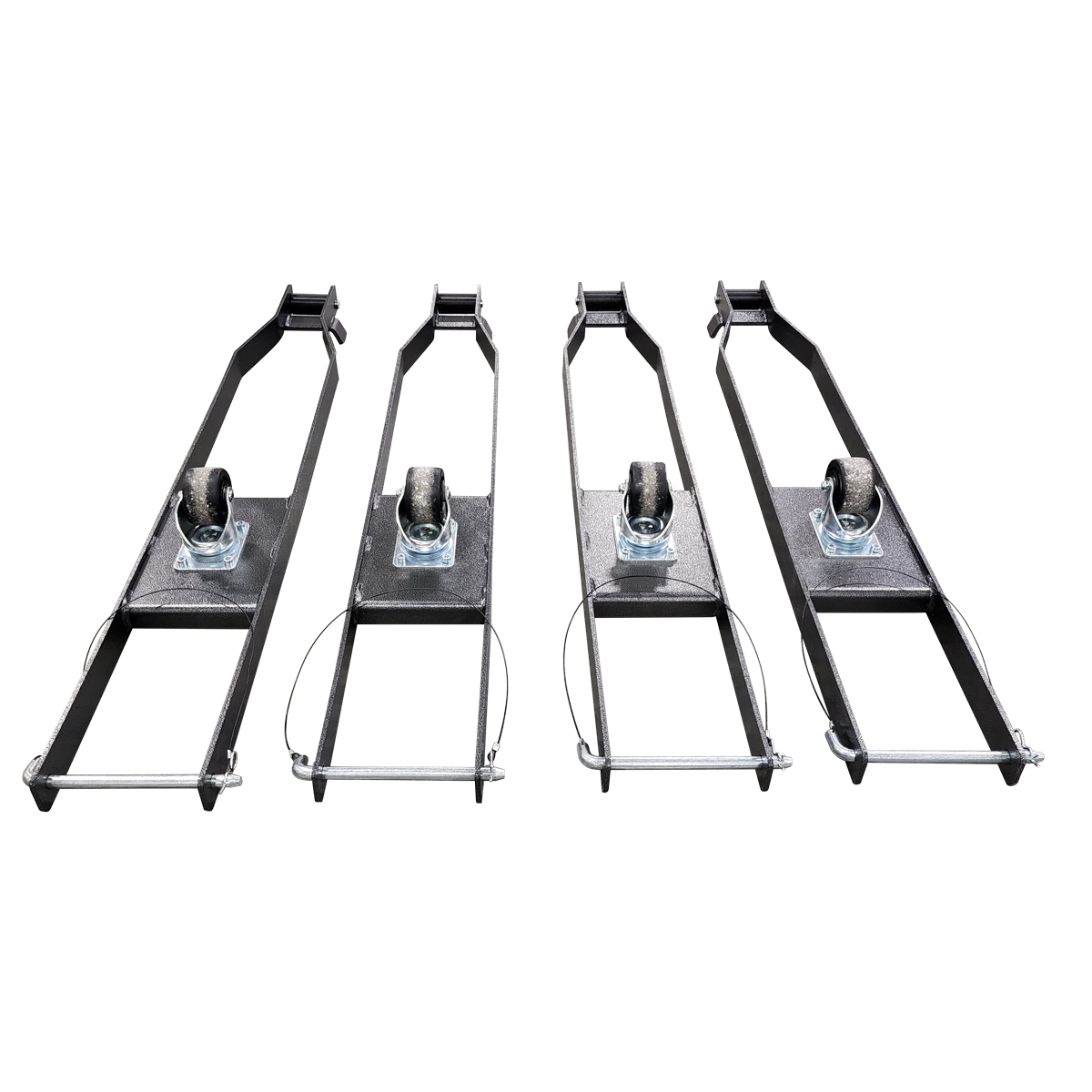

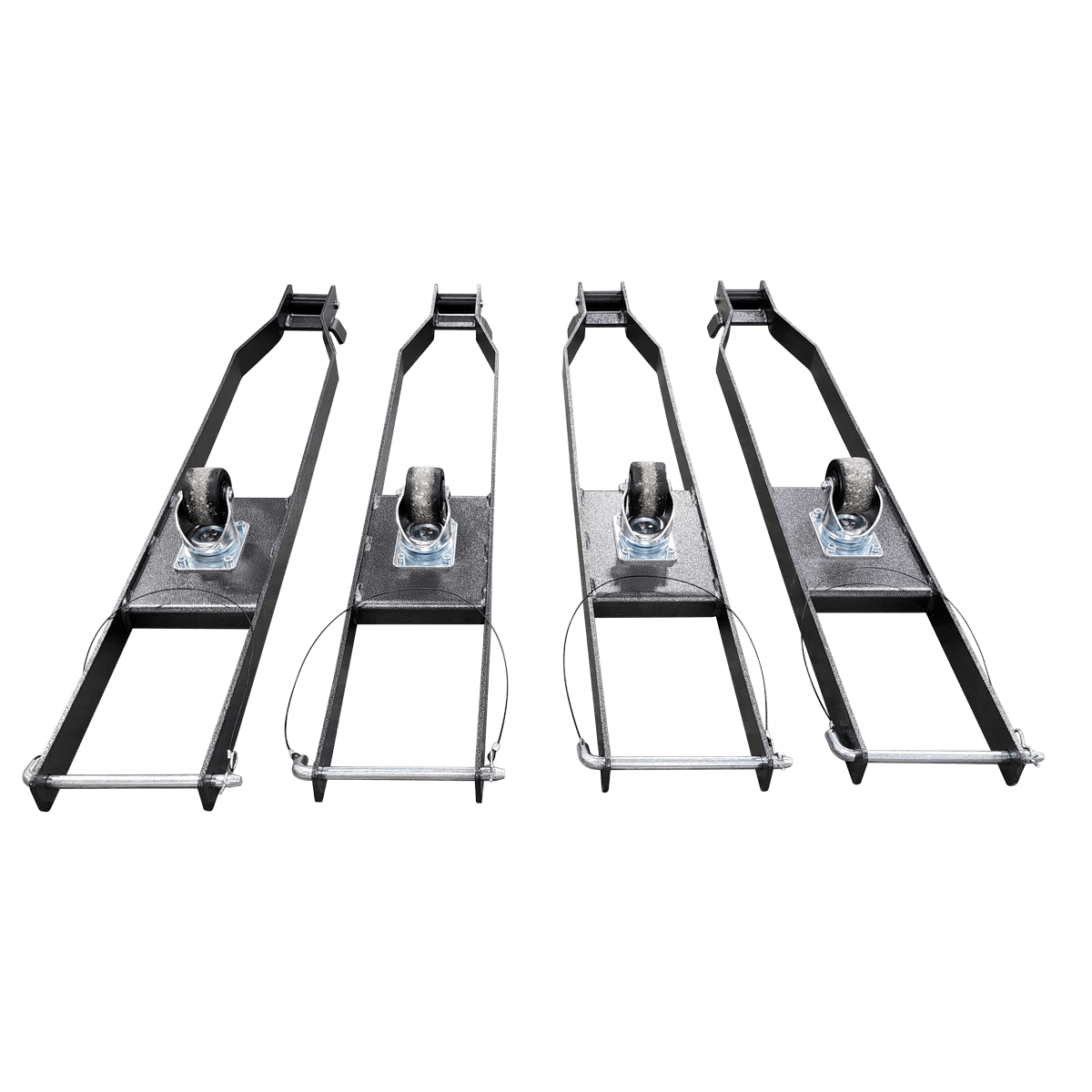

• Caster kit
• 3 drip trays
• Tool tray
• 2 wheel stop plates

Optional:

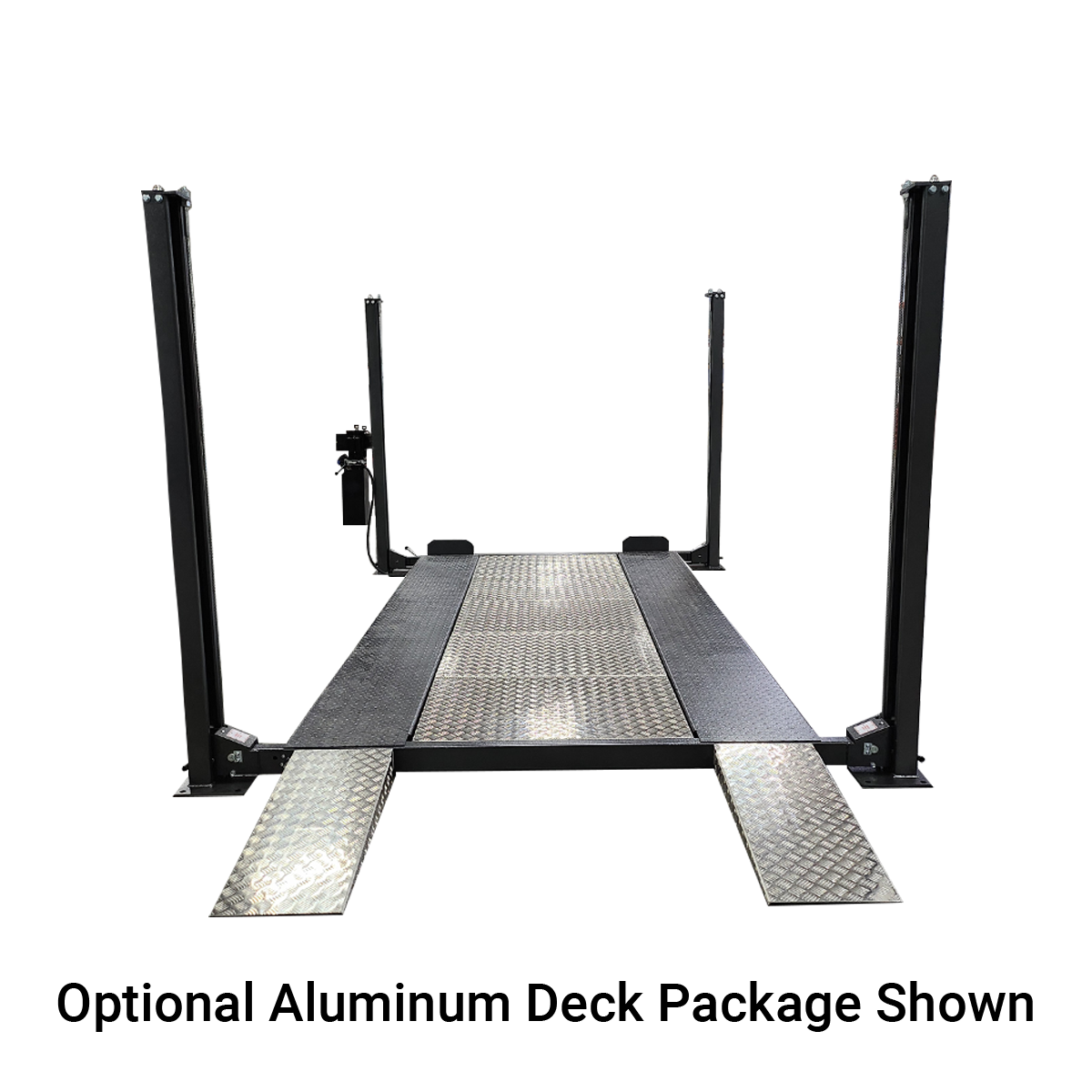

• Aluminum center deck package
• Jack tray
• Sliding bridge jack

Specifications:

• Center Of Baseplates - Width | 99-5/8”
• Outside Of Baseplates - Width | 109-13/16”
• Outside Of Columns - Width | 107-1/16”
• Inside of Columns - Width | 100-3/8”
• Overall Width w/Motor | 122-5/8”
• Drive-Thru | 90”
• Between Runways | 43-1/2”
• Out To Out - Runways | 80-7/8”
• Length of Runway | 160”
• Width of Runway | 18-11/16”
• Total Length of Ramp | 36-5/8”
• Baseplate Dimensions | 11-13/16” x 10-1/4”
• Column Dimensions | 3-3/8” x 6-5/16”
• Center Of Baseplates - Length | 158-1/16”
• Outside Of Baseplates - Length | 169-7/8”
• Outside Of Columns - Length | 164-3/8”
• Inside Of Columns - Length | 151-3/4”
• Overall Length w/Ramps | 201-7/16”
• Lifting Height | 4-1/2” - 76-3/4”
• Overall Height | 83-9/16”
• Lifting Capacity | 8,000 lb
• Shipping Weight | 1,667 lb
• Shipping Dimensions | 164"L x 23"w x 45"h

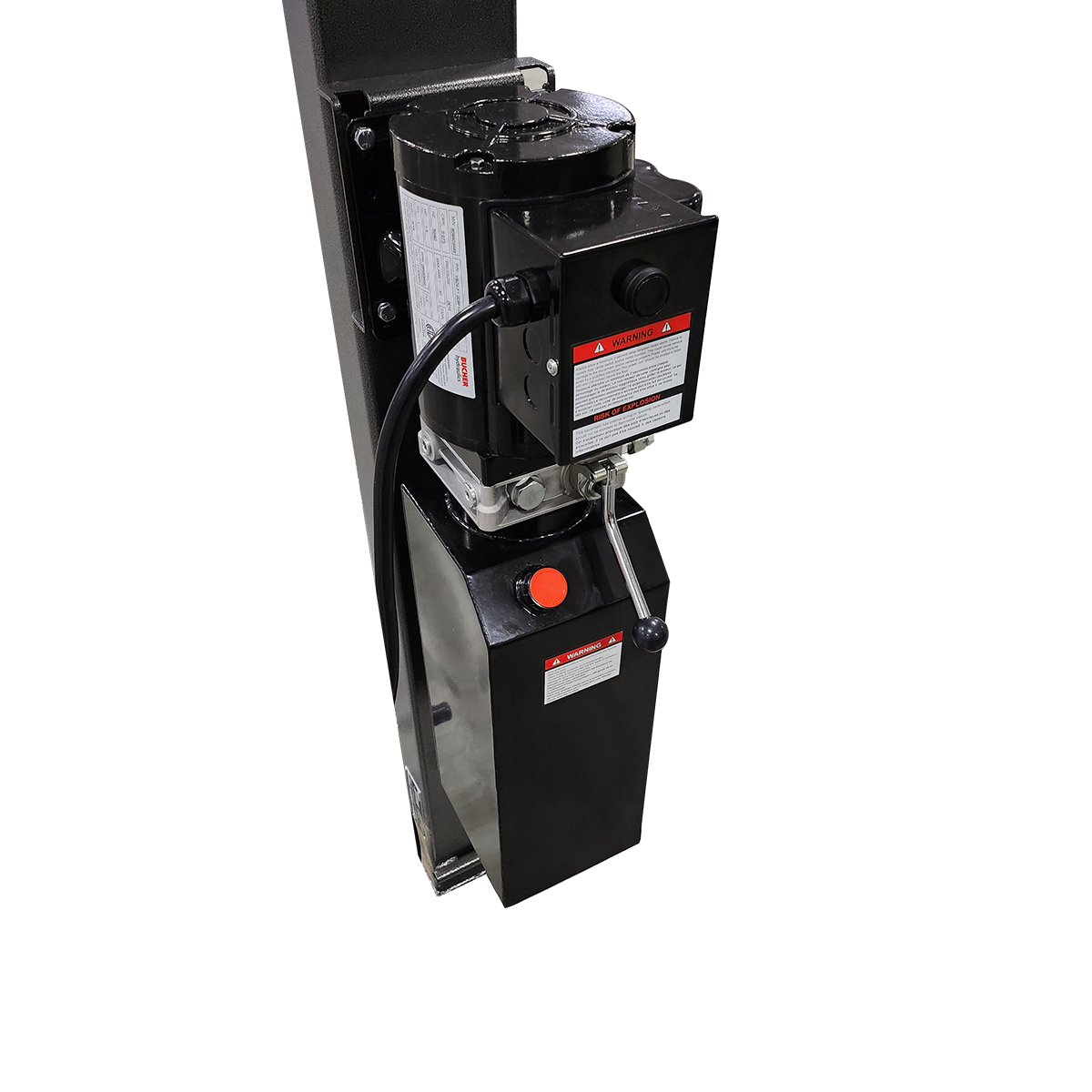

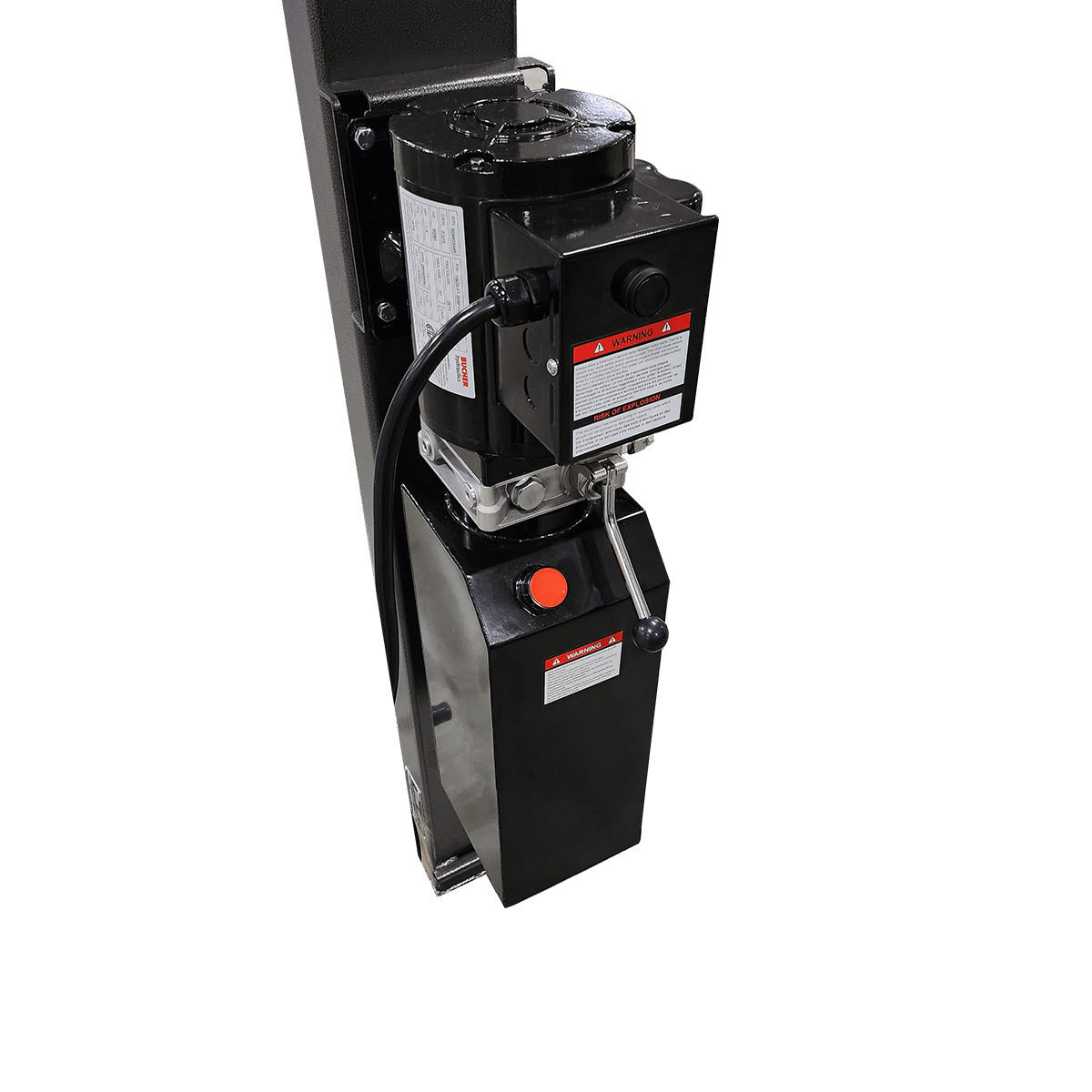

• Power Unit | 110V-120V

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off of the truck.)
