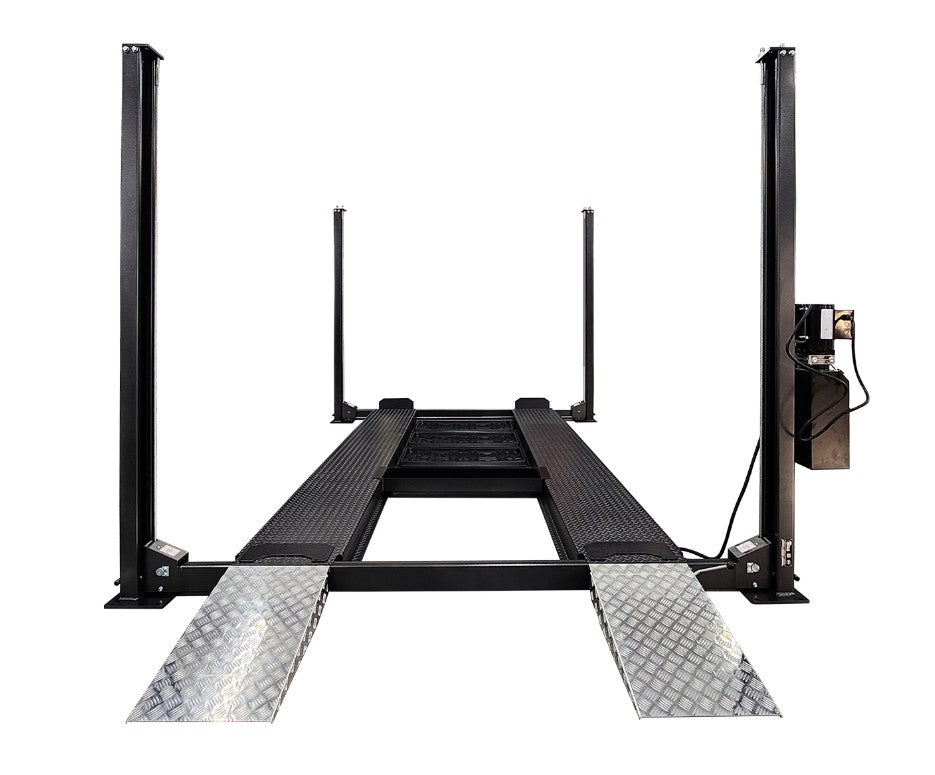

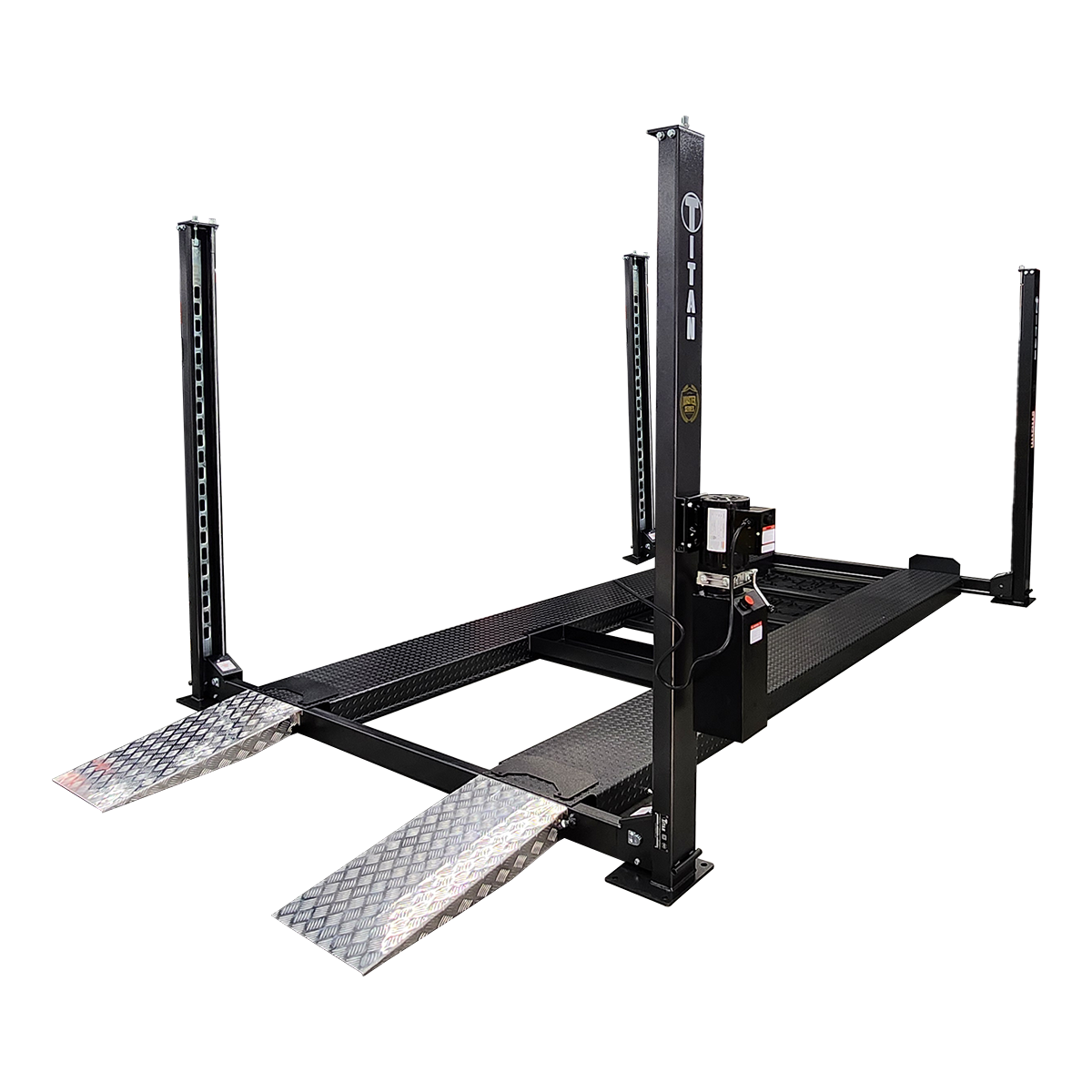

Titan Master Series SDPL-9KMS-XLT 9,000lb 4-Post Lift

The Titan Master Series 4-post 9,000-pound parking / storage lifts are an ideal choice for automotive enthusiasts needing extra garage space for a car, truck, boat, lawn equipment, etc. The 110-volt motor allows for easy adaptation into a garage or workshop in any residential application. The optional easy to use caster kits make it possible to move the lift around your garage with ease. Easy operation lock release handle located by the power unit will minimize bending or squatting during operation. With its jack tray, greaseable pullies and the internal linkage rods that are sleek and hidden, while still accessible for adjustments if needed, these features make the Master Series a perfect lift for the individual who may work on their vehicle regularly while on the lift.

Features:

• 9,000 lb lifting capacity

• Powder coated hammered dark finish

• Internal linkage rods

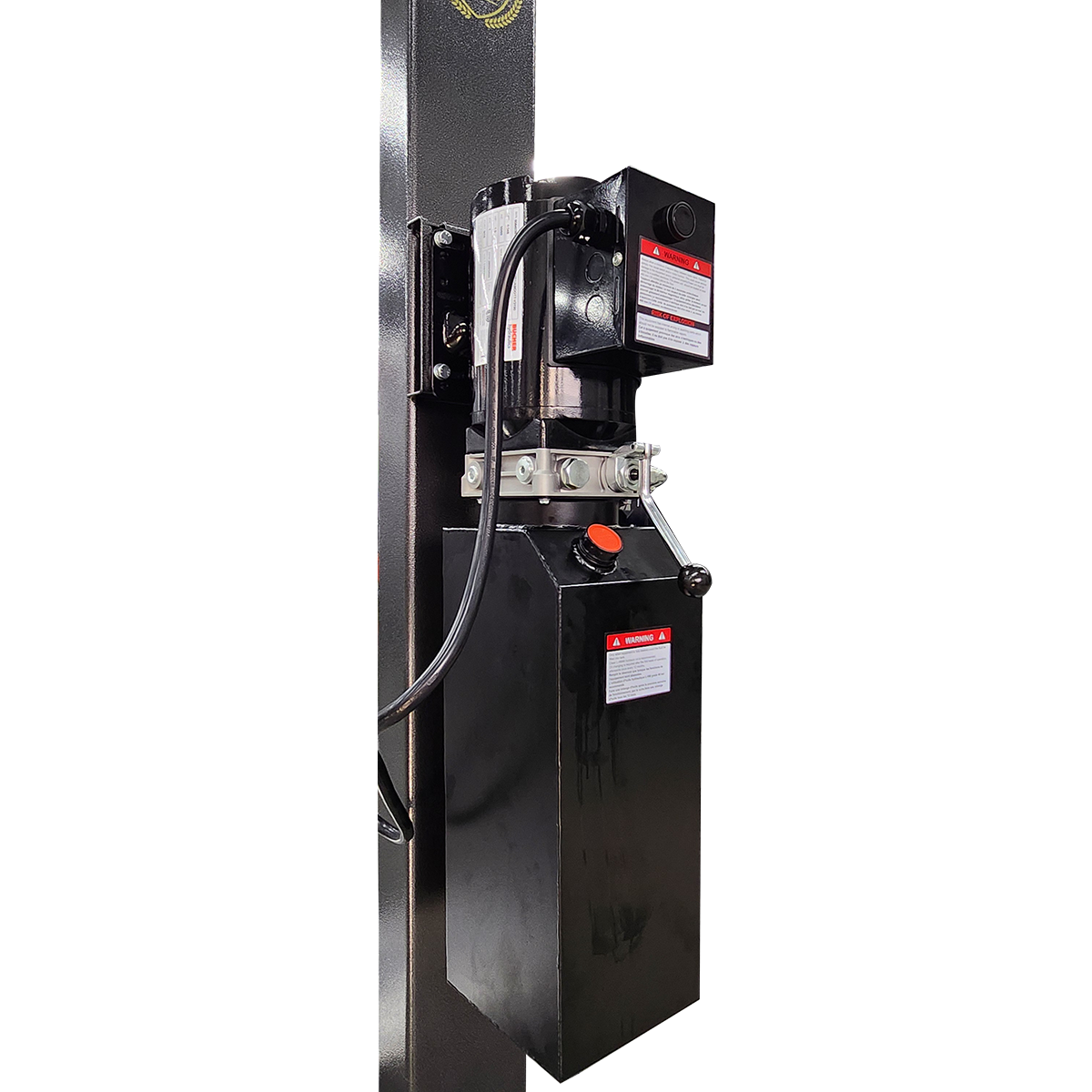

• Single point safety lock release handle

• Metal hydraulic tank reservoir

• Diamond plated steel one piece formed runways

• Extra steel supports under runway

• Greaseable Pulley’s

Included:

• Aluminum ramps

• 3 drip trays

• Jack tray

• 4 wheel stops

Optional accessories:

• Caster Kit

• Sliding bridge jack

• Aluminum center deck package (COMING SOON)

Specifications:

• Center Of Baseplates - Width | 112-3/16”

• Outside Of Baseplates - Width | 121-1/2”

• Outside Of Columns - Width | 118-3/4”

• Inside of Columns - Width | 112"

• Overall Width w/Motor | 133-7/8”

• Drive-Thru | 99-1/2"

• Between Runways | 43-1/2”

• Out To Out - Runways | 83-1/4”

• Length of Runway | 189-9/16”

• Width of Runway | 19-7/8”

• Total Length of Ramp | 36-5/8”

• Baseplate Dimensions | 11-13/16” x 10-1/4”

• Column Dimensions | 3-1/4" x 6-1/4"

• Center Of Baseplates - Length | 187-5/8"

• Outside Of Baseplates - Length | 199-1/2”

• Outside Of Columns - Length | 193-7/8”

• Inside Of Columns - Length | 180-1/2"

• Overall Length w/Ramps | 231”

• Lifting Height | 5-1/2” - 87-3/16”

• Overall Height | 97-5/16”

• Lifting Capacity | 9,000 lb

• Shipping Weight | 2,002 lb
