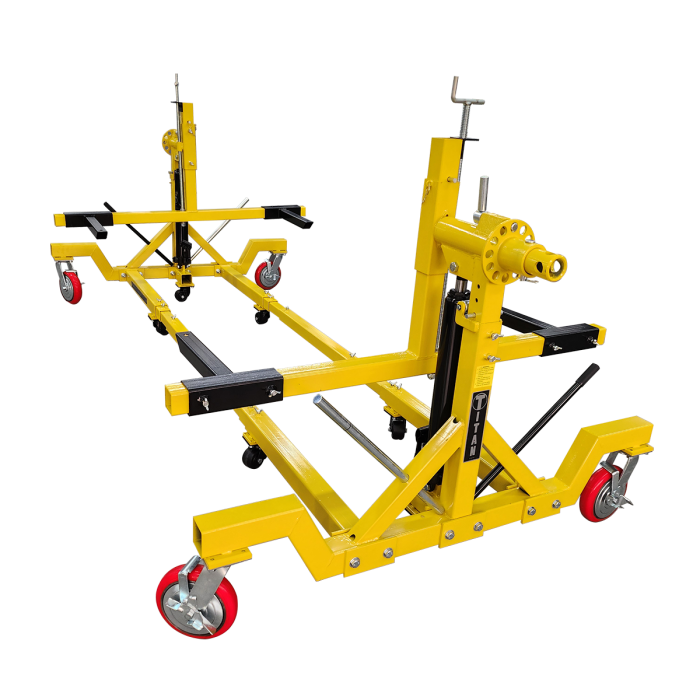

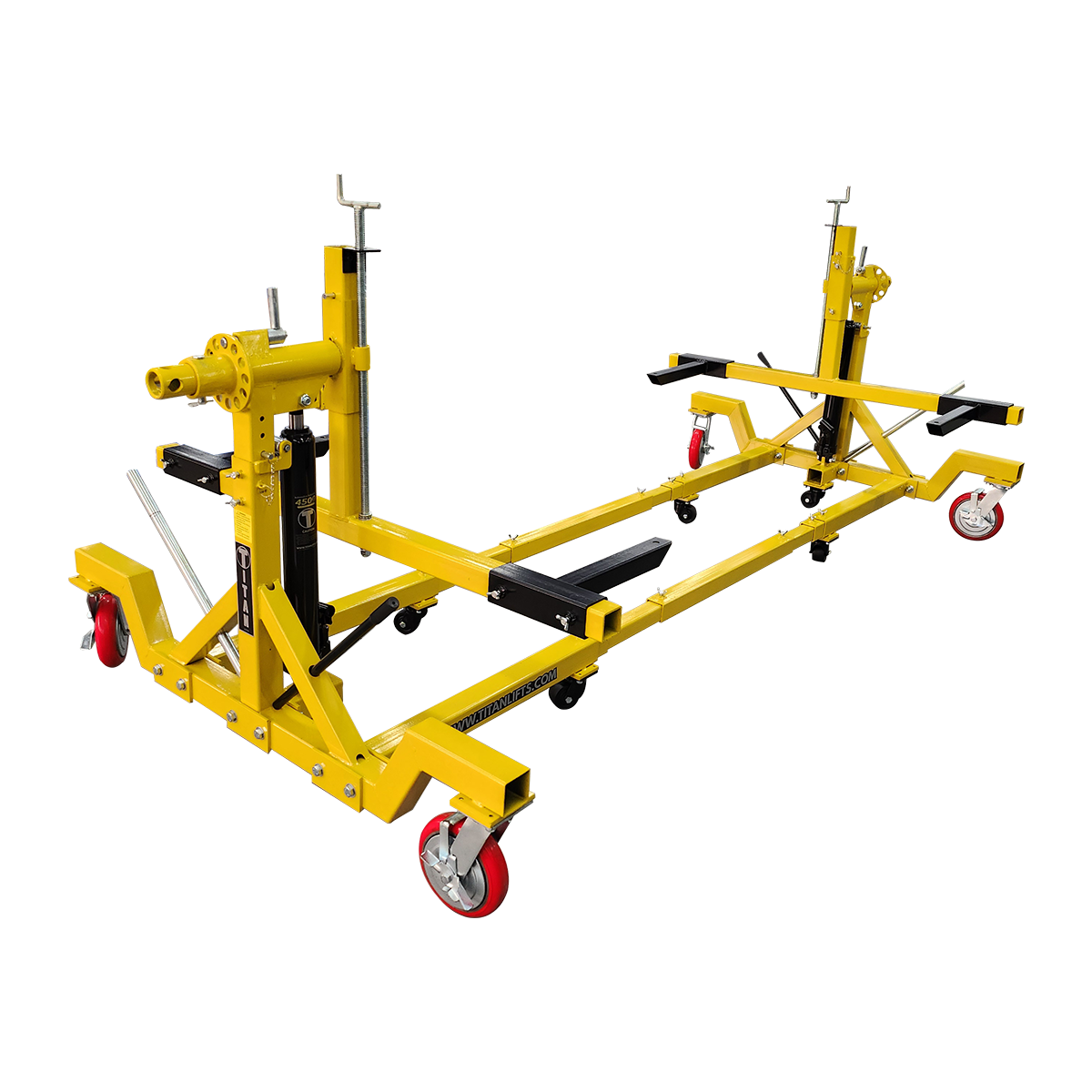

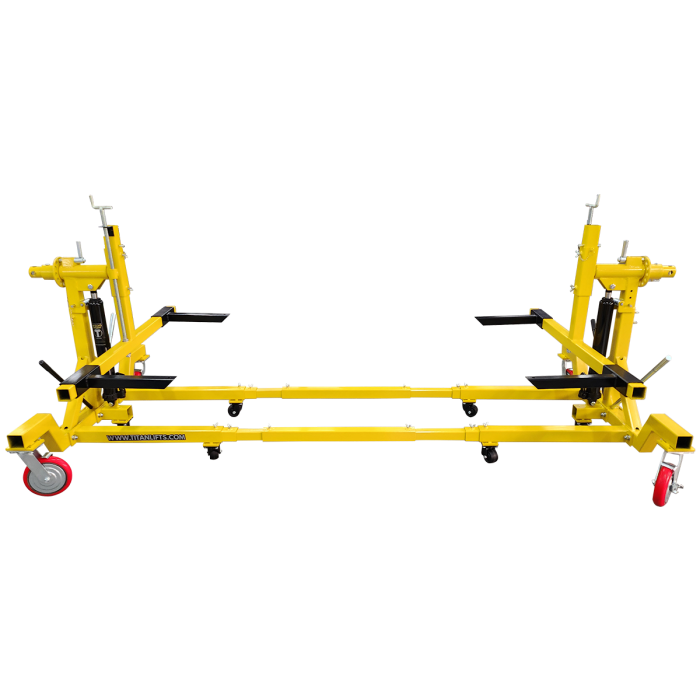

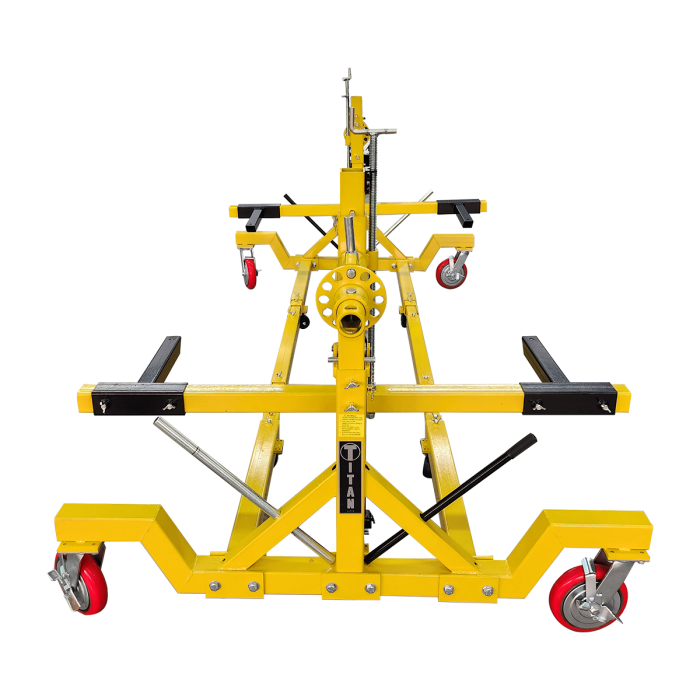

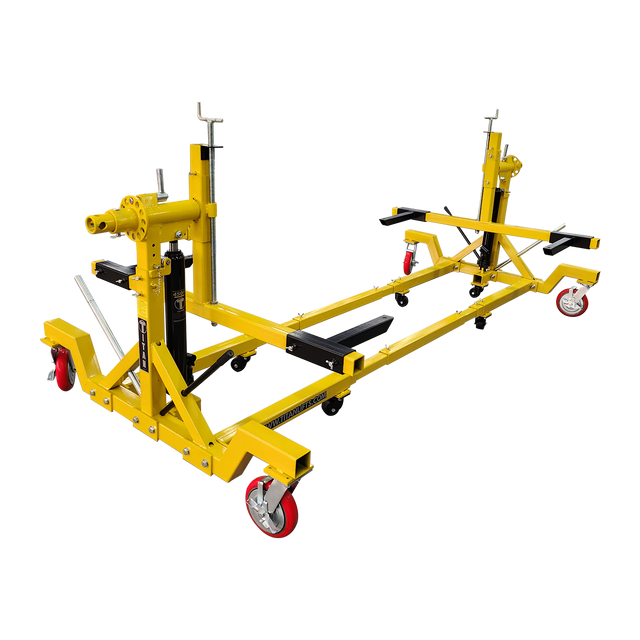

Titan ROT-4500-G2 Automotive Rotisserie

Being in the automotive industry, we understand the importance of our tools and equipment, especially when it comes to automotive refinishing. With it’s robust 4500lb capacity, our ROT-4500-G2 is the standard by which all other vehicle rotisseries should be judged.

The all new dual connecting rods supports and strengthens your load capabilities. The two hydraulic cylinders effortlessly raise the lifting cradles to the desired working height which makes getting to those hard to reach places a breeze. The dual hydraulic cylinders effortlessly raise the lifting cradles to the desired working height which makes getting to those hard to reach places a breeze. The ROT-4500-G2 can handle just about any chassis configuration you throw at it when utilizing our optional mounting adapters.

For safety, we have included (4) 8" locking casters that are designed to roll effortlessly without marring your shop floor. Another accessory item that we offer for the ROT-4500-G2 is the Rotisserie Leg kit which is used to help stabilize the load when rotating the chassis or body 360 degrees. The durable powder coated finish will withstand the toughest abuse. If you are looking to start a restoration project or already run a full-time body shop, ROT-4500-G2 is an economical solution that will keep you working smarter, not harder.

Specifications:

•    Weight Capacity-4,500 lb
•    Max Height-49"
•    Min Height-21"
•    Max Length-260"
•    Min Length-121"
•    Width-58.5"
•    Width (with leg kit attached)-81"
•    Max Length Between Support Arms-238"
•    Min Length Between Support Arms-99"
•    Max Project Width (dependent on balance point)-80" - 88"
•    Hydraulic Cylinder Travel-17"
•    Acme Screw Travel-8.5"
•    Height from ground to center of rotating axis-37" - 54"

Optional Accessories (Sold Separately)

• ROT-LK | Titan Stabilizer Leg Kit
• ROT-LSA | Titan Leaf Spring Adapter Set
• ROT-AMP | Titan Adapter Mounting Plate Set
• ROT-UBA | Titan Unibody Adapter Set
• ROT-VA | Titan Valance Adapter Set

Shipping

•    Shipping Length- 64"
•    Shipping Width- 41"
•    Shipping Height- 20"
•    Shipping Weight- 615 lb
