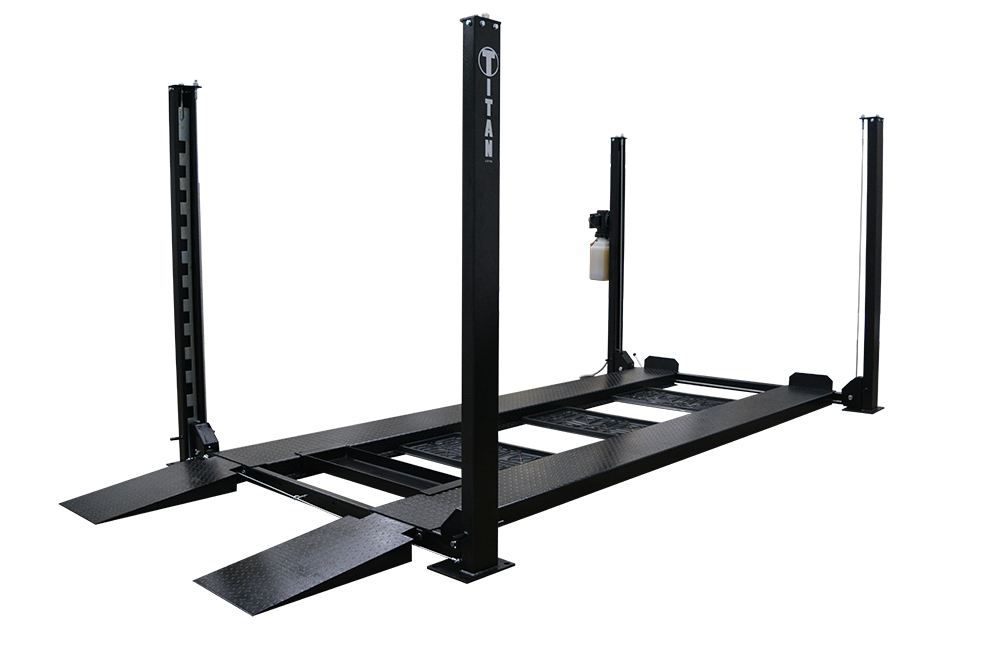

Titan SDPL-8000 4-Post Lift

To Save on Shipping Cost Call 800-837-3818 For Local Pickup

The Titan 4 post parking/storage lifts are ideal for automotive enthusiasts or if you just need extra space in your garage. They are heavy duty with one piece diamond plated runways, 3 inch cylinder and a durable scratch-resistant powder coated midnight black finish.

They come with a 110 Volt power unit easily adaptable to most residential applications. Heavy duty multiple position locking mechanism and enclosed carriage arms to ensure maximum safety. Easy operation lock handle is located by power unit minimizing any bending or squatting. There are many options available to personalize the lift to your needs. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Features:

• 8,000 lb lifting capacity
• Aircraft quality cables rated at 14,500 lb
• 18-5/8" wide runways formed with one-piece 3/16" non-skid diamond plate
• Single point safety lock release handle located near power unit
• Primary locking system with secondary slack safety lock
• Large 3" diameter cylinder
• Powder coated in midnight black finish
• Diamond plated steel approach ramps
• 1 Year Electric/Hydraulic Warranty
• 5 Year Structural Warranty

Included:

• Caster Kit
• Jack tray
• 3 Drip Trays
• Steel Ramps

Optional (Sold Separately):

• Sliding Jacks Available
• Aluminum Ramp Upgrade

Specifications:

• Center of Baseplates - Width | 93"
• Outside of Baseplates - Width | 103-1/2"
• Outside of Columns - Width | 100-3/4"
• Width Between Columns | 94-3/8"
• Drive-Thru | 80"
• Between Runways | 37-1/2"
• Out to Out - Runways | 74-3/4"
• Length of Runway | 165-1/2"
• Width of Runway | 18-5/8"
• Total Length of Ramp | 37"
• Baseplate Dimensions | 10-1/4" x 12"
• Column Dimensions | 3-1/4" x 6"
• Center of Baseplates - Length | 163-1/2"
• Outside of Baseplates - Length |175-1/2"
• Outside of Columns - Length | 169-3/4"
• Inside of Columns - Length |157-3/4"
• Overall Length w/Ramps | 208-5/8"
• Lifting Height | 4-3/4" - 74-3/4"
• Overall Height | 86-1/4"
• Lifting Capacity | 8,000 lb
• Net Weight | 1,643 lb
• Power Unit | 110V-120V, 60Hz, 3HP/Single Phase, 3 prong power plug, 20AMP

Shipping Info:

• Shipping Length | 171"
• Shipping Width | 22"
• Shipping Height | 39"
• Shipping Weight | 1,720 lb

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off of the truck.)
