Advantages of Wheel Crushing Include:

• Reduces the cost of tire disposal

• Eliminates difficult and costly manual separation of tires

• Reduces transport weight, recycling tires only

• Reclaims valuable scrap steel for recycling re-sale

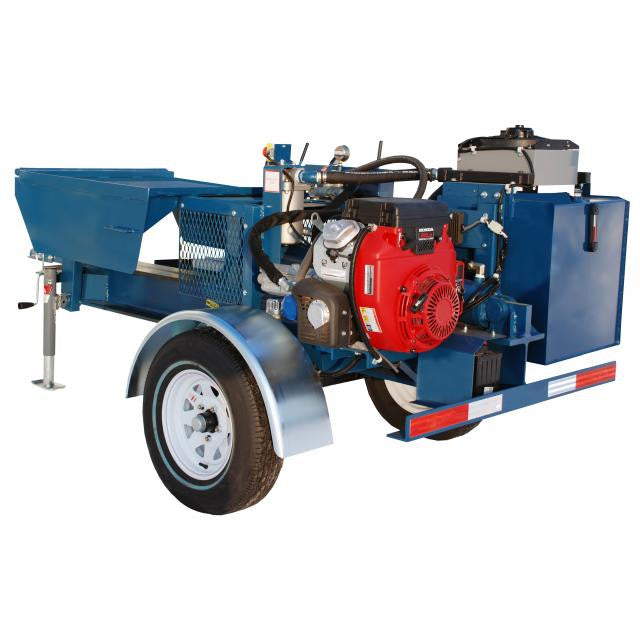

Frame:

• 8’ x 48’ft #1 Beam x 8 ft long

• 3”x 2” Rectangle Tubular Cross Axle w/3500# Hi Speed Axle Bearings

• 13” Diameter Tires mounted on white spoke wheels

• 2” Ball size trailer coupler w/heavy axle safety chains

• Safety cage angle iron support w/10 gauge expanded metal mesh

• Heavy duty frame uprights to provide to 3-point wheel crushings

• Heavy duty sliding ram assembly to contact and bend wheels

• Power Supply

Hydraulics:

• 18HP Briggs Stratton electric start engine standard Vanguard industrial series (Electric Version Optional)

• Direct mounted 28 GPM two-stage hydraulic gear pump, coupled to engine with flexible couple standard

• 28 Gallon Hydraulic reservoir w/internally mounted suction strainer and filter breather with sight gauge and temperature gauge

• Hydraulic filter (10 micron) w/replacement element

• Sliding post crushing assembly is powered by a 5” diameter, 30 stroke industrial welded hydraulic cylinder

• Sliding post assembly is operated by one 35 gallon capacity single spool hydraulic valve with detent return. Operating pressure preset at 2900 PSI

• Hydraulic gauge monitors operating pressure

• Hydraulic oil is dextrin type II ATF

• Hydraulic oil cooler w/dc fan motor


Specifications:

• Hydraulic Oil: 28 Gallon Type II modified transmission oil

• Engine: 18HP Briggs Stratton, Twin
• Electric Start Standard, Kubota
• Diesel 20.6 HP Optional

• Capacity: Wheels and Tires up to
• 32” Outside Diameter

• Up to 150 Wheels per hour

• 54,000 Pounds crush force

• Length: 122"

• Width: 60"

• Height: 48"

• Shipping Weight: 2950 lbs
