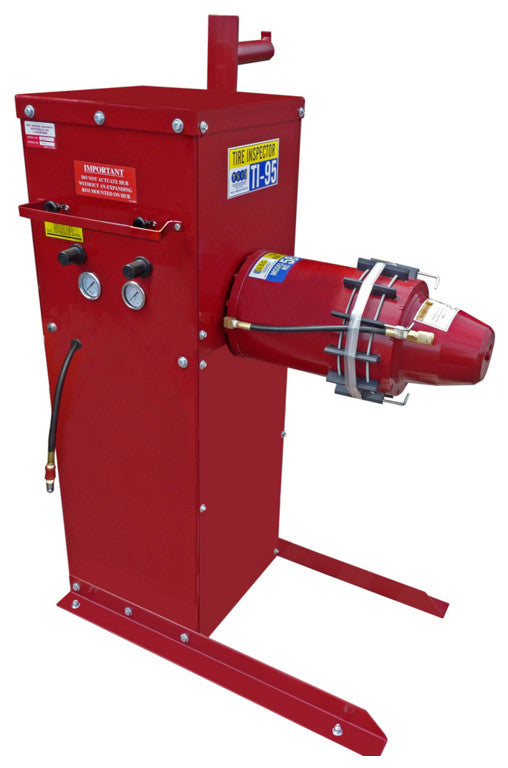

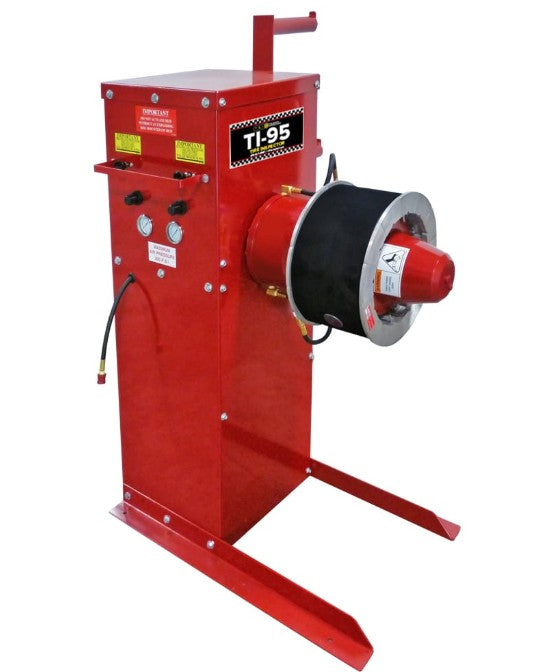

TSI TI-095 Tire Inspector

The TI-95 Tire Inspector tests all tires for sidewall, tread or bead leakage. The machine provides quick inspection and is very easy to use. Tire and hub assembly rotates easily, and all pneumatic controls are located on the side of the machine for easy operation. The TI-95 has a rigid base and stand that supports all available rim sizes mounted on the hub assembly. A standard 1/4”, 90psi air line operates the unit and no electricity is required. Unit inflates tires to 30 PSI to check for air leaks.

Advantages At A Glance:

• Easy 3 step system. Mount tire on expanding rim, open expand valve and open inflate valve.
• Expanding rim assemblies accommodate 13” to 24.5” tires (available separately).
• Mounted tires rotate smoothly and easily on the heavy-duty 2” pillow block bearings.
• The rugged stand and base includes a storage rack to store 3 different expanding rims.
• No electricity required.

Tire Inspector Features:

• The machine has a heavy-duty rigid base and stand.
• The stand supports the expanding hub along with all the hub pneumatic controls.
• TI-095 has a storage rack to store 3 different sizes of expanding rims.
• TI-095 is very quick to use – simply place the tire on the expanding rim – open the rim expand valve – then open the tire inflate valve & the tire is ready to rotate & test. (Inflates Tire to 30psi)
• TI-095 – By using different size expanding rims (Purchase separately, see below) tire sizes from 13 inch through 24.5 inch can be inspected.
• TI-095 – Tire and hub assembly rotates very easy on heavy-duty 2-inch pillow block bearings.
• TI-095 –All pneumatic controls are located on the side console of machine for ease of operation.
• Power requirements - 1/4 I.D. air hose w/90 PSIG (No electricity required).
• Includes 9.410, 14"-17" Rim

Specifications:

• Dimensions: 36" wide x 39" long x 62" tall
• Weight: 480 lbs

PLEASE NOTE IMPORTANT INFORMATION:

• This TSI Inspector ships by truck and extra shipping charges will apply to ship to a non-commercial address.

Click Links Below for Additional TI-095 Information:

• TI-95 Operations Manual
• TI-95 Parts List and Assembly
• Expandable Hub Assembly
• Expandable Rim Repair Parts List

Additional Expanding Rims:

• 13-16in = PN 8.510
• 14-17in = PN 9.410 - Included with Machine
• 14-17in Extra Wide = PN 14.710
• 17-20in = PN 10.410
• 17-20in Extra Wide = PN 172010
• 20-22.5in = PN 11.410
• 22-24.5in = PN 12.410
• 20-22.5in = PN13.410
