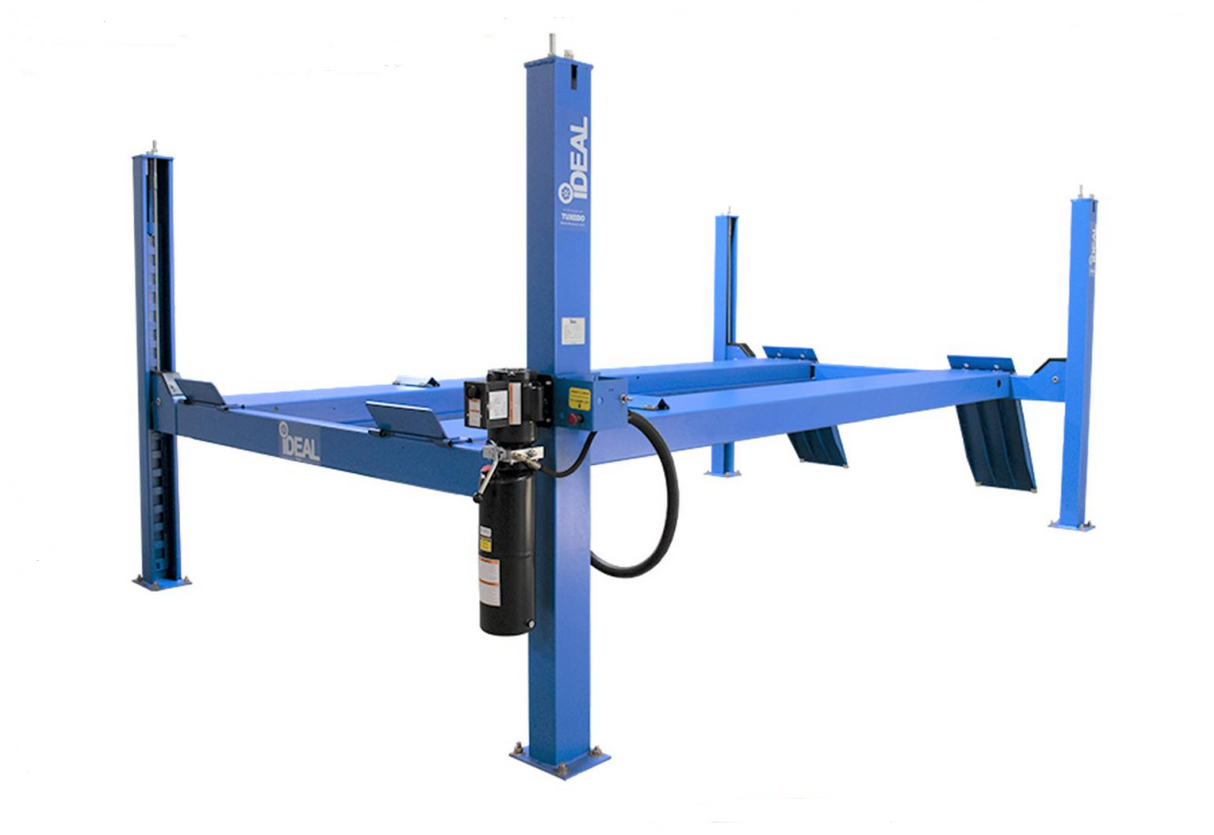

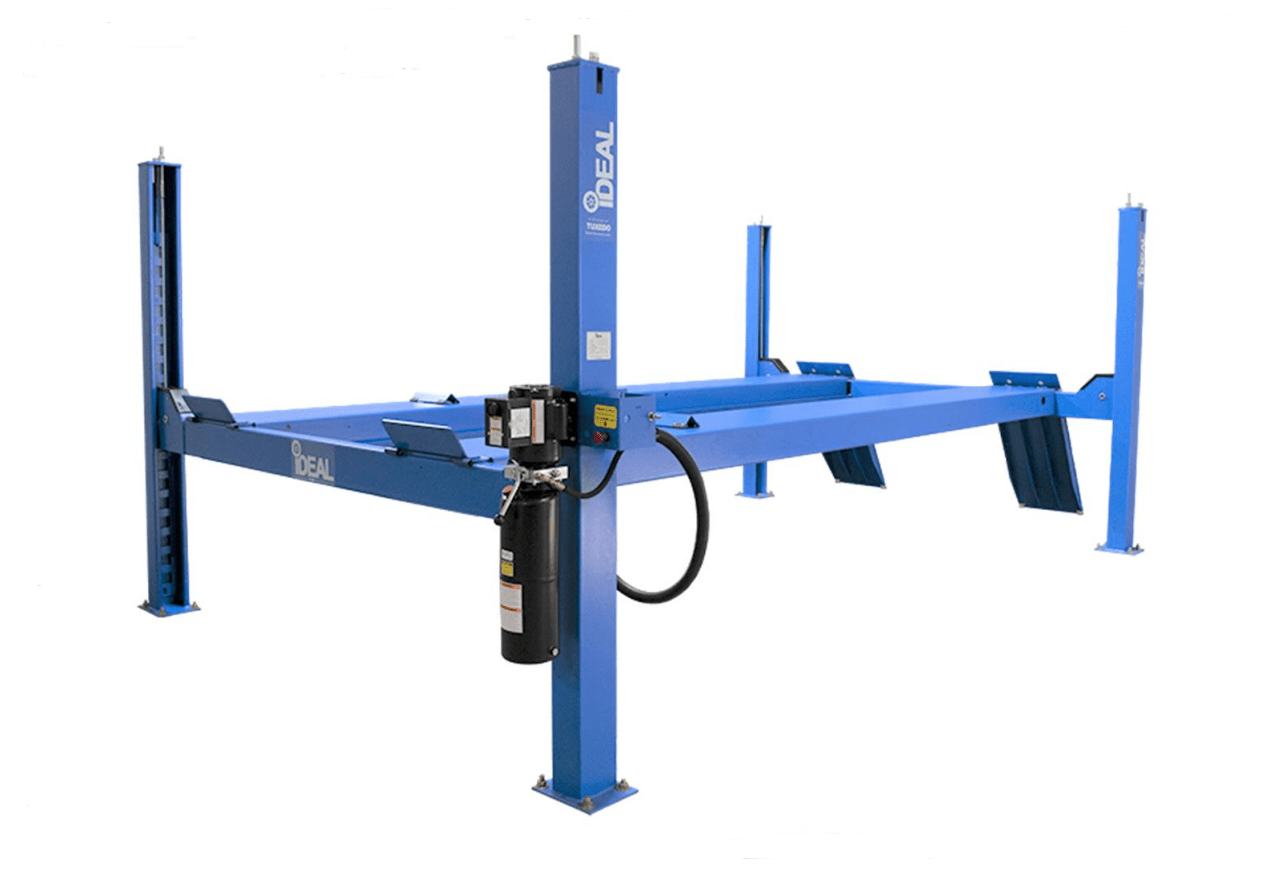

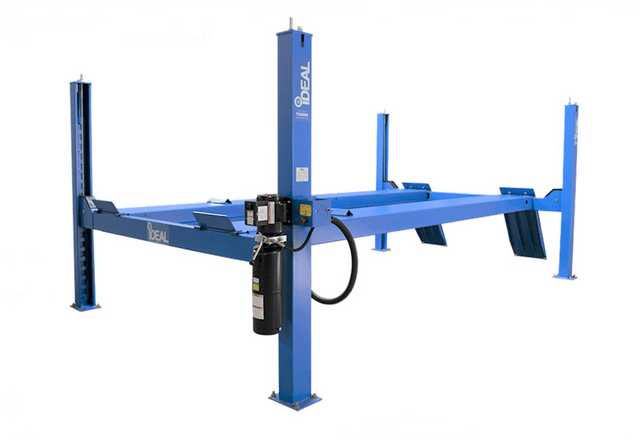

Tuxedo FP14KC-X 14,000lb Commercial Service 4-Post Lift
The iDEAL FP14KC-X 14,000 lb. Four Post Commercial Service Lift is a high-performance closed front, cable pull vehicle lift designed for Cars, SUVs, Vans & Trucks. The FP14KC-X Service Lift includes the latest in design & safety features including, narrow & wide runway mount positions, extended rise height for greater undercarriage vehicle access, concealed hydraulic / mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to extended life of the lift. Easy lift operation is provided with single point pneumatic lock release & high quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KC-X modular design provides the flexibility to extend the runways for servicing longer vehicles, while also providing the ability to convert into a high-quality Alignment Lift quickly & easily! The standard provided powder coat finish, 20” wide runways, adjustable lock stops for easy runway leveling and optional power unit mount positions complete the package for a premium, high quality service lift, all at an unmatched value!
Features:
- 14,000 lbs capacity
- High performance commercial service lift
- Durable, high quality cable lift system
- Extended right height
- 182.5" max wheelbase
- 18 locking height positions
- 20" wide runways
- Narrow & wide runway mounting positions
- Single point pneumatic lock release
- Fully adjustable lock stops for easy leveling
- Slack cable safety devices
- Self-chocking approach ramps w/nylon rollers
- Wheel chocks (1pr)
- Durable powder coat finish
- Able to extend runways 24" w/runway extension kit
- Easier install & services as no need to remove cross rail pulleys for cable access & replacement
- Grease zerks applied for all cable pulleys & shaft assemblies
- High quality duro power unit w/UL listed motor & switch components
- Quickly converts to alignment lift w/addition of 'bolt on' alignment kit
Specifications:
- Overall length w/ramp | 252-1/2"
- Overall width (without power unit) | 131-7/8"
- Overall width (with power unit) | 142"
- Overall height | 92-1/2"
- Max rise height | 77-1/2"
- Min height | 7-7/8"
- Width between posts | 116-1/4"
- Length between posts | 43" or 46"
- Width of runways | 20"
- Max wheelbase | 182-1/2"
- Ramp length | 44"
- Max clearance under runway | 69-5/8"
- Drive-thru clearance | 96"
- Base plate | 10-1/2" x 9"
- Power requirement | 220V - 20 amp - 1ph
- Ship weight | 2690 lbs
- Min bay size | 16' x 25'
