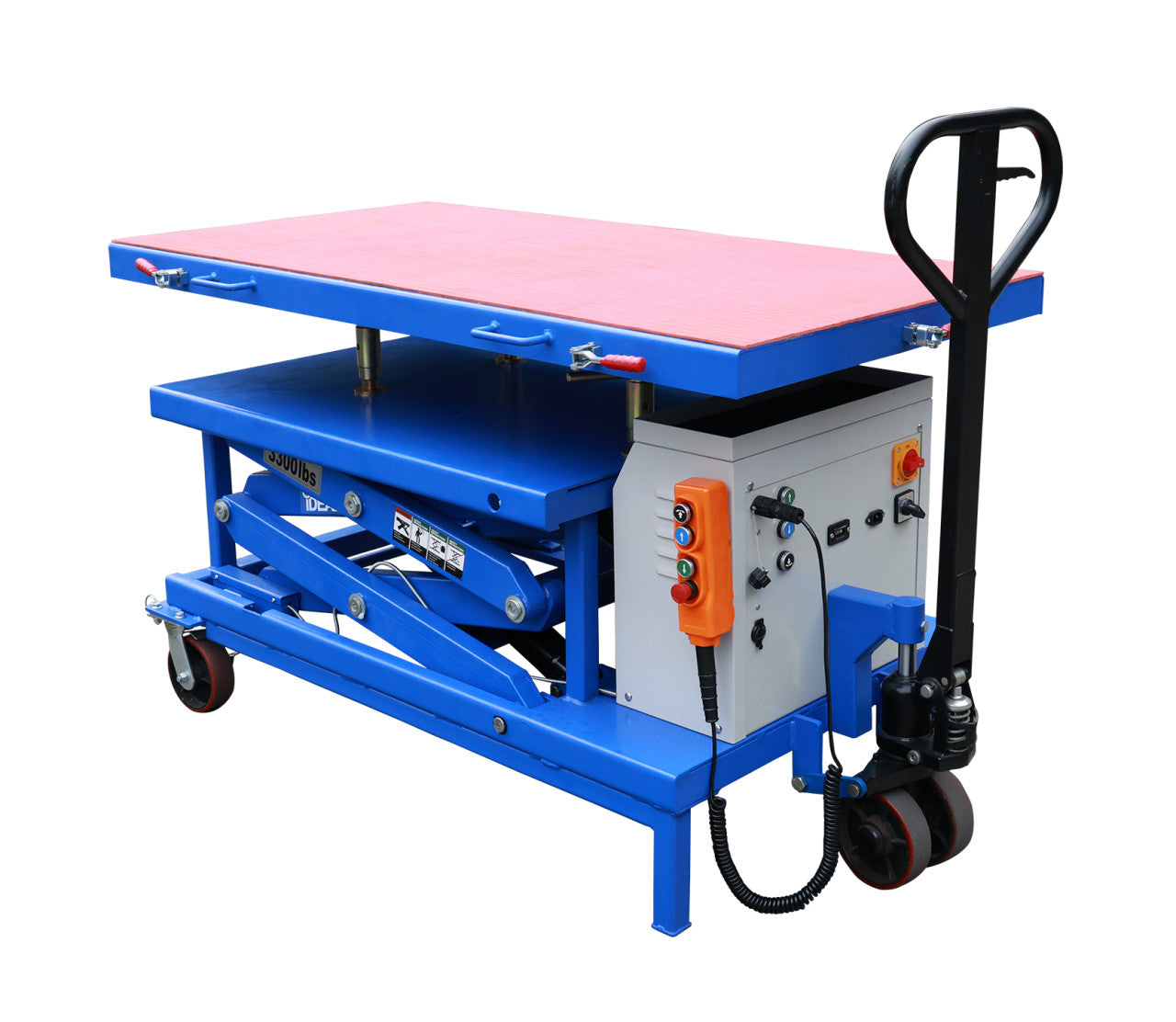

Tuxedo iDeal LT-EV3300DC-X EV/Hybrid Component Lift Table

The iDEAL LT-EV3300DC-X is a 3,300 lb. portable, high-rise commercial / industrial grade 12VDC battery powered electric-hydraulic lift table, incorporating a ‘multi-adjustable’ EV platform primarily designed to assist with controlled lifting & lowering tasks to safely remove, replace or service heavy vehicle components, especially for electric & hybrid vehicles, such as EV battery packs, motors, powertrain assemblies, or other similar heavy components. The LT-EV3300DC-X comes standardly equipped with a durable EV insulated platform that includes a multi-directional ‘sliding’ platform with latch clamps, along with tilt & height adjustments, while also incorporating a fully operational remote hand controller & control box panel buttons for dual control function operations. Also included is a high quality deep-cycle 12VDC sealed battery, integrated battery charger and 12VDC auxiliary outlet port. In addition, the iDEAL EV 3300 lb. lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel & directional poly casters, utility / tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders and four rubber pads. Optional 12VDC LED Spot Light with magnetic base also available.

Features:

• 3,300 lbs capacity
• Innovative high quality portable scissor lift design
• Efficient and safe method to install or remove heavy vehicle powertrain components ie: battery packs, motors and powertrain assemblies
• Dual DC electrical operation using control panel or magnetic hand control buttons for ease of lifting, lock and lowering
• 12VDC battery operation w/integrated 110V battery charger
• Insulated, multi-directional sliding EV platform w/adjustable latch clamps
• HD jack screws for precision ‘tilt and height’ platform adjustments
• Double scissor HD design w/dual HQ hydraulic cylinders
• Integrated utility/tool tray and sub-platform storage area
• Portability ease with pallet jack operation w/6” poly wheels
• Durable ‘directional and locking’ 6” front poly swivel casters
• EV platform size 31.5”w x 59”l
• 3 locking height positions
• Overall size 67.3”L x 35.4”W
• 20S rise and 22S lower time
• Includes 12VDC battery and 4 rubber pads (6.4”L x 4”W x 1.45”H)
• Durable powder-coat finish

Specifications:

• Lift Model | LT-EV3300DC-X
• Capacity | 3,300 lbs
• Overall Length | 67.3”
• Overall Width | 35.4”
• Max PTP Platform Height | 72.6”
• Min PT Platform Height | 35.4”
• Dolly Hand Bar Height | 47.2”
• EV Platform Size | 59”L x 31.5”W
• PT Platform Adj. Tilt Angle (+/-) | 4° - 8°
• PT Platform Locking Heights | 49”, 61”, 68”
• Lifting/Lowering Rate | 20S / 22S
• Power Supply (Battery Charger) | 110VAC – 1.5A – 1PH
• DC Power Unit | 12VDC – 120A – 2.15HP
• Ship Weight | 1090 lbs
