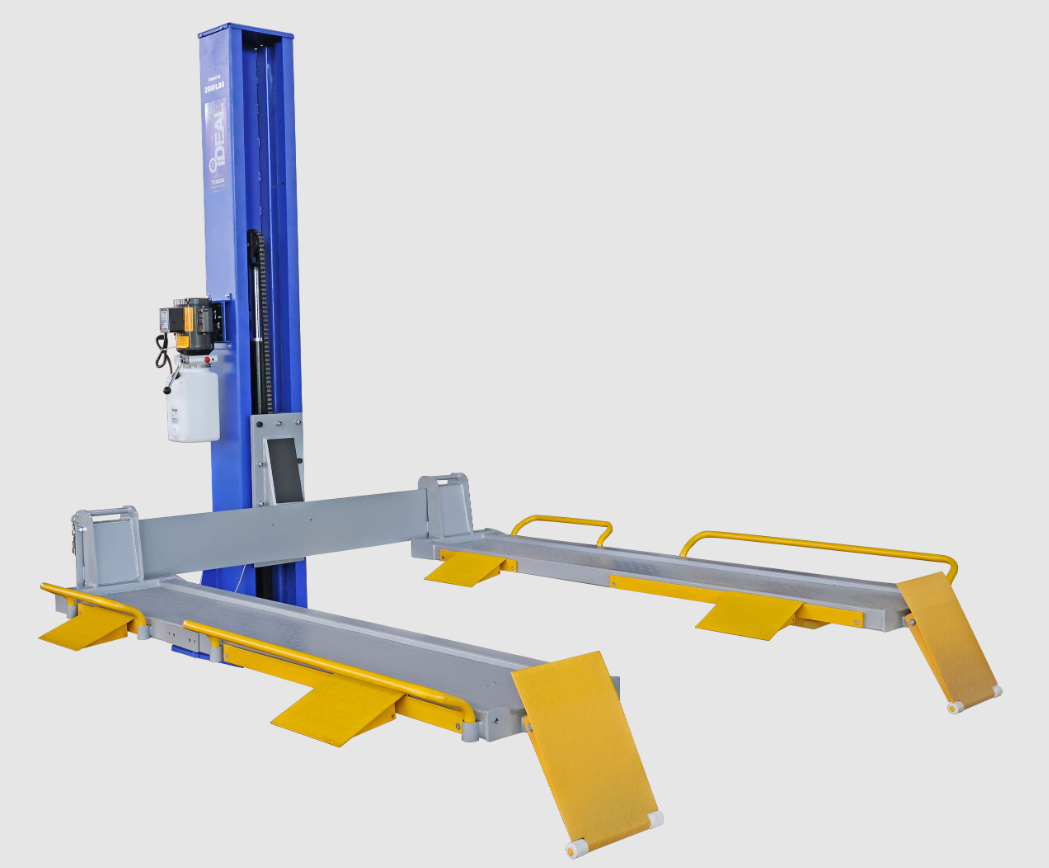

Tuxedo iDEAL SC-2K-UTV-X Single Column UTV & Mower Storage/ Service Lift

The iDEAL SC-2K-UTV-X is an innovative 2,000 lb. single column, high-rise ‘multi-use’ storage & service  lift,  incorporating ‘multi-adjustable’ platform design with multi-directional front & side vehicle loading for most ATV’s, UTV’s, Golf Carts & Riding & Zero Turn Mowers.  The low-profile multi-adjustable platforms incorporate spring-loaded ‘quick release / locking nylon rollers & brackets mounted to the underside of each platform, making adjusting the platforms width’s ‘quick & easy’.  Each platform is secured to the bolster via HD lock pins & retainer brackets once the desired platform width is set.  For additional space saving benefits, the power unit can be easily mounted to either the front, side, or rear of column providing the best fit in a shop or garage!  In addition, iDEAL SC-2K-UTV-X 2,000 lb. Lift comes standard with durable powder-coat finish, 8ea multi-position side ramps, wheel stop ‘pivot’ ramps with protective nylon rollers, quick removal tubular wheel stop bars for platform sides.  Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, HD hydraulic chain-drive cylinder and single point manual lock release with 20 differ locking height positions.

Features:

• 2,000 lbs capacity
• Innovative 'multi-use' single column dual adjustable platform lift design
• Ideal storage solution for most small to mid-sized atvs, utvs, golf carts, riding lawn mowers and zero turns
• Ability to easily load vehicles from either the 'front or side' of platforms
• Adjustable platforms provide undercarriage clearance to easily service most riding lawn mower decks, blades and utv/atv engine service
• Easily adjust and secure platforms to desired widths using integrated 'retracable' nylon roller brackets and 'quick release' bolster pins
• Extended rise height for increased storage and service clearances
• Alternative power unit mounting to front, side or rear of column
• 'Quick removal' outer wheel stop bars
• 8 ea steel 'quick adjust/multi-position' platform side ramps
• 2 es platform steel wheel stop 'pivot ramps' w/nylon rollers
• Smooth and reliable electric/hydraulic operation w/single point lock release
• Durable, high quality steel construction
• Low profile platform design
• 20 ea locking height positions
• Durable powder coat finish

Specifications:

• Lift Model | SC-2K-UTV-X
• Capacity | 2,000 lbs
• Width Overall | 102"
• Height Overall | 106.3"
• Depth/Length Overall | 130"
• Max Clearance Under Platforms | 76.8"
• Platforms Min Height | 4.7"
• Platforms Max Height | 81.3"
• Platform Width | 17.7"
• Platform Runway Width | 90.4"
• Adjustable Platform Widths (OD) | 52.8" to 84.6"
• Adjustable Side Ramps Widths (CL) | 35.4" to 67"
• Locking Positions | 20 ea
• Ship Weight | 1,624 lbs
• Power | 115-V - 20 Amp - 1PH

PLEASE NOTE IMPORTANT INFORMATION:

• This item ships by truck and extra fees apply if Residential Delivery is required. Please choose the option above Before adding to the cart! Please Note that Liftgate Delivery is NOT available for this lift.
