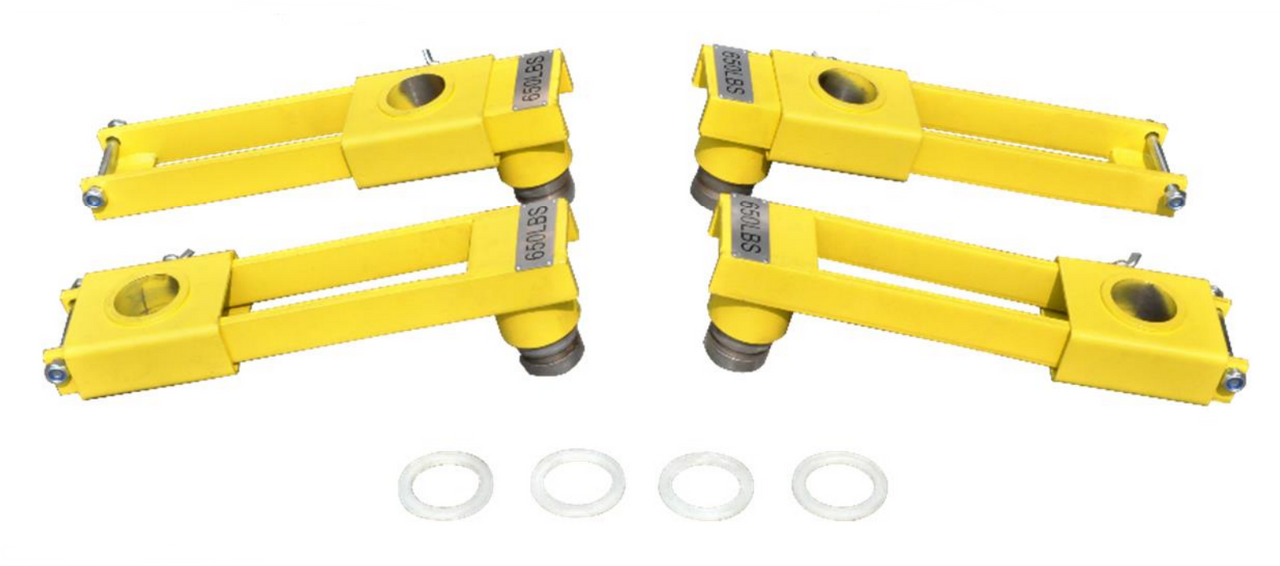

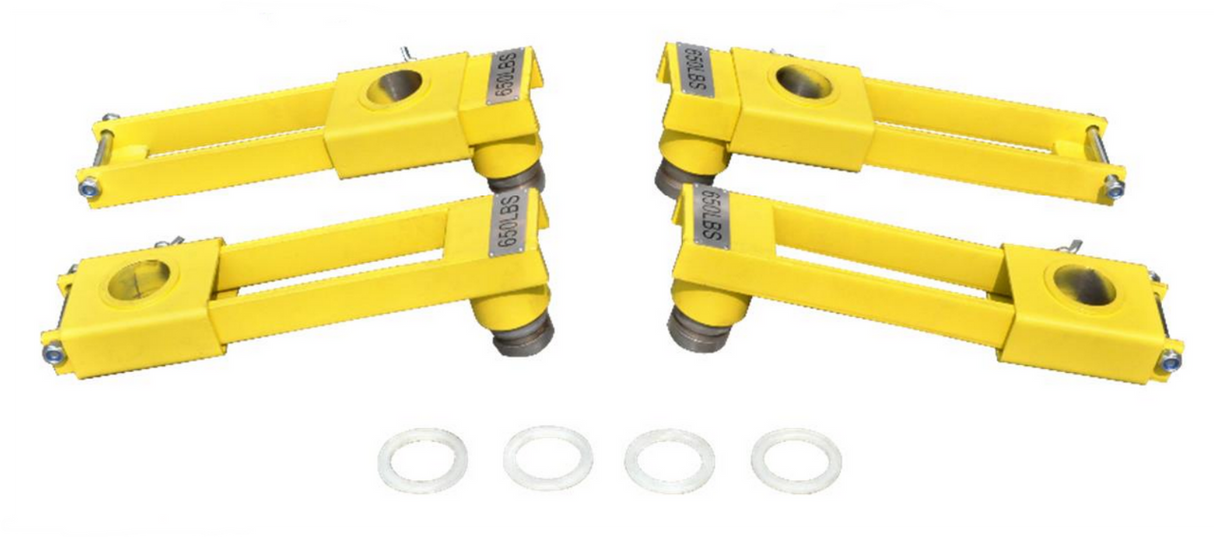

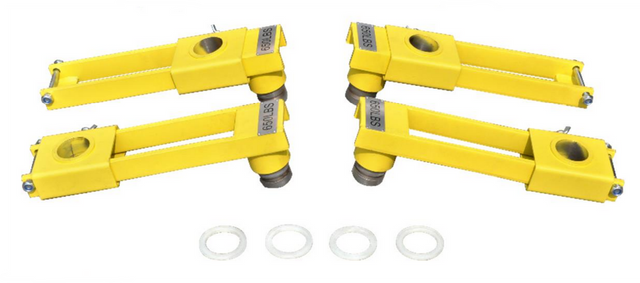

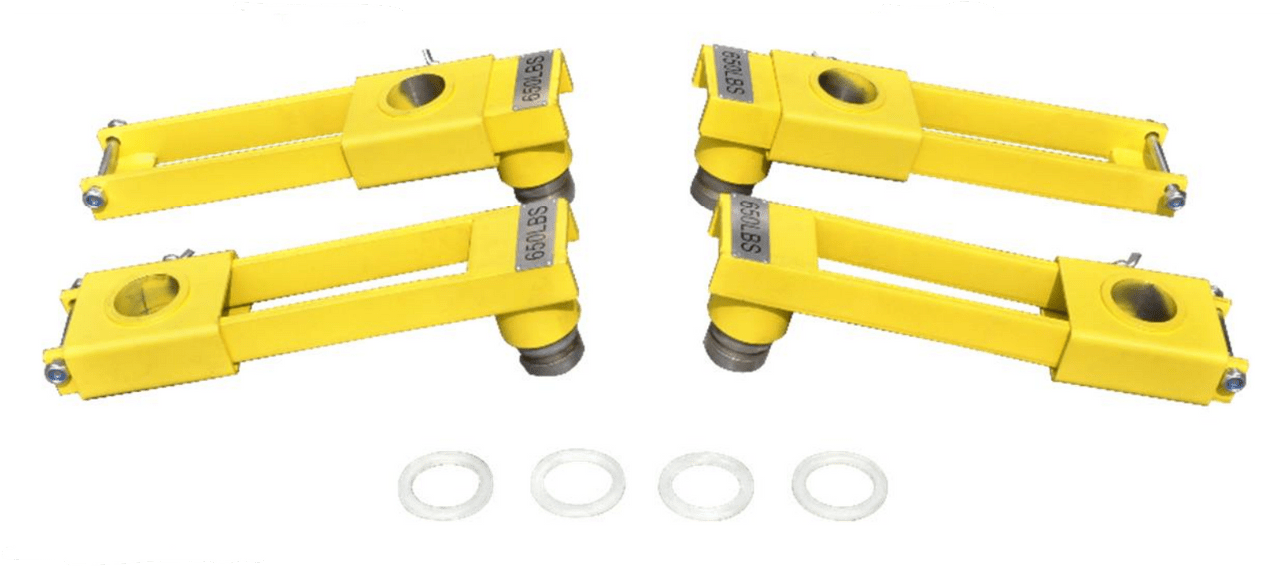

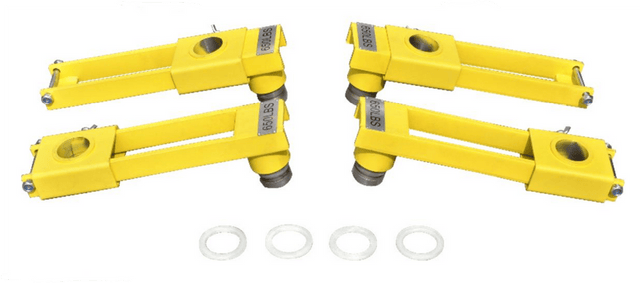

Tuxedo Ideal UTVKIT-MSC-6KLP UTV Adaptor Kit

The iDEAL UTV Adaptor Kit includes swing arm bracket adaptors specifically designed for the popular iMOBILE MSC-6KLP Single Column / Mobile Lift. The exclusive UTV Bracket Adaptor design reconfigures the MOBILE Lift to raise & perform general service for most lighter and smaller sized vehicles such as Utility, Power Sport, Recreational & Custom type vehicles. The UTV Bracket Adaptors extends the Lift Pads ‘inner’ radius lifting area, while providing 360º adjustable width rotation. The UTV Adaptor Kit provides ideal & safe lifting for Inspections, Servicing and even Showcasing for most Utility / All-Terrain Vehicles, Golf Carts & Dune Buggies with an overall vehicle weight up to 2,600 lbs.

Features:

• 2,600 lbs capacity (650 LBS per adator)
• Ideal for utility, power sport & recreational type vehicles
• Provides adjustable width / 360º bracket rotation
• Extends spin-up pad lifting range by 8.9” per arm
• Adjustable width / locking cradle base for lifting pads
• Kit design uses MSC-6KLP ‘spiin-up’ lift pads height extensions
• Quick & easy installation & removal
• Durable powder-coat finish

Specifications:

• Model number | UTVKIT-MSC-6KLP
• Total kit capacity (set of 4 ea) | 2,600 lbs
• Capacity per adaptor | 650 lbs
• Swivel pad adaptor height | 7-1/4" min, 10-1/8" max
• Swivel pad adjustable with range | 8-7/8"
• Overall dimensions | 14-3/8"l x 4"w x 3-1/2"h
• MS arm & adaptor pad range | 26-3/16" min, 82-5/16" max
• Shipping weight | 58 lbs
