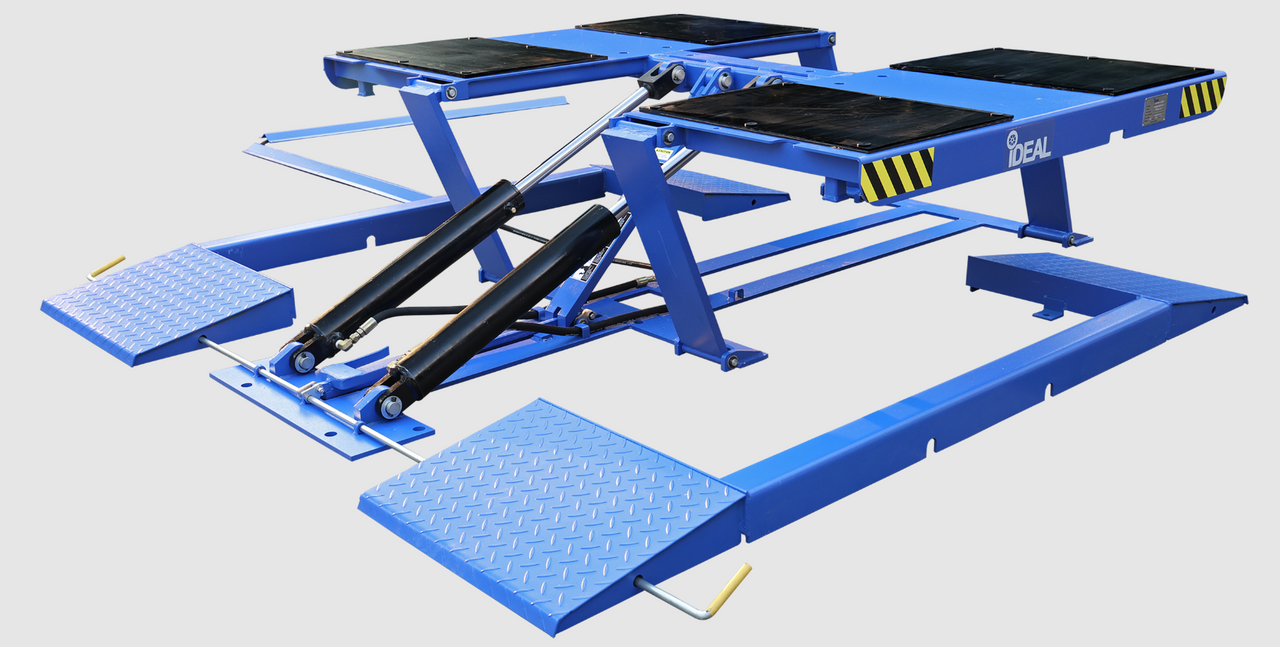

Tuxedo LR-10K-TLPAD iDeal Pad Lift

The iDEAL LR-10K-TLPAD is a 10,000 lb. low rise, high-performance commercial, vehicle frame contact lift designed for Cars, SUVs, Vans & Trucks. The LR-10K-TLPAD Pad Lift includes the latest in design & safety features including, twin hydraulic cylinders, three locking height positions with dual latch releases, durable rubber contact pads, protective hose covers and outer drive-over fixed platform frame allowing for wheel service repairs for a wider range of vehicles, including uni-body vehicles using the included multi-height adapters and rubber pads. The versatility of the pad lift design allows vehicles to be driven-on the pad lift in either direction, while also having the ability to position the hose & power unit to either side of the pad lift, allowing for the best fit in a shop or garage. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, mounted to a pedestal post combined with dual point manual lock release. Optional 220V DURO power unit is also available for faster speed of rise.

Features:

• 10,000 lbs capacity
• Low rise, commercial grade pad lift
• Ideal for express tire & wheel service
• Surface mount install configuration
• Integrated outer frame & ramps provide drive on and off clearance for wide vehicles
• Latch release handles on each side of lift
• Dual hydraulic lift cylinders
• Diamond plate ramps
• Durable rubber platform contact pads
• 3 locking height positions
• Metal hose covers 55"L (2ea)
• Standard 4 each HD multi-position height adapters & 4 each 1.5" rubber pads
• Power unit pedestal stand
• Durable powder coat finish
• Optional 220v power unit for increased lift speed

Specifications:

• Overall Length | 91"
• Overall Width | 88-5/8"
• Max Rise Height | 22-1/2"
• Min Rise Height | 4-1/4"
• Max Lift Height w/Tall Adapter | 30-3/4"
• Platform Pad Length | 51-1/4"
• Platform Pad Width | 24"
• Platforms Outer Width | 70-3/4"
• Platforms Forward Movement | 15"
• Platforms Locks Heights | 13-1/2", 17-1/4", 21-1/2"
• Lift Speed 115v/220v | 60s/36s
• Power | 115v - 20amp - 1PH
• Ship Weight | 1262 lbs
