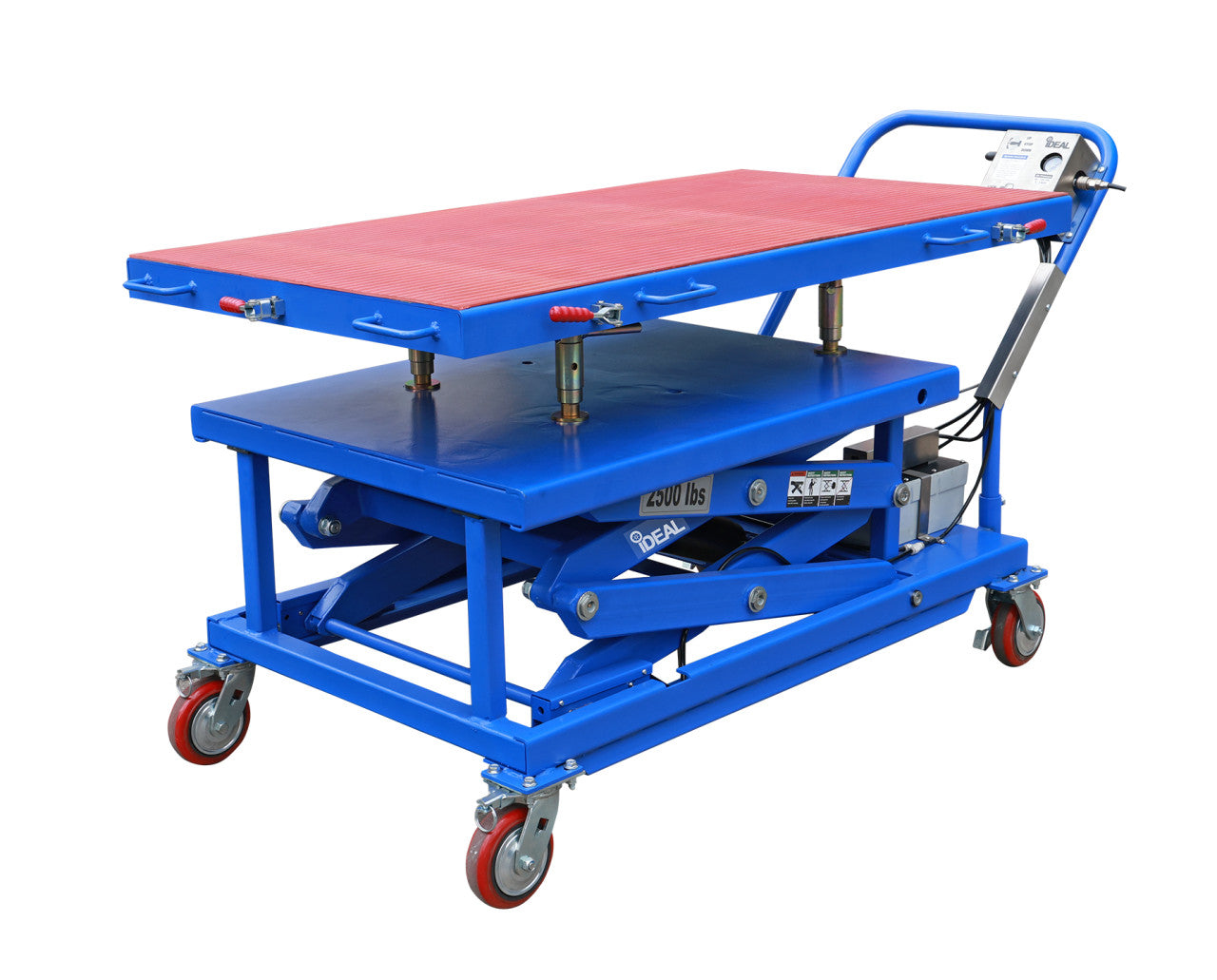

Tuxedo LT-EV2500AH-X iDeal EV/Hybrid Component Lift Table

Features:

• Innovative, high quality portable scissor lift design
• Efficient & safe method to install or remove heavy EV or Hybrid vehicle components, i.e: battery packs, motors & powertrain assemblies
• Full operation air system hand controls for lifting, locking and lowering
• Integrated air gauge with water separator
• Insulated, mulit-directional sliding EV platform w/6ea adjustable latch clamps
• HD jack screws for precision 'tilt & height' platform adjustments
• Double scissor HD design w/HQ hydraulic cylinder
• Integrated utility tool tray & sub-plaform storage area
• Durable 'directional & locking' 6" poly swivel casters
• Includees 4 each rubber pads (6.4"L x 4"W x 1.45"H)
• Durable powder coat finish

Specifications:

• Capacity | 2,500 lbs
• Overall Size | 74.6"L x 35.4"W
• EV Platform | 72.6" max, 35.4" min
• Hand Bar Height | 39.2"
• EV Platform Size | 59"L x 31.5"W
• EV Platform Adj Tilt Angle (+/-) | 4° to 8°
• EV Platform Locking Heights | 49", 61", 68"
• Lifting/Lowering Rate | 72S/33S
• Power Supply (Compressed A | 90 - 125 psi (6-9 bar)
• Ship Weight | 978 lbs
