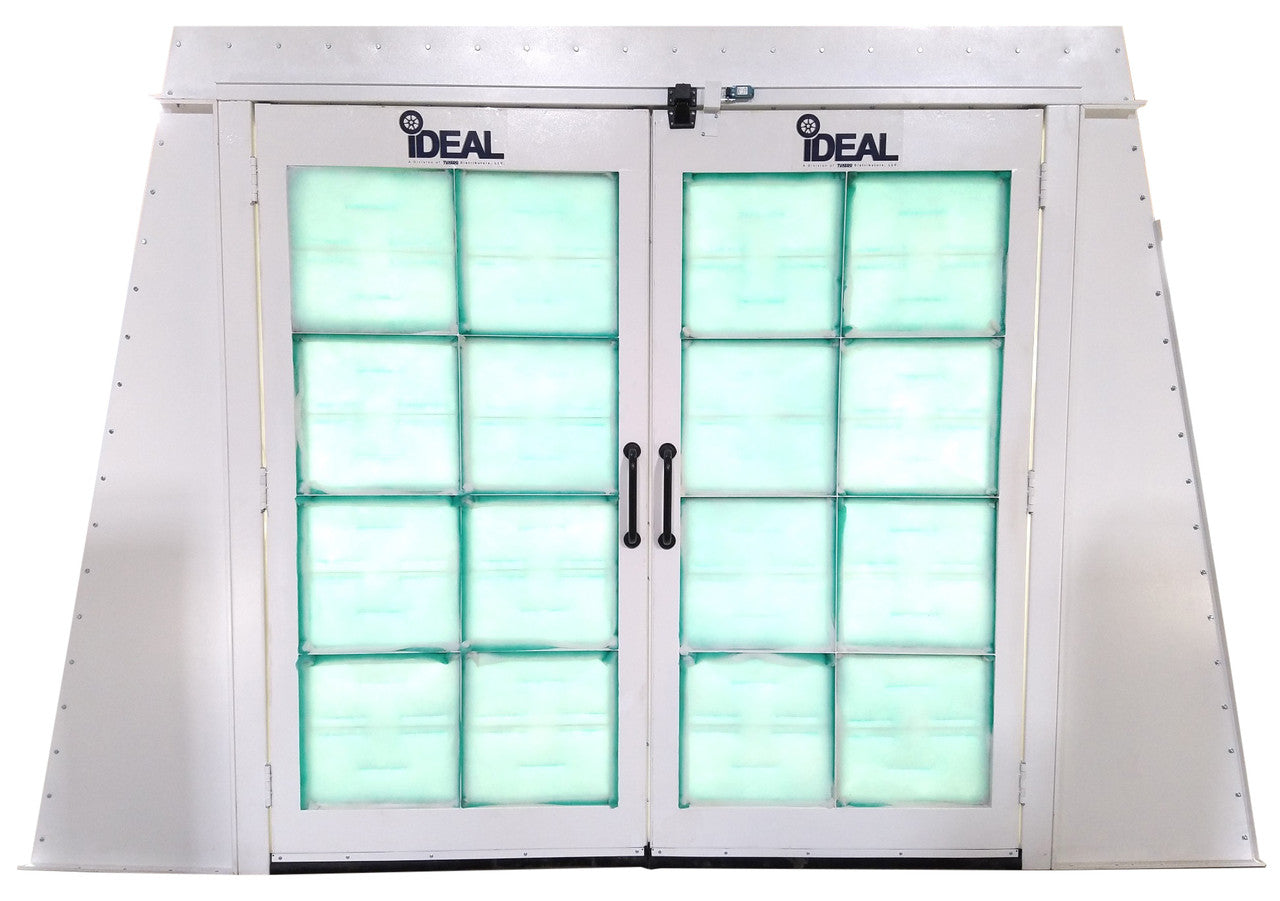

Tuxedo PSB-AFCF23B-AK AF Cross Flow Paint Spray Booth

The iDEAL ‘A-Frame’ Cross Flow Paint Spray Booth is an economic, commercial grade paint spray booth designed to provide superior lighting with optimal ‘cross draft’ air flow to produce a high-quality paint finish in a safe & controlled ventilated work area. The iDEAL Cross Flow Paint Booth is great for small to mid-sized Automobiles, along with being an ideal solution for Industrial or Wood finishing applications. The exhaust fan draws clean filtered air through the front entry door’s intake filters and flows towards the rear of the booth into the filtered exhaust chamber, and then discharged upwards through exhaust fan & ducting. The included bright white powder-coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Spray Booth, all at a great value!

Features:

• Durable bright white powder coat finish
• Included deluxe control panel, lamps and all electrical components
• Personnel door location options
• Heavy duty precision punched 18 gauge panels
• Optimal air flow
• Tilt panel design for optimal lighting coverage
• Convenient 5/16" bolt and nut assembly
• Monometer, solenoid valve, hardware and sealant included
• UL listed dayton 24" tube-axial exhaust fan w/spark resistant fan blades
• Premium AFC intake and exhaust filters
• 6 ea LDPI industrial lighting T-8 'vertical' light fixtures, 4 lamp
• 24 ea GE T8 florescent lamps- 32w, 5000k 4' length
• Double entry doors w/shutoff switch
• Personnel door w/veiwing window and shutoff switch
• Meets and/or exceeds all applicable OSHA and NFPA 33 regulations
• Easy to install, operate and maintain

Specifications:

• Inside dimensions | 22'6"l x 13'w x 8'6"h
• Outside dimensions | 25'4"l x 13'4"w x 8'10"h
• Fan/Motor | 24" tube axial fan, 3hp-3ph-230/460vac-60hz, non-spark NEMA rated
• CFM | 9,500 @ .5 static pressure
• Lighting  | 6 each T-8, 4 bulb light fixtures
