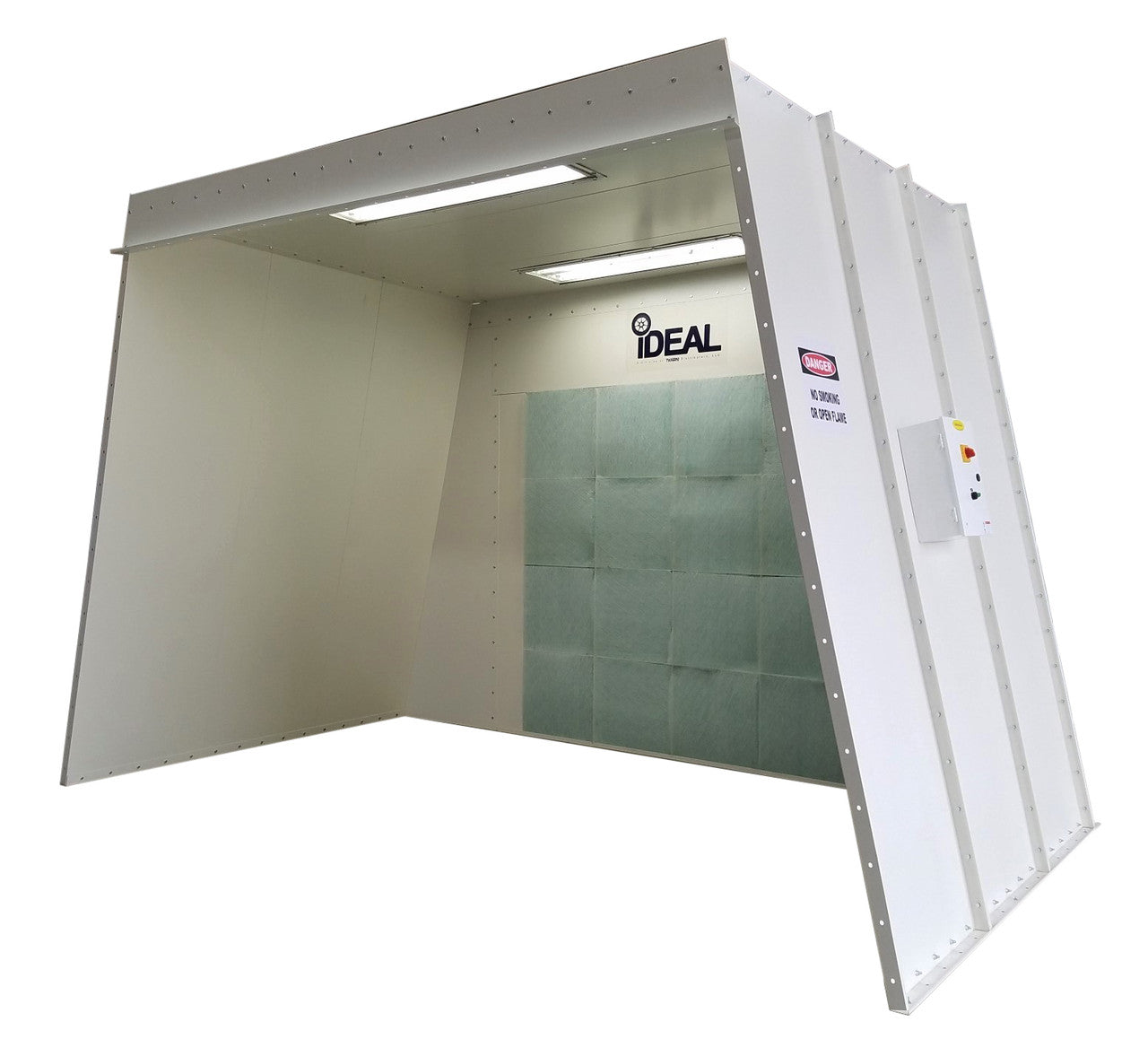

Tuxedo PSB-AFOFB1388-AK AF Open Front Paint Booth

The iDEAL ‘A-Frame’ Open Front Paint Booth is an economic, commercial grade open front paint booth designed to provide optimal ‘air flow’ with superior lighting for high-quality spray painting & finishing applications. The iDEAL Open Front Paint Booth is a great solution for industrial batch-type & automated production-type finishing systems. Air flows through the open front section of the booth, then passes through the work area towards the rear of booth into the filtered exhaust chamber. Filtered exhaust air is then drawn through the exhaust plenum & discharged upwards through the exhaust fan & ducting. Easily installed with heavy duty, precision punched 18 gauge panels allowing for quick nut & bolt assembly. Standard with bright white powder-coat finish, deluxe control panel, premium exhaust filters, hinged glass light fixtures & high-quality tube-axial exhaust fan to complete the package for a premium, high quality Open Front Paint Booth, all at a great value!

Features:

• Deluxe control panel included
• Durable bright white powder coat finish
• Heavy duty precision punched 18 gauge panels
• Optimal air flow
• Unique 'A-frame' commercial grade booth design
• Convenient 5/16" bolt and nut assembly
• All assembly hardware, menometer and sealant included
• UL listed 24" dayton tube-axial exhaust fan w/spark resistant fan blades
• Premium AFC exhaust filters
• Superior lighting with (2ea) LDPI industrial light fixtures w/inside access hinged glass door
• True 'daylight color'
• Meets and/or exceeds all applicable OSHA and NFPA 33 regulations
• Easy to install, operate and maintain

Specifications:

• Inside dimensions | 13'w x 8'6"h x 7'6"d
• Outside dimensions | 13'4"w x 8'10"h x 10'2"d
• Fan/Motor | (1 ea) 24" tube axial fan, 2hp-3ph 230/460vac-60hz, non-spark NEMA rated
• CFM | 7,893 @ .5 static pressure
• Light fixtures | (2ea) 48" 32w, 4 bulb light fixtures UL & ETL listed Cls1, Div2 - Groups A, B, C & D
• Lamps | (8 ea) T8 florescent, 32w, 5000k - 48"l
