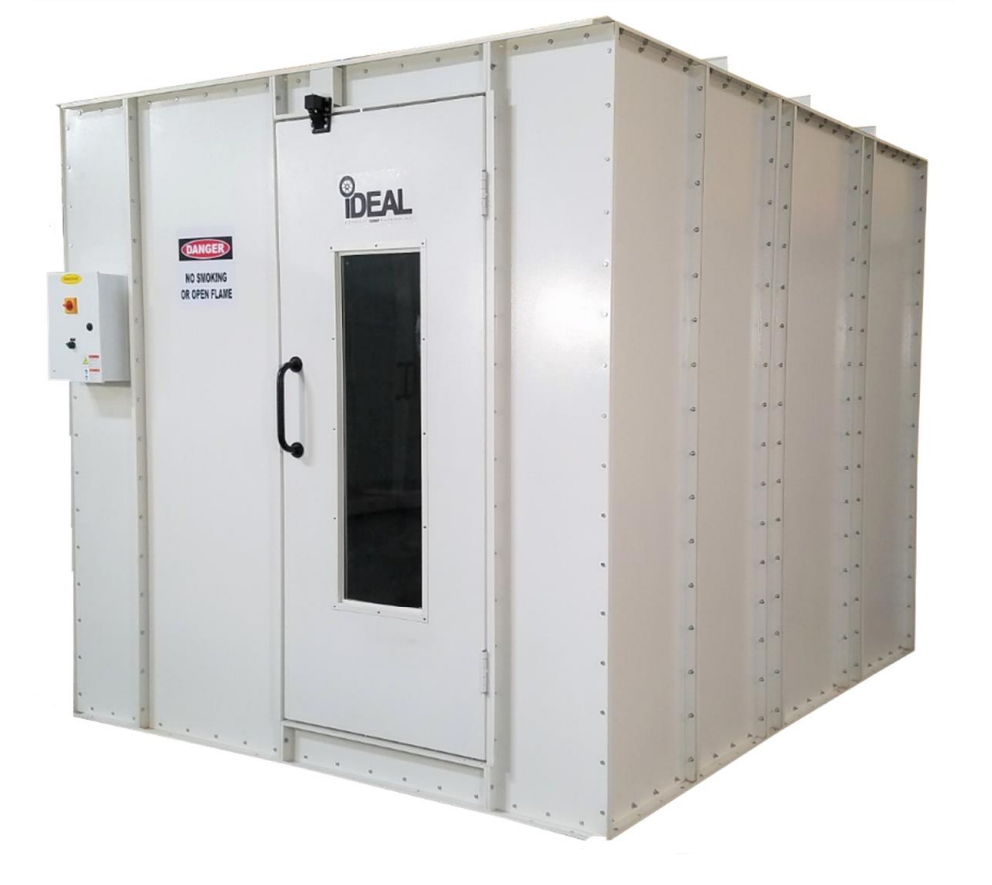

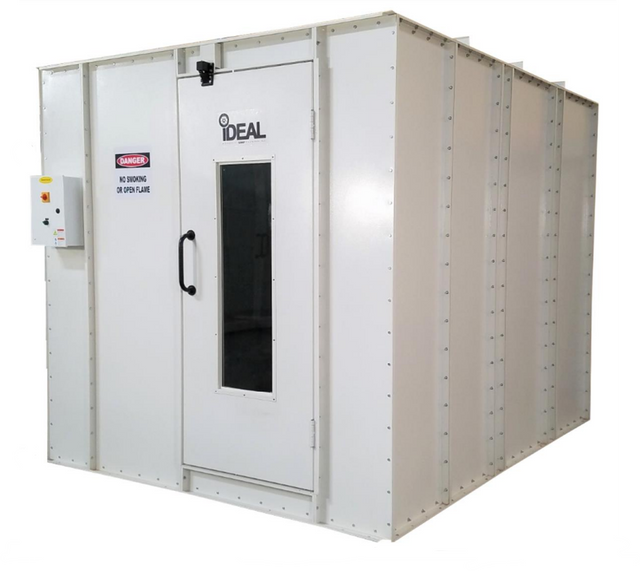

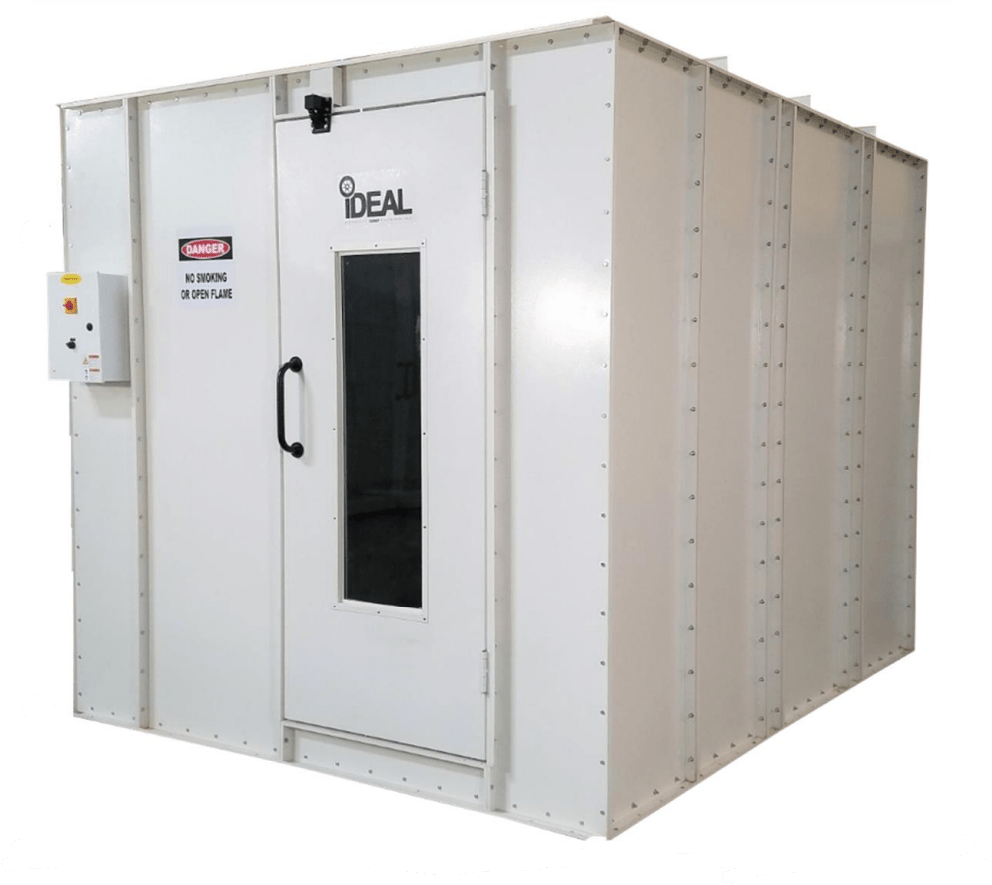

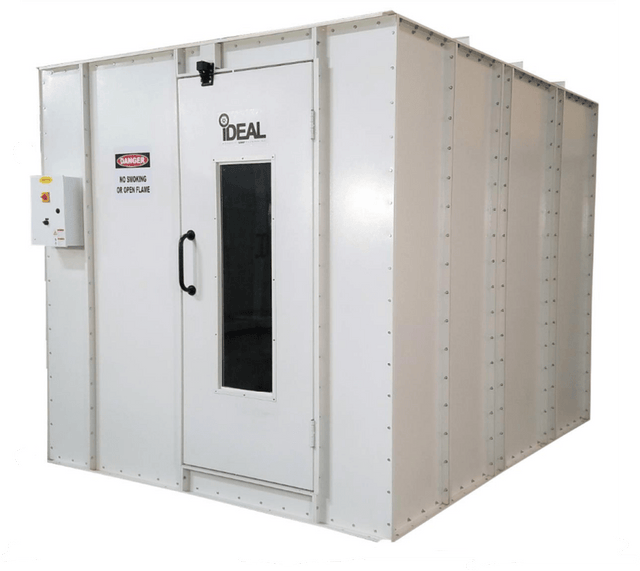

Tuxedo PSB-PMR1088-AK Paint Mixing Room

The iDEAL Paint Mixing Room is designed to provide superior lighting with a clean & controlled ventilated work area for safe paint mixing applications. Air flows through the ceiling intake filters towards one end of the room and downward into the filtered exhaust plenum and is discharged upwards through exhaust fan & ducting. This unique design allows for differ installation configurations, as the personnel door can be placed in either the front or side of the mixing room. The fan & plenum chamber are purposely located outside of mixing room to provide lower decibel levels while working inside. The included bright white powder-coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Mixing Room, all at a great value!

Features:

• Deluxe control panel included
• Durable bright white powder coat finish
• Optional door placement to side or front of room
• High quality 12" Dayton tube-axial exhaust fan w/spark resistant aluminum blades- UL & ETL listed
• Premium AFC intake and exhaust filters
• Superior lighting
• True daylight color with GE T8 48" florescent lamps 32w- 2900 lumens, 5000k color temp
• All assembly hardware, manometer & sealant included
• Heavy duty precision punched 18 gauge panel construction
• 5/16" bolt & serrated lock nut assembly
• Pre-hung personnel door w/viewing window
• Meets and/or exceeds all applicable OSHA and NFPA 33 regulations
• Easy to install, operate and maintain

Specifications:

• Inside dimensions | 10'l x 8'w x 8'h or 8'l x 10'w x 8'h
• Outside dimensions | 12'6"l x 8'4"w x 9'4"h or 8'4"l x 12'6"w x 9'4"h
• Fan/Motor | 1 ea 12" tube axial fan, 1/2hp-3ph-208-230/460vac-60hz, non-spark, UL listed, NEMA rated
• CFM | 1,429 @ .5 static pressure
• Lighting | 2 ea 48" 32w, T8, 4 bulb light fixtures, UL & ETL listed Cls1, Div2 (groups A, B, C & D)
