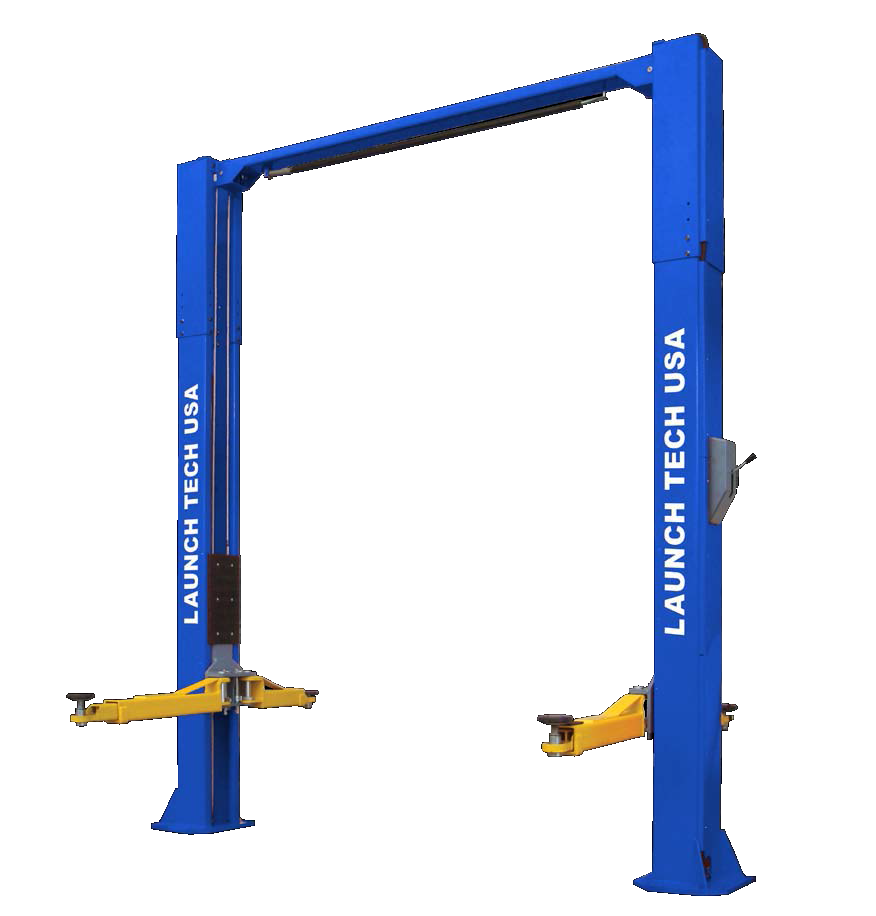

Tuxedo Launch Tech USA TLT210-XT 10,000-Lb 2 Post Lift

Multi Purpose full asymmetric lift that is height and width adjustable and may be installed in a standard or rotated column configuration to accommodate the smallest Cars to the largest SUVs' and Trucks.  This ALI/ETL Certified lift comes with a one (1) year limited warranty.

Features:

• Adjustable Column Height - Provides an extra 6" of height adjustment for ease of installation with various ceiling heights.
• Adjustable Column Width - Provides and extra 6" of width adjustment for narrow service bays to custom fit your shop.
• Rubber Door Guards - Provides added security against door damage.
• Outer Hose Guards - Protects hydraulic hoses from damage.
• Stackable Foot Pad Extensions - Extra tall applications are no problem with the two 6" tall and two 3" short extensions.
• Single Point Lock Release - Allows technicians to disengage both column locks simultaneously.
• Heavy-Duty Arm Restraint System - Oversize rugged steel gears, pins and springs for trouble free operation.
• Double Telescoping Screw Pads - Used with or without rubber pads offering 6.5" adjustment for complete vehicle coverage.
• Standard Asymmetric - Lift installed with columns facing each other.
• Rotated Asymmetric - Lift installed with columns offset - rotated.

Specifications:

• Maximum Lifting Height:
• Standard: 76.4" (1940mm)
• Rotated: 76.4" (1940mm)
• Minimum Column Height:
• Standard: 143" (3634mm)
• Rotated: 143" (3634mm)
• Cylinder Full Height:
• Standard: 145.2" (3688mm)
• Rotated: 145.2" (3688mm)
• Total Width:
• Standard: 136.6" (3470mm)
• Rotated: 137.9" (3502mm)
• Drive-Thru Clearance
• Standard: 98.4" (2500mm)
• Rotated: 92" (2338mm)
• Floor to Overhead Switch:
• Standard: 140" (3556mm)
• Rotated: 140" (3556mm)
• Front Arm Reach (min/max)
• Standard: 23.6" (600mm) / 43.5" (1105mm)
• Rotated: 23.6" (600mm) / 43.5" (1105mm)
• Rear Arm Reach (min/max):
• Standard: 38.6" (980mm) / 61.8" (1570mm)
• Rotated: 38.6" (980mm) / 61.8" (1570mm)
• Screw Pad Height:
• Standard: 4" (101mm) to 7.5" (190mm)
• Rotated: 4" (101mm) to 7.5" (190mm)
• Inside Column Width:
• Standard: 110.2" (2800mm)
• Rotated: 101.9" (2588mm)
• Motor:
• Standard: 2 HP
• Rotated: 2 HP
• Voltage:
• Standard: 208-230 Volt / 60hz / Single Phase
• Rotated: 208-230 Volt / 60hz / Single Phase
• Rise Speed:
• Standard: 54 Seconds
• Rotated: 54 Seconds
• Max. Load Per Arm:
• Standard: 2500 lbs (1134 Kilos)
• Rotated: 2500 lbs (1134 Kilos)
• Min. Ceiling Height Required:
• Standard: 143.5" (3644mm)
• Rotated: 143.5" (3644mm)
• Narrow Bay Setting:
• Standard: Deduct 5.9" (149mm)
• Rotated: Deduct 5.9" (149mm)
• Maximum Column Height:
• Standard: 149" (3874mm)
• Rotated: 149" (3874mm)
• Capacity:
• Standard: 10,000 lbs
• Rotated: 10,000 lbs
• Ship Weight:
• Standard: 1,570 lbs
• Rotated: 1,570 lbs
• Ship Dimensions:
• Standard: 110"L x 24"W x 48"H
• Rotated: 110"L x 24"W x 48"H

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck and extra fees apply if Residential Delivery is required. Lift Gate CAN NOT be used to unload this item!!
