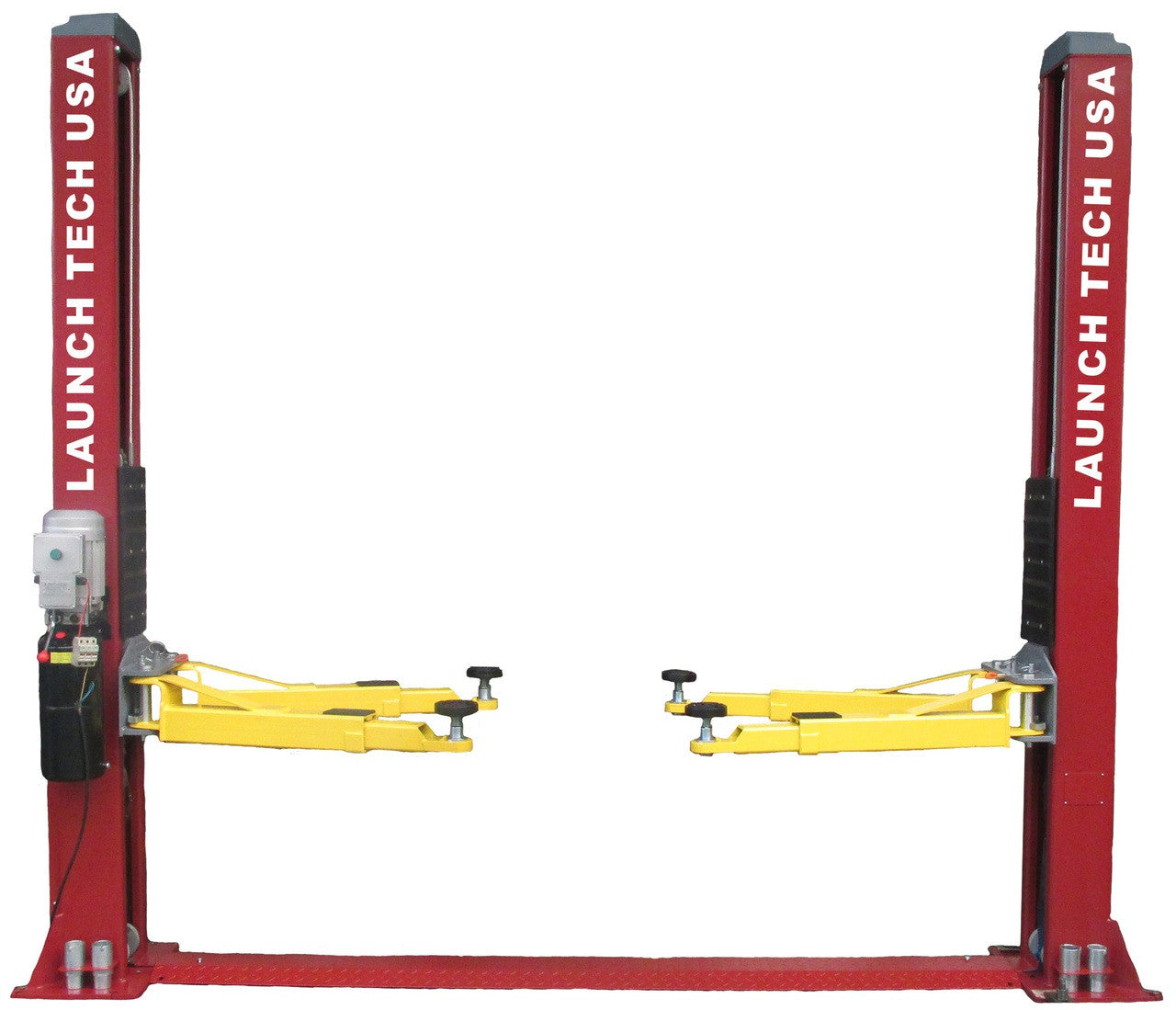

Tuxedo Launch TLT240-SB 9,000 Lb Symmetric Floor Plate Two Post Lift

Economical, high quality, clear floor and floor plate chain - over lifts with dual point lock release, steel pulleys, high strength equalization cables and double telescoping screw pads configured to accommodate the smaller Cars to the SUV's and Trucks. Comes with a 1 year limited warranty.

Features:

• Rubber Door Guards - Provides added security against door damage
• Hose Guards - Protects hydraulic hoses from damage
• Stackable Foot Pad Extensions - Extra tall applications are no problem with the four 3.5" extensions
• Dual Point Lock Release - Allows technicians to disengage both column locks independently
• Heavy-Duty Arm Restraint System - Oversize rugged steel gears, pins, and springs for trouble free operation
• Double Telescoping Screw Pads - Used with rubber pads offering 2.5” adjustment for complete vehicle coverage
• Standard Asymmetric - Lift installed with columns facing each other
• Rotated Asymmetric - Lift installed with columns offset – rotated

Specifications:

• Capacity: 9,000 lbs
• Height Overall: 113"
• Width Overall w/ Power Unit: 133"
• Max. Lift Height: 73"
• Width Between Columns: 108"
• Min. Pad Height: 4"
• Asymmetric/Symmetric: Symmetric
• Drive Thru Clearance: 98"
• Lifting Speed: 50 Seconds
• Clear Floor/Floor Plate: Floor Plate
• Arm Reach - min/max: 31.5" - 47"
• Narrow Bay Setting: N/A
• Max Load Per Arm: 2,250 lbs
• Cable Diameter: 3/8"
• Column Size: 11.34" x 7.5"
• Column Steel Thickness: 6mm
• Carriage Steel Thickness: 6mm
• Arm Steel Thickness: 6mm, 8mm
• Ship Weight: 1,380 lbs
• Ship Dimensions: 113"L x 21 1/2"W x 43"H
• Power: 208-230 Volt ? 60Hz / Single Phase

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck and extra fees apply if Residential Delivery is required. Lift Gate CAN NOT be used to unload this item!!
