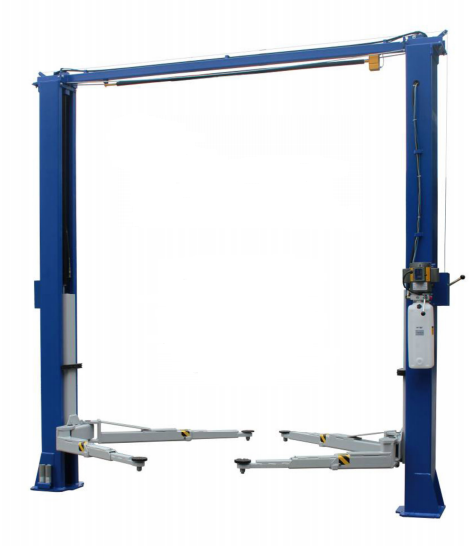

Tuxedo TP10KAC-DX 10,000 Lb Two Post Direct Drive Asymmetric Lift

The iDeal TP10KAC-DX 10,000 lbs. ALI Certified two post lift is a premium Bi-Symmetric design clear floor vehicle lift. Offset three stage short arms and a low pad height of 4" make this lift perfect for a wide range of vehicles. Our rigid single piece column and direct pull cylinder combined with single point lock release and clean design make this lift one of our most popular models.

Features:

• Bi-Symmetric
• Offset Three Stage Short Arm
• Low Profile Lifting Arms
• Adjustable Spin Up Pads
• Single Point Lock Release
• Rigid Single Piece Column
• Direct Pull Hydraulic Cylinder
• Rubber Door Guards
• Truck Adapters Included
• Warranty: 1 Year Parts / 5 Year Structural

Specifications:

• Capacity: 10,000 lbs
• Width Overall: 137 3/16"
• Width Overall w/ Power Unit: 145 1/2"
• Height Overall: 144"
• Minimum Ceiling Height: 12'
• Low Pad Height: 4"
• Max. Lift Height: 71"
• Max. Lift Height w/ Tallest Adapter: 76 1/2"
• Width Between Columns: 116"
• Drive thru Width: 104"
• Floor to Overhead Shutoff: 136"
• Arm Reach Front: 23" - 45"
• Arm Reach Rear: 41" - 57"
• Maximum Load Per Arm: 2500 lbs
• Electric Power Unit: 220 VAC, 20 AMP, 1 Phase
• Rise Speed: 50 Seconds
• Minimum Concrete: 4 1/4" / 3000 PSI
• Operating Pressure: 3050 PSI
• Shipping Weight: 1,705 lbs.
• Shipping Dimensions: 140" L X 19" W X 40" T

Click the Link Below for Additional TP10KAC-D Information:

• TP10KAC-DX Manual

PLEASE NOTE IMPORTANT INFORMATION:

• This item ships by truck and extra fees apply if Residential Delivery is required. Please choose the option above Before adding to the cart! Please Note that Liftgate Delivery is NOT available for this lift.
