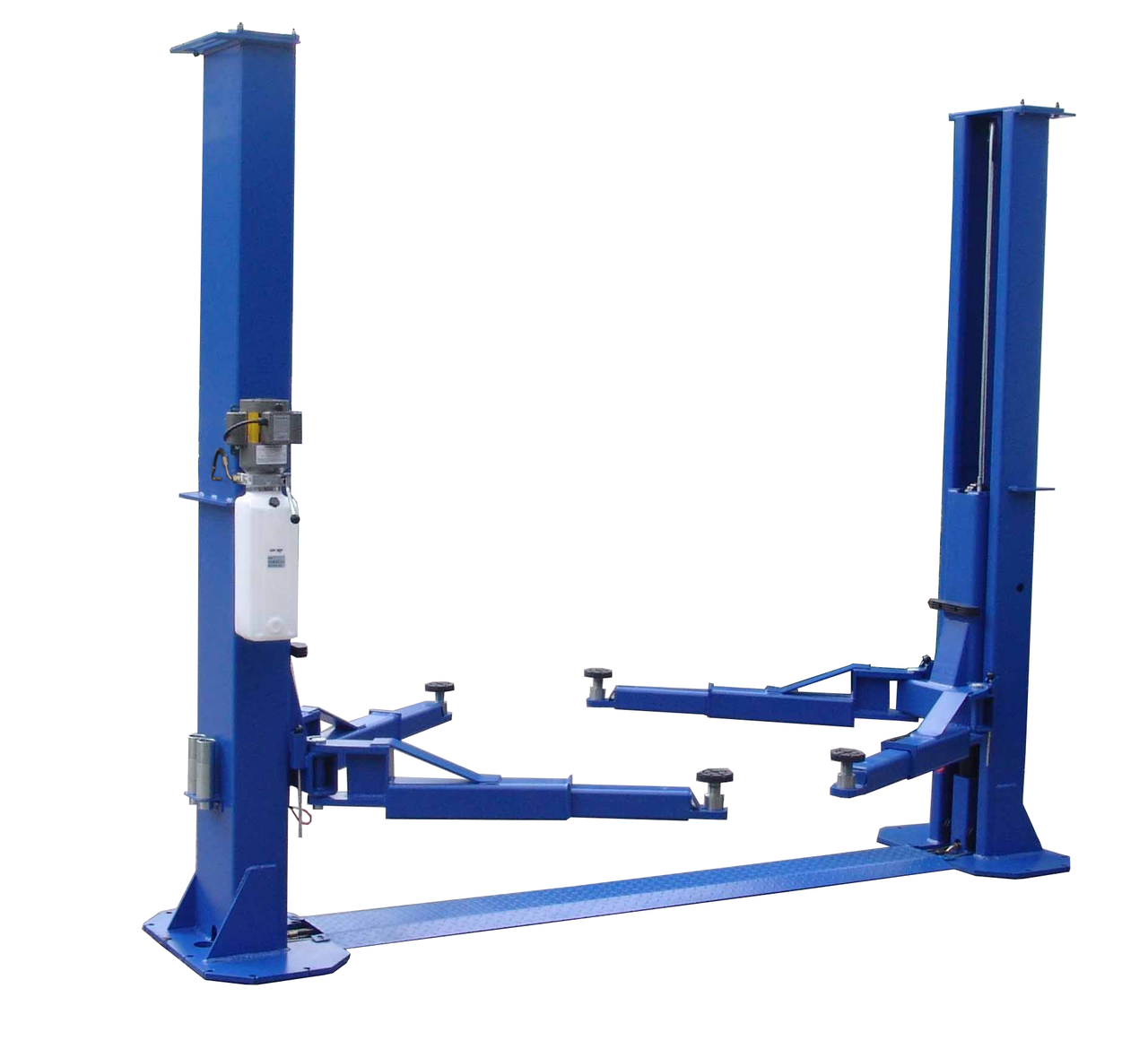

Tuxedo TP12KFX 12,000 LB Heavy-Duty Two-Post Symmetric Lift

Introducing the New TP9K ‘X’ Series Two Post Lifts!! The new TP9KACX,TP9KSCX & TP9KFX Two Post, Clear Floor & Floor Plate Lift shave been redesigned to now include
standard features with Single Piece Column construction, Internal Hoserouting, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable
Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!

Standard Features:

• High Quality Construction
• Chain Drive
• Dual Point Lock Release
• Saddle Pad Adapters included (1pair)
• Powder coat finish

NewTP9K“X”Features:

• Single Piece Column construction (TP9KACX-TP9KSCX)
• Padded ‘ShutOff’ Barw/KillSwitch(TP9KACX-TP9KSCX)
• Low Profile ‘drop-in’ Swivel Pads w/1-1/2”adjustable height
• 4 ea Stackable 1-3/8”& 4” ‘dropin’ Height Adapters
• Reduced overall Width w/ front-side Power Unit Mounting
• Internal Hose Routing w/ integrated HoseGuards
• Rubber Door Guards

Specification:

Lifting Capacity: 9000 lbs
Height Overall: 111.9"
Width Overall w/ Power Unit: 134.6"
Max Lifting Height: 72"
Width Between Columns: 110.4"
Min Pad Height: 4"
Drive Thru Clearance: 101"
Lifting Speed: 50 S
Asymmetric / Symmetric: Symmetric
Clear Floor / Floor Plate: Florr plate
Front Arm Reach: Min / Max
Rear Arm Reach: Min / Max
Max Load Per Arm: 2250 lbs
Cable Diameter: 3/8"
Column Size: 7.25" X 10.87"
Column Steel Thickness: 5 mm
Carriage Steel Thickness: 5 mm
Arm Steel Thickness: 6 mm
Power: 220V-20 AMP 1 PH
Ship Weight: 1265 lbs

PLEASE NOTE IMPORTANT INFORMATION:

• This item ships by truck and extra fees apply if Residential Delivery is required. Please choose the option above Before adding to the cart! Please Note that Liftgate Delivery is NOT available for this lift.
