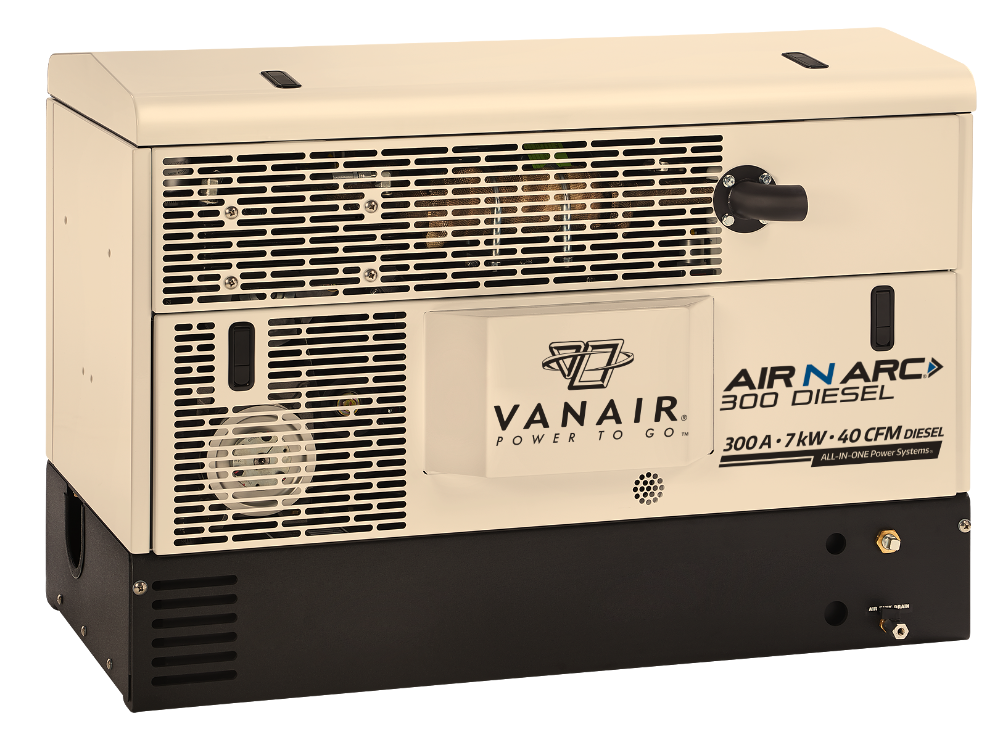

Van Air 050590 Air N Arc 300 ALL-IN-ONE Power System

Air Compressor | Generator | Welder | Battery Booster | Battery Charger

Available in Gas or Diesel

Increase your Efficiency, Increase your Productivity, Increase your Profitability, with one System. The Air N Arc 300 system, provides more efficient use of your truck bed and reduces cost by combining five power sources -Rotary screw on-demand air compressor, 7 kW generator, 300 AMP welder, battery booster and battery charger - into one single unit. Designed as a true two generator system, the Air N Arc 300 series allows multi-functioning such as welding and generator for lights for night time service.

Specification:

• Engine | Diesel | 25 HP Kubota, Liquid Cooled (Tier 4 Compliant)
• Compressor Type | Rotary Screw
• Max Pressure | 175 PSI
• CFM Rating | 40 CFM
• Generator Wattage | 7 kW peak - 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
• Welder Amperage | High frequency DC welding, 270 AMPs at 100% duty cycle
• CC | 40-300 AMPs operating range, CV | 15-30 Volts
• Battery Charger/Booster | 300 AMPs 12V/24V Boost, 50 AMP 12V Charge
• Drive System | Belt driven
• Fuel Capacity (Gal.) | 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis)

Diesel

Dimensions -

Foot Print (In.)–47.5L x 21.0W x 33.4H*
with fittings (In.)–48.0L x 25.0Wx33.4H*

Dry weight (Lbs.) – 870 Lbs.

Special Features:

• True Two Generator System for Safe Multi-Function of Welder and Electric tools
• All the benefits of a High Frequency Welder offering Excellent Weld Characteristics
• 40 CFM Rotary Screw Compressor for Air on Demand and Extended Life of Unit
• Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
• Remote Mount Control Panel for the Ultimate in User Convenience
• Fuel System can be Integrated with the Chassis
• Integrated Lift Hook and Battery Tray
• Designed for Easy Maintenance
• Small Footprint - Will Fit on Side Pack or Behind Cab
• Powder Coated Sheet Metal
• Galvannealed Steel

Air Compressor:

• Encapsulated Rotary Screw Compressor for Air-On-Demand
• 40 CFM @ 100 PSI
• 175 Max PSI

Welder:

• High Frequency DC Welding
• 270 AMPs at 100% Duty Cycle
• CC Range 40 – 300 AMPs Operating Range
• CV Range 15 – 30 Volts
• Independent DC Welder
• Auto Speed Control
• CV MIG Capabilities

Generator:

• 7 kW Peak
• 6.8 kW Continuous @ 60 Hz (Available In 5.7 kW Continuous Watts @ 50 Hz)
• Independent AC Generator
• Brushless
• Smooth Wave for Minimal Distortion
• Two-120V Outlets and One-240V Outlet

Battery Boost/Charge:

• 300 AMP 12V/24V Boost
• 50 AMP 12V Charge

Engine:

• 26.5 HP EFI Kohler, Air Cooled or 25 HP Kubota, Liquid Cooled
• Electric Start
• 12 Gal. Integral Tank
• Provides Power for Emergency and Safety Lights with Truck Engine Turned Off
• Tier 4 Emission Compliant
• Glow Plugs

Options/Accessories:

• Welding Cables - 25’, 50’
• Welding Helmet with Auto Darkening Lens
• Battery Booster Cables
• Cable Extension Segment
• Fuel Tank – Slimline 11 Gallon
• Remote Air Tank – 30 Gallon
• Remote Condensation Drain
• Maintenance Kits
• Welding Rods
• Cold Weather Kits
• GFCI Kit Available

Parts - Diesel:

• Compressor Service Kit - 50 Hours
• Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300D, 300H, and I-300 Series) part # KIT1285
• Compressor Service Kit - 500 Hours or Annually Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300D, 300H, and I-300 Series) part # KIT1182
• Engine Service Kit - Includes One Gal. Oil, Oil Filter, Air Filter (for I-300 and 300D Series) part # KIT1292
• Vanguard Premium Green Oil (Four Pack) 264626-4GREEN
• Vanguard Premium Oil (Four Gal.) 264626-4PACK

**Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.

PLEASE NOTE, IMPORTANT INFORMATION:

Dimensions listed are not a complete representation of total space necessary. Please call for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.

Picture may vary
