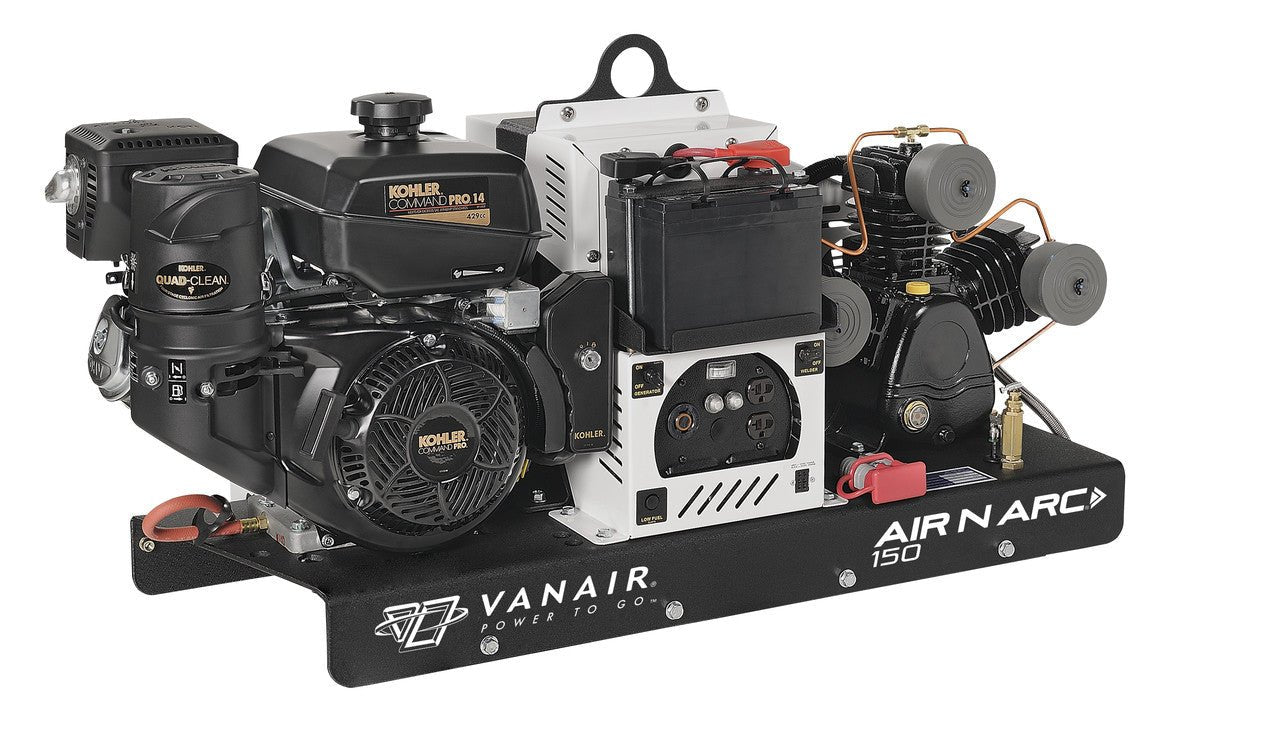

Vanair 050707 Air N Arc 150 No Air Storage

Three Forms of Power for Light to Medium Industrial Repair

The Air N ARC 150 provides you with three forms of power in one compact and economic unit, allowing you to save space and weight on your vehicle. Providing up to 190 AMPs of welding power, the Air N Arc 150 is available in three configurations to meet your mounting needs.

Special Features:

• Fuel System can be Integrated with the Chassis
• Powder Coated Sheet Metal for Protection
• 100% Duty High Frequency Welder Offering Excellent Weld Characteristics
• Galvannealed Steel Metal
• Heavy Duty Belt Driven System for Anti-Vibration and Long Service Intervals

Specifications:

• Engine | 14 HP Kohler
• Compressor Type | Reciprocating
• CFM Rating | 20 CFM
• Max Pressure | 150 PSI
• Generator Wattage | 5 kW Peak
• Welder | 14 HP Stand-alone CC | 40-190 AMPs Operating Range
• Air Storage Capacity | None
• Drive System | Belt Driven
• Fuel Capacity | Kohler 14 HP: 1.9 Gallon
• Platform dimensions for Skid Mount with fittings (In.) – 50.3L x 18.2W x 24.2H*

Air Compressor:

• Reciprocating Compressor
• Cast Iron Air Pump with Three Cylinder Head Design for Better Cooling

Welder:

• Patented Amperage and Power Controls Built Into Welding Lead for Ease of Use for 14 HP Units and 19 HP Stand Alond Machines
• 100% Variable Completely Controllable. No Preset Setting
• Independent Welding Generator
• CV on Remote Panel Machines
• Safe Multi-Function
• Auto Throttle Control

Generator:

• True Two Generator System for Safe Multi-Functioning of Welder and Electric Tools
• Independent AC Power for Safe Multi-Functioning
• Brushless Design
• Smooth Wave for Minimal Distortion
• Two 120V Outkets and One 240V Outlet Provided

Options and Accessories:

• California CARB Compliance Kit (fuel vapor carbon canister) # 032851
• Optional Weld Cable Set 25' 1/0 # 033020-25
• Optional WEld Cable Set 50' 1/0 # 033020-50
• Weld Cable Reel, Manual Rewind w/ 50' Leads, 400 AMP # 033136
• Weld Cable Reel, Spring Forward w/ 50' Leads, 400 AMP # 033137

Cold Weather Kits:

• Cold Weather Kit 12V (Compressor Oil and Engine oil pan heater*) # 032793
• Cold Weather Kit 120V AC (Compressor Oil and Engine oil pan heater*) # 032927

*Installed at time of machine build. Note 12V kit utilizes chassis battery

Standard Service Kits and Oil

• Compressor Service Kit (three air filters and Vanguard oil) # KIT1156
• Engine Service Kit, Kohler 14 HP (one quart oil, air filter and pre-filter) # KIT1158
• Engine Service Kit, Kohler 19 HP (two quarts oil, air filter and pre filter) # KIT1157
• Vanguard Reciprocating Compressor Oil (one gallon) # 271856-1GAL
• Vanguard Reciprocating Compressor Oil (one quart) # 271856-1QT

PLEASE NOTE, IMPORTANT INFORMATION:

Dimensions listed are not a complete representation of total space necessary. Please call for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.

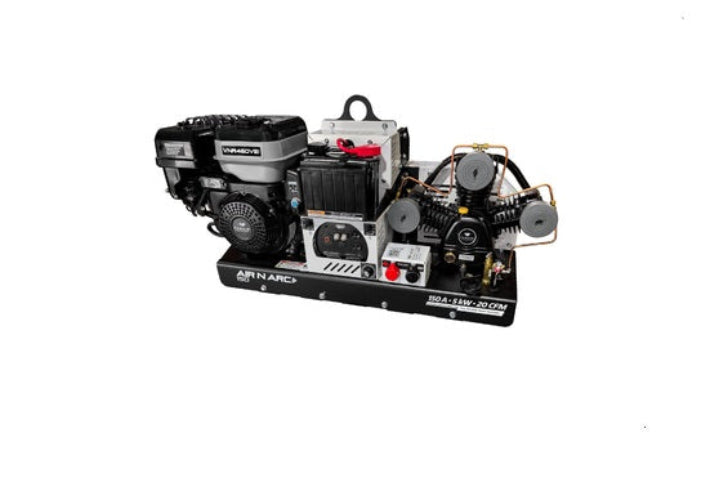

Picture may vary
