Vanair Air N Arc 150 No Air Storage | 050681

Three Forms of Power for Light to Medium Industrial Repair

The Air N ARC 150 provides you with three forms of power in one compact and economic unit, allowing you to save space and weight on your vehicle. Providing up to 190 AMPs of welding power, the Air N Arc 150 is available in three configurations to meet your mounting needs.

Specifications:

• Engine | 14 HP Kohler or 19 HP Kohler
• Compressor Type | Reciprocating
• CFM Rating | 20 CFM
• Max Pressure | 150 PSI
• Generator Wattage | 5 kW Peak, 4.2 kW Continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
• Welder | 14 HP Stand-Alone | CC | 40-190 AMPs Operating Range
•              19 HP With Remote Panel | CC | 40-150 AMPs, CV | 15-30 V
• Battery Charger / Booster | Option for 19 HP Engine Only | 150 AMPs 12V/24V Boost, 50 AMP 12V Charge
• Air Storage Capacity | 8 Gallon (19 HP), 10 Gallon (14 HP), 30 Gallon, or skid mount
• Drive System | Belt Driven
• Fuel Capacity | Kohler 14 HP | 1.9 Gallon or 4.5 Gallon
•                          Kohler 19 HP | 11.5 Gallon or Plumb to Chassis
• Platform Dimensions for 8 Gallon with fittings (in) | 47.8 L x 21.1 W x 28.6 H
• Platform Dimensions for 30 Gallon with fittings (in) | 48.2 L x 22.2 W x 40.8 H
• Platform Dimensions for Skid Mount with fittings (in) | 48.1 L x 22.4 W x 24.2 H
• Dry Weight (lbs) | 345-565 depending on platform

Special Features:

• Fuel System can be Integrated with the Chassis
• Powder Coated Sheet Metal for Protection
• 100% Duty High Frequency Welder Offering Excellent Weld Characteristics
• Galvannealed Steel Metal
• Heavy Duty Belt Driven System for Anti-Vibration and Long Service Intervals

Air Compressor:

• Reciprocating Compressor
• Cast Iron Air Pump with Three Cylinder Head Design for Better Cooling

Welder:

• Patented Amperage and Power Controls Built Into Welding Lead for Ease of Use for 14 HP Units and 19 HP Stand Alond Machines
• 100% Variable Completely Controllable. No Preset Setting
• Independent Welding Generator
• CV on Remote Panel Machines
• Safe Multi-Function
• Auto Throttle Control

Generator:

• True Two Generator System for Safe Multi-Functioning of Welder and Electric Tools
• Independent AC Power for Safe Multi-Functioning
• Brushless Design
• Smooth Wave for Minimal Distortion
• Two 120V Outkets and One 240V Outlet Provided

Engine:

• 19 HP Kohler

Available Fuel Capacity:

• 1.9 Gallons (14 HP)
• 4.5 Gallons on Models with 8 Gallon Air Storage (19 HP)
• 11.5 Gallons on Models with 30 Gallon Air Storage (19 HP)
• Plumb to Chassis

Battery Boost/Charge (Optional)

• 150 AMP 12V/24V Boost (Standard on Remote Panel)
• 50 AMP 12V Charge (Standard on Remote Panel)

Remote Control Panel (Optional On Kohler 19 HP Systems) (Harness Not Included):

• Provides Ultimate User Convenience and Safety
• All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle
• Filter / Lubricator / Regulator (FLR)
• Hose Reels and Fittings
• OSHA Safety Valve (Velocity Fuse)
• Post Drivers
• Service/Control Line Moisture Separators
• Tool Oiler/Lubricator

 Available Air Reservoirs:

• 8 Gallon (19 HP), 10 Gallon (14 HP), 30 Gallon and Skid Mount

Options and Accessories:

• California CARB Compliance Kit (fuel vapor carbon canister) # 032851
• Optional Weld Cable Set 25' 1/0 # 033020-25
• Optional Weld Cable Set 50' 1/0 # 033020-50
• Weld Cable Reel, Manual Rewind w/ 50' Leads, 400 AMP # 033136
• Weld Cable Reel, Spring Forward w/ 50' Leads, 400 AMP # 033137
• Optional Battery Boost Cables - 20' (four gauge with quick connect ends) # MA36223

Cold Weather Kits:

• Cold Weather Kit 12V (Compressor Oil and Engine oil pan heater*) # 032793
• Cold Weather Kit 120V AC (Compressor Oil and Engine oil pan heater*) # 032927

*Installed at time of machine build. Note 12V kit utilizes chassis battery

Standard Service Kits and Oil

• Compressor Service Kit (three air filters and Vanguard oil) # KIT1156
• Engine Service Kit, Kohler 14 HP (one quart oil, air filter and pre-filter) # KIT1158
• Vanguard Reciprocating Compressor Oil (one gallon) # 271856-1GAL
• Vanguard Reciprocating Compressor Oil (one quart) # 271856-1QT

PLEASE NOTE, IMPORTANT INFORMATION:

Dimensions listed are not a complete representation of total space necessary. Please call for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.

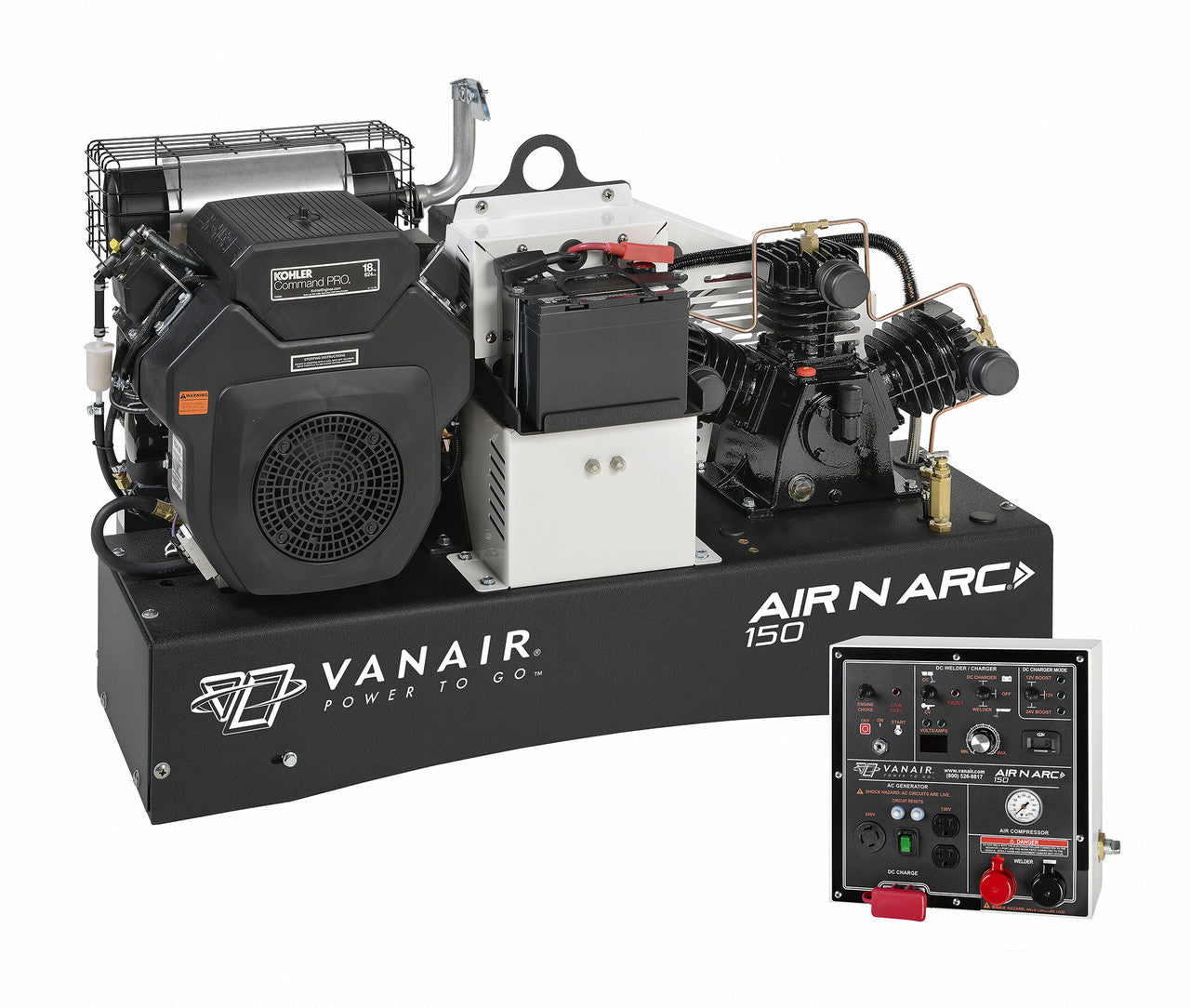

Picture may vary
