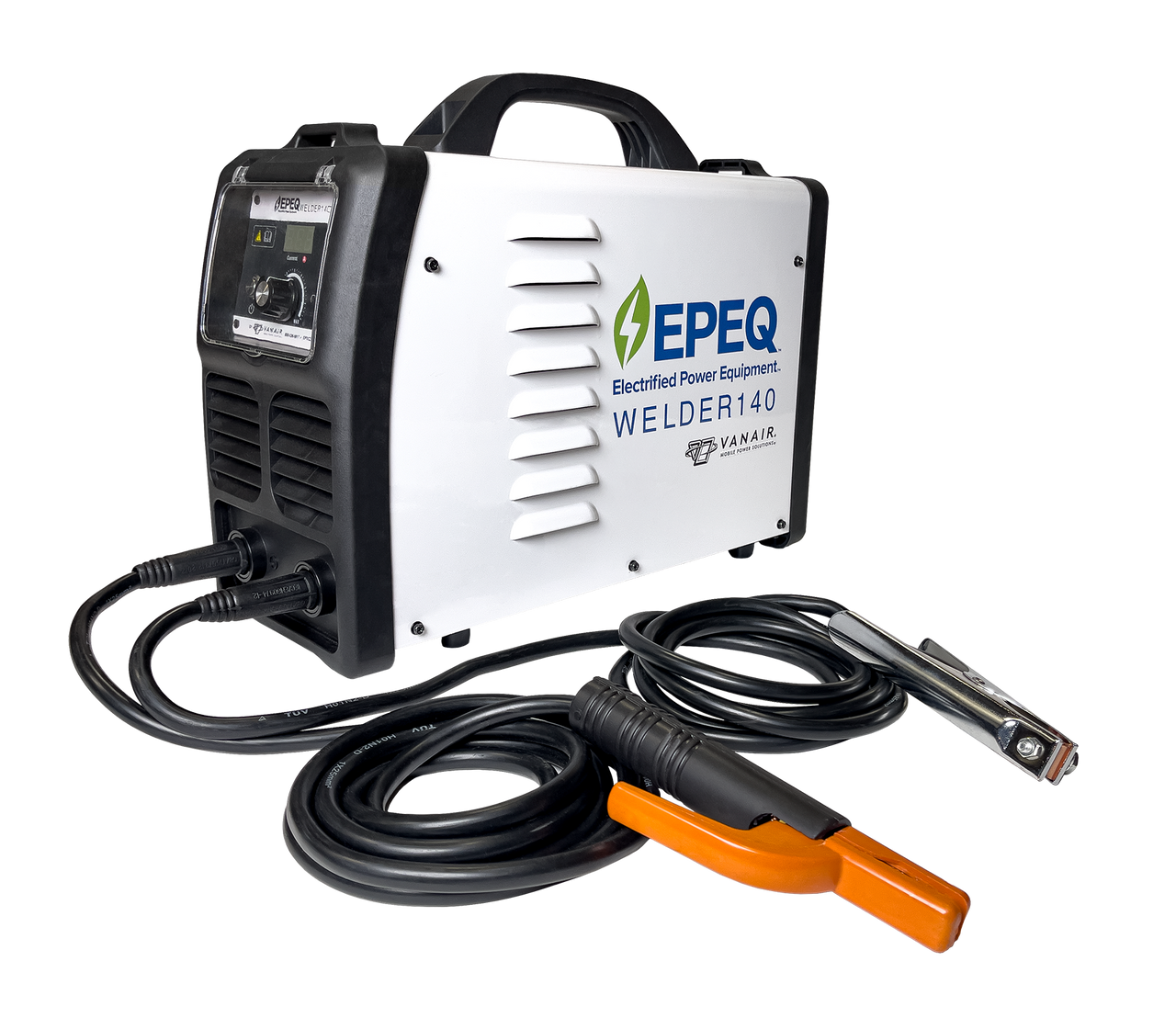

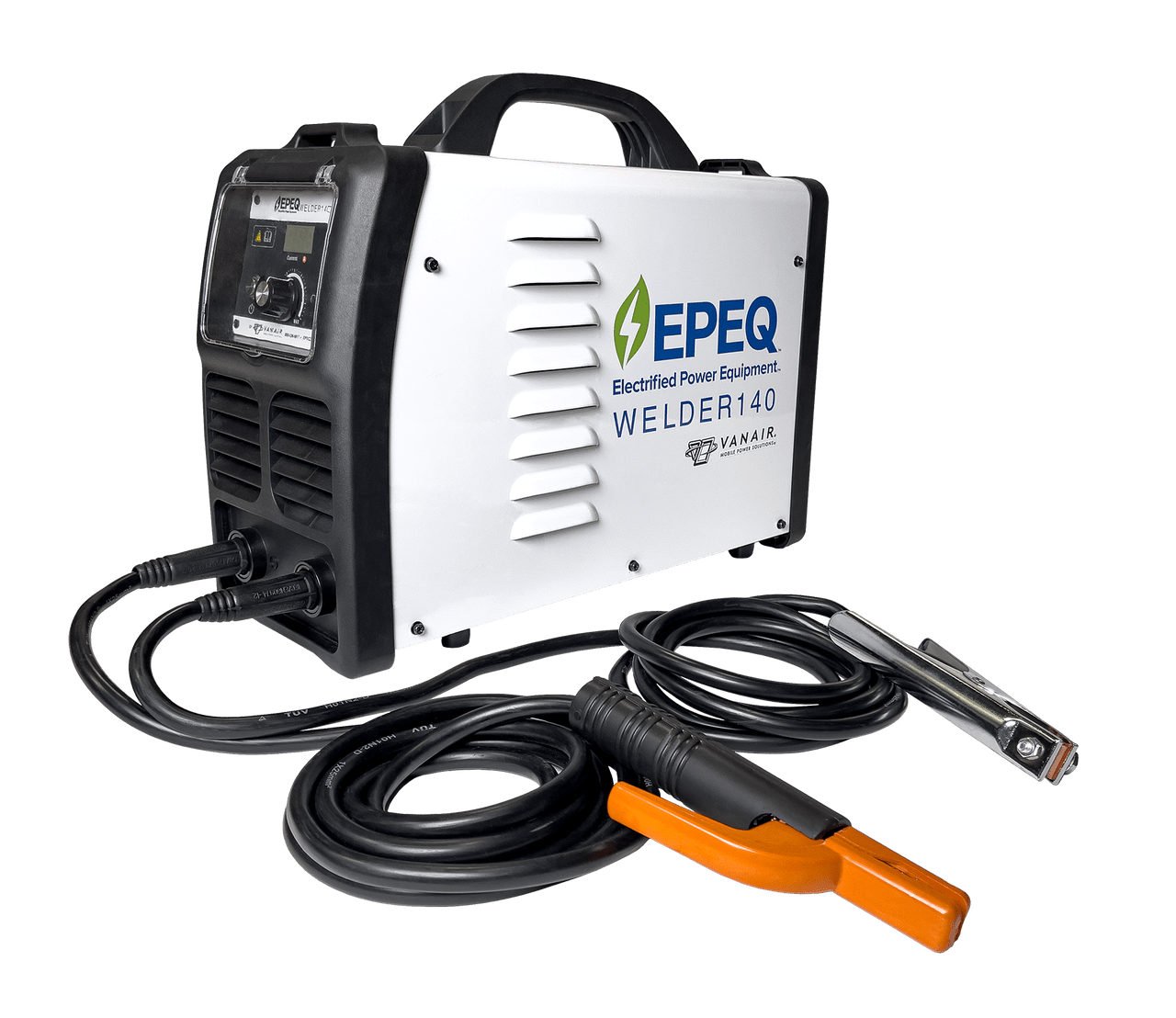

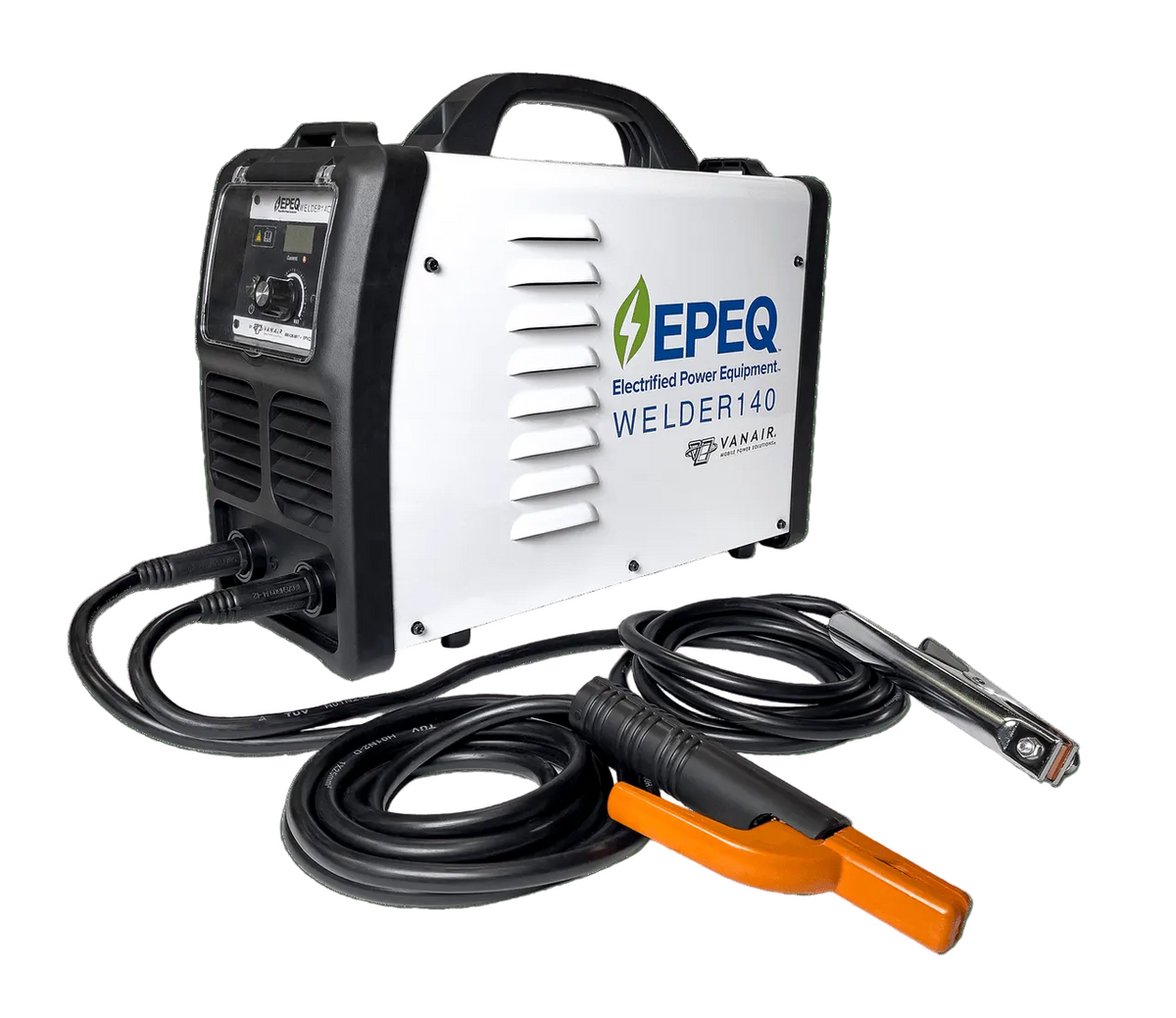

VANAIR EPEQ WELDER140 Lithium-Powered Portable Welder

When you need Clean, Quiet, Power in a smaller, smarter, and portable package, look no further than the new EPEQ Electrified Power Equipment product lineup. The Vanair EPEQ WELDER140 is a 140A, CC Stick welder which combines the flexibility of lithium-powered welding with Vanair’s long history of providing top-level welding capabilities. The welder features a hot start for easier welding and can weld 10-12 pieces of 3.2mm welding rods, or 20-25 pieces of 2.5mm welding rods, when in full charge. The EPEQ™ Welder provides two charge modes: 1.5-hour fast charge and 3-4 hours standard charge. The ability to carry the entire welder and cables right next to the equipment being worked on, makes our WELDER140 user-friendly for those light and fast repair jobs in the field.

Features:

• Lithium-Ion Internal Battery Replaces AC Power Supply for Convenience and Mobility
• Built-In High Power Constant-Current and Constant-Voltage Charging Unit for Fast Charging
• Ergonomic Handle and Weight Balance Design for Easy Carrying
• Hot Start for Easier Welding
• High Accuracy Display for Current
• Easy to Read LED Display
• Waterproof, Dust Proof, Shock Proof, Rugged and Durable Battery Pack
• Capacity | 140A Stick Welder
• Clean, Quiet Operation
• User-Friendly for Quick Repair Jobs
• Portable; Ability to Carry the Entire Welder and Cable

Built in Safeties:

• Over Charge Protection
• Overload Protection
• Over Discharge Protections
• High Temperature Protection
• Undervoltage and Overvoltage Protection
• Short-Circuit Protection
• Battery Cell Positive Thermal Coefficient (PTC) Protection
• Reset Protection
• Temperature Coherence Protection
• Current Equalization Protection

Certifications:

• UN38.3
• RoHS
• CE

Specifications:

• Battery Capacity | 604.8WH
• Battery Type | Lithium-Ion
• Input Voltage Range | 100V-240V AC
• Input Voltage Frequency | 50/60HZ
• Charging Mode | CC - CV
• Charging Time | 3 Hours Standard Charge, 1.5 Hours Quick Charge
• Charging Temperature | 32° - 113° F (0°C - 45°C )
• Output Current Range | MMA DC40-140
• No - Load Voltage | 70V± l0V
• Duty Cycle (MMA) | 20% 140A, 50% 110A, 100% 80A
• Discharging Temperature | 14° - 140°F (-10° - 60°C)
• Arc Force | Auto
• Hot Start | Built-in
• Cooling Mode | Smart Double Air Cooling
• Protection Class | IP23
• Lead Length | 10 ft
• Weight | 34 lbs. (15.5kg)
• Dimensions | 18.3”l x 7.6”w x 14.9”h
