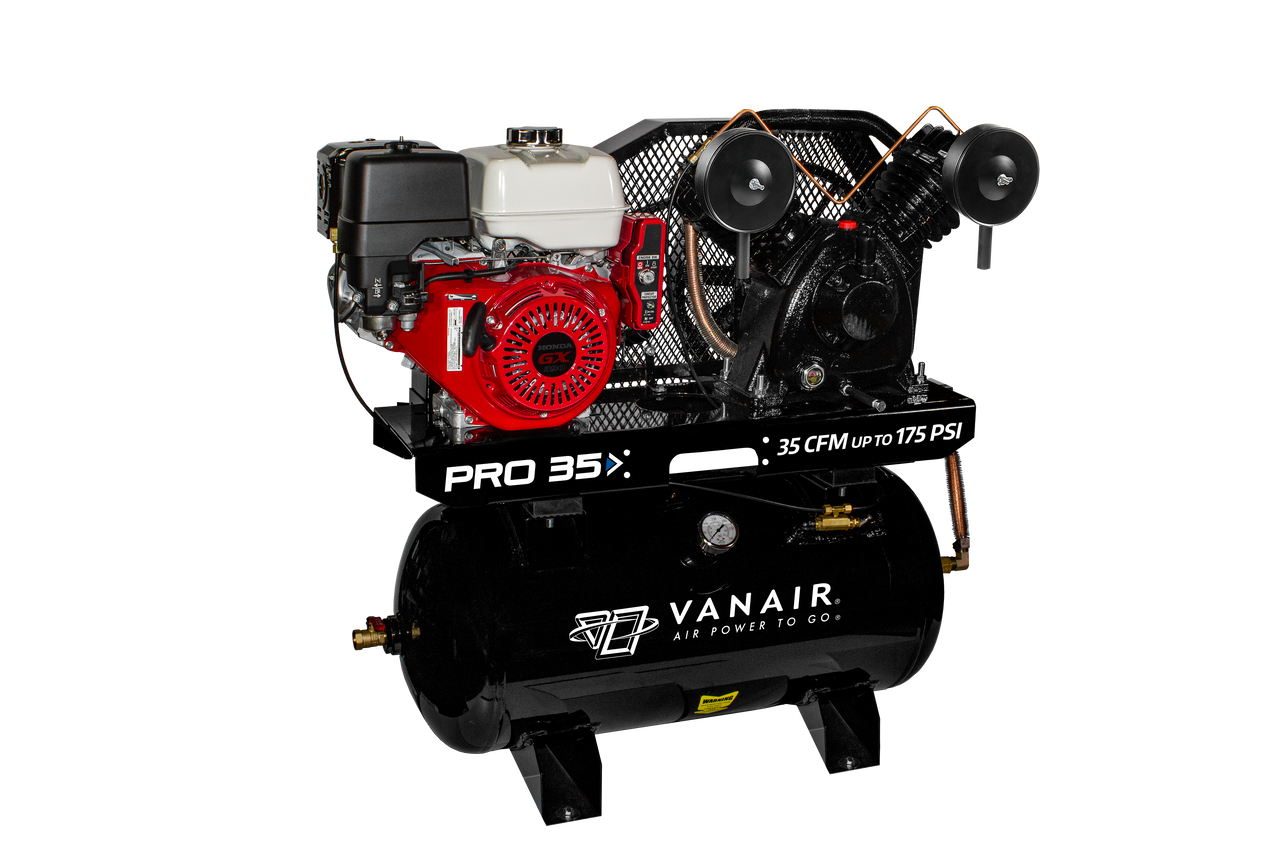

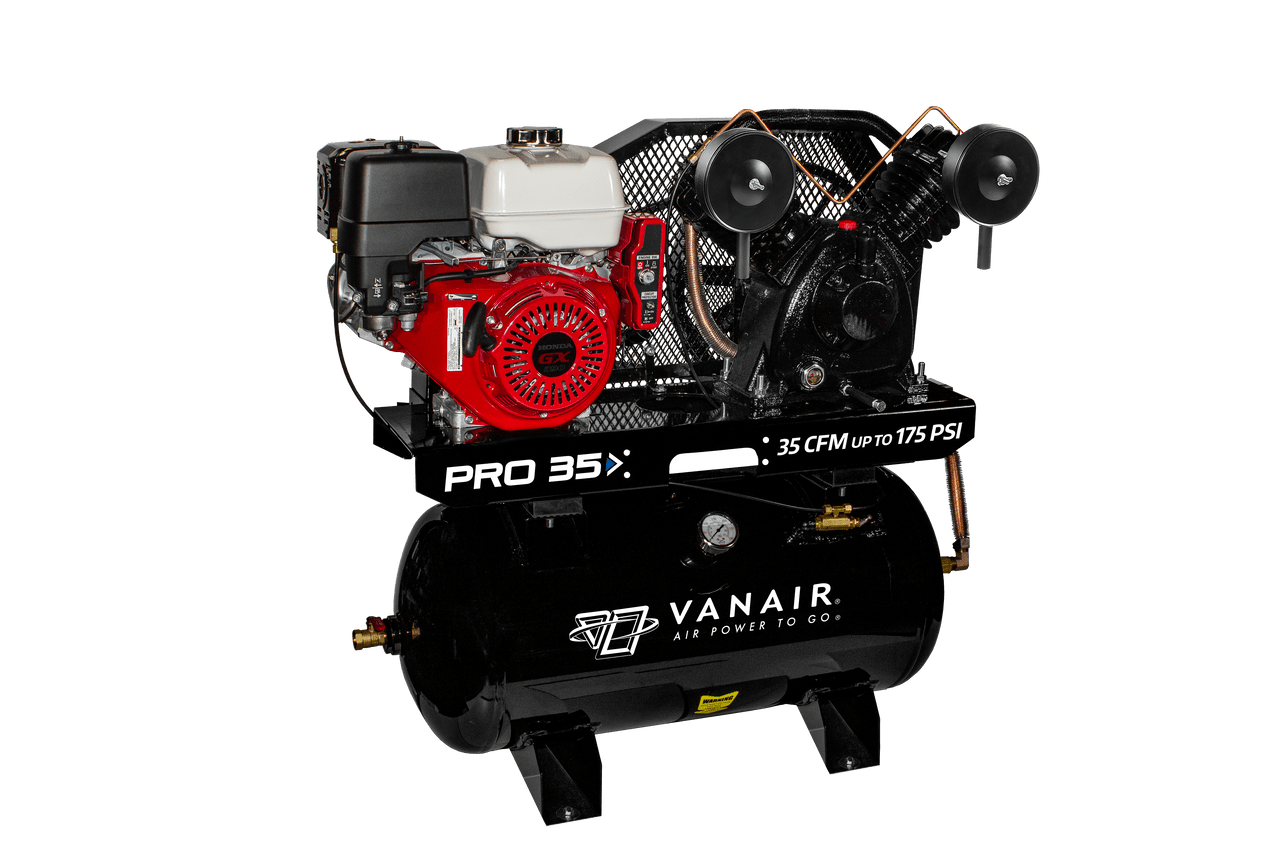

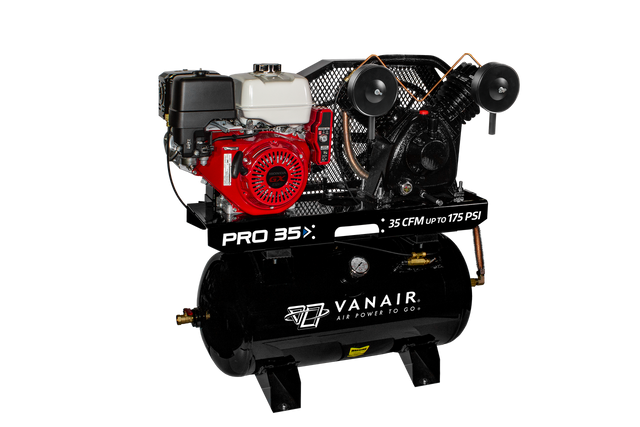

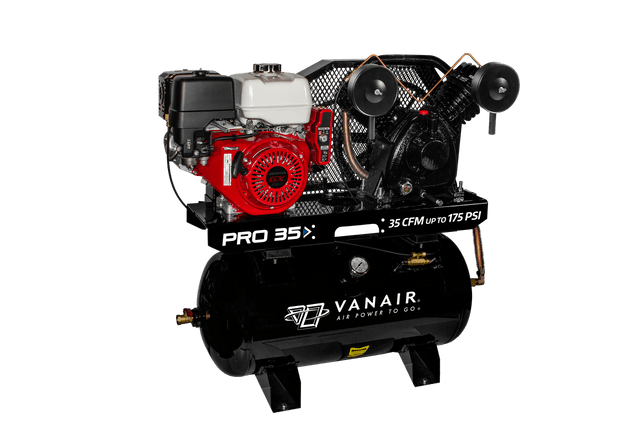

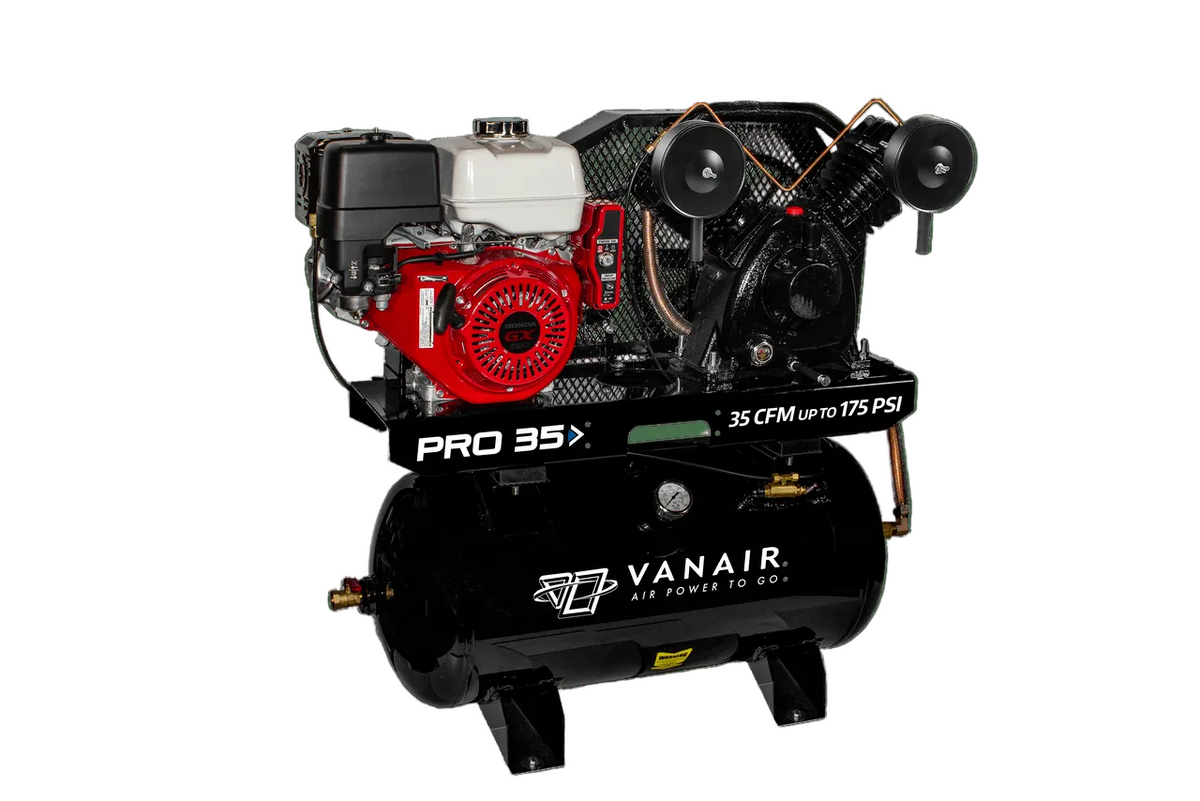

Vanair PRO 35 051935 35 CFM Electric Start Air Compressor

Rugged Power That Lasts

Vanair’s line of entry level reciprocating compressor packages were developed to meet the demands of customers that need the convenience of mobile air at an economical cost. Designed to provide rugged, powerful, and dependable performance, these compressors are a perfect fit for the mechanic, service, agriculture, and contractor markets. The Vanair PRO Series offers Honda or Kohler engines and air power from 18 or 35 CFM with up to 175 PSI. Systems are all electric start and are available in a skid, 10-gallon twin and 30-gallon tank configuration.

Features:

• Belt Drive System for Anti-Vibration and Long Service Intervals
• Self Contained, but can be Integrated with the Chassis for Maximum Versatility
• Vanair 2 year Warranty

Air Compressor:

• Reciprocating
• 3 Cylinder Head

Engine:

• Honda 11 HP
• Electric Start
• 1.9, Gal. Fuel Tank
• Gasoline Fuel

Instrumentation:

• Air Pressure Gauge

Safety Equipment:

• Air Pressure Safety Relief Valve
• Low Engine Oil Shut Down

Specifications:

• CFM @ 100 PSI | 35 CFM
• Maximum Rated PSI | 175 PSI
• Receiver Capacity | 30 Gallon
• Engine Type | 11 HP Honda Electric Start
• PRO 35 Unit Dimensions (In.):
• Skid | 44L x 19W x 38H
• Dry Weight (Lbs.) | 387 - 475 Depending on Platform

Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.

Standard Service Kits and Oil (Sold Separately):

• KIT1169 | Compressor Service Kit, Pro 35 (Two Air Filters and Vanguard Oil)
• KIT1290 | Engine Service Kit for 11 HP and 14 HP Kohler (One Quart Oil, Air Filter and Pre-Filter)
• KIT1167 | Engine Service Kit for 9 HP and 11 HP Honda (One Quart Oil, Air Filter and Air Pre-element Filter)
• 271856-1GAL | Vanguard Reciprocating Compressor Oil (One Gallon)
• 271856-1QT | Vanguard Reciprocating Compressor Oil (One Quart)

Options and Accessories (Sold Separately):

• 032863 | Battery Kit - PRO Series, Battery, Battery Box and 5' Battery Cables
• MA269944 | Battery Cable Quick Disconnect (for use with MA269945)
• MA269945-08 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 8')
• MA269945-12 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 12')
• MA269945-16 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 16')
• MA269945-20 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 20')
• MA269945-24 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 24')
• 264493 | Filter Lubricator (FLR) 1/2"
• OA92937 | Remote Condensation Drain
• 269602 | Hose Reel - for 1/2" Hose 50' (With High Temperature Hose and Ball Stop)
• 263355 | Hose Reel - for 3/8" Hose 50' (With High Temperature Hose and Ball Stop)
• KIT1203 | Vibration Isolator Kit, 3/8"
• KIT1202 | Vibration Isolator Kit, 1/2"
• MA272577 | OSHA Valve up to 47 CFM 3/8" (Excess Flow Safety Valve)
• 033051 | Remote Ignition, Honda 8'

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• NOTE | PRO Models do not include a battery.  Battery kits are available.
