Vanair 052024 V185-UT Utility Mount Air Compressor

Tier 4 Final-Compliant Utility Mount Air Compressor

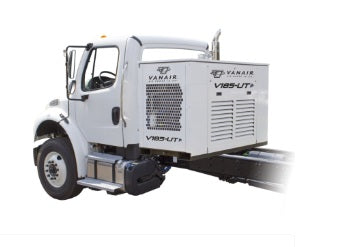

Vanair is pleased to offer our customers an industry-leading V185-UT Utility Mount Air Compressor that is a Tier 4 Final-compliant engine driven, utility mount, rotary screw air compressor in 185 CFM at 100 PSI. This stand-alone machine, which is typically cross-mounted along the bulkhead of the vehicle’s body, is equipped with a waterproof eye level, curbside digital control panel for easy accessibility. The corrosion resistant canopy has fork pockets and a balanced single point lifting bail for easy installation and removal

Features:

• Curbside Serviceability

• Large, 108mm Diameter Twin Screw Air End (127mm for V260-UT)

• Automatic 0 to 100% Capacity Control

• Two Stage Dry Type Air Filter – External Access

• Two 3/4” Service Connections

• Oil Level Sight Gauge

• Isuzu Engine

• Steel Fuel Tank

• Side by Side Coolers for Compressor and Engine

• Compact Size for Truck Mounting

• Curbside Fuel Fill & Air Filter Access

• Noise Level Limited to Maximum of 76 dBA at 7 Meters

• All Drains End Mounted

• Automatic Shutdown and Protection System

• Automatic Blowdown Valve

• Unloaded Starting

Specifications:

• Rated Delivery (CFM) | 185
• Rated Operating Pressure (PSI) | 100
• Fuel Capacity (gal.) | 30
• Engine (HP) | 49
• Dimensions (In.) | 80L x 36W x 57.36H
• Dry Weight (Lbs.) | 2,340

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck.  Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
