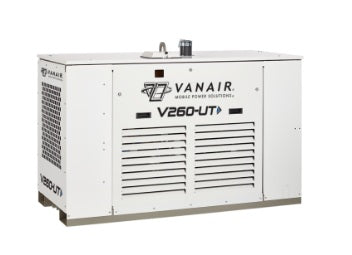

Vanair V260-UT Utility Mount Air Compressor

Tier 4 Final-Compliant Utility Mount Air Compressors
Vanair is pleased to offer our customers an industry-leading line of Tier 4 Final-compliant engine driven, utility mount, rotary screw air compressors in sizes of 185 CFM, 210 CFM, and 260 CFM. These stand-alone machines, which are typically cross-mounted along the bulkhead of the body of the vehicle, are equipped with a waterproof eye level, curbside digital control panel for easy accessibility. The corrosion resistant canopy has fork pockets and a balanced single point lifting bail for easy installation and removal.

Features:

• Curbside Serviceability
• Large, 108mm Diameter Rotary Screw Air End (127mm for V260-UT)
• Automatic 0 to 100% Capacity Control
• Two Stage Dry Type Air Filter - External Access
• Two 3/4” Service Connections
• Oil Level Sight Gauge
• Deutz Engine for 185 CFM, John Deere Engine for 210 and 260 CFM
• Steel Fuel Tank
• Side by Side Coolers for Compressor and Engine
• Compact Size for Truck Mounting
• Curbside Fuel Fill & Air Filter Access
• Noise Level Limited to Maximum of 76 dBA at 7 Meters
• All Drains End Mounted
• Automatic Shutdown and Protection System
• Automatic Blowdown Valve
• Unloaded Starting

Specifications:

• Rated Delivery (CFM) | 260
• Rated Operating Pressure (PSI) | 100
• Length (in) | 83
• Width (in.) | 35
• Height (in.) | 55.39
• Weight (lbs.) | 3,070
