Wilton | SKU: WIL11707

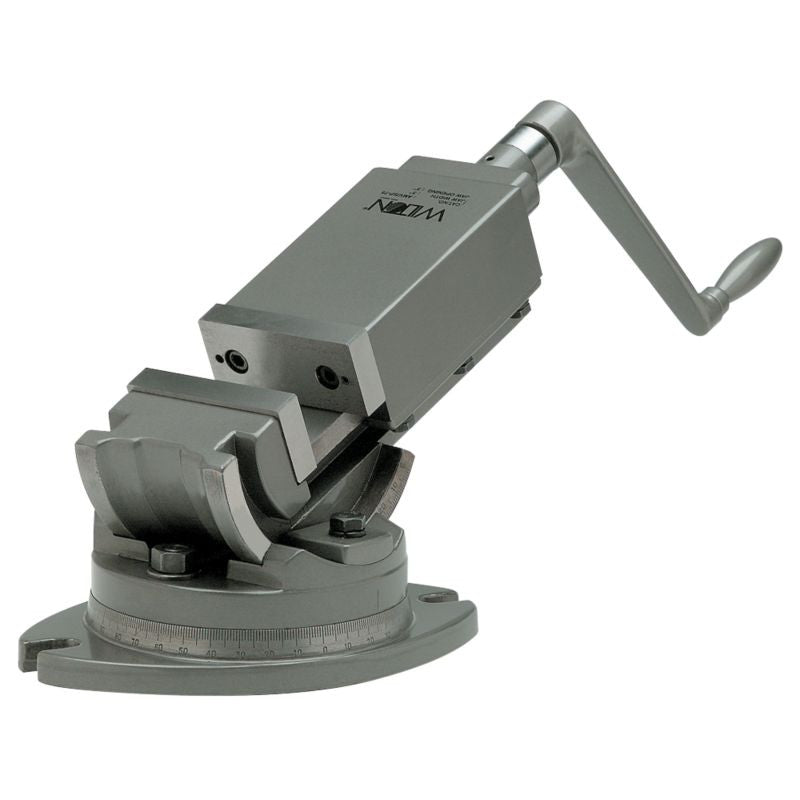

Wilton 11707 6" 2-Axis Precision Angular Vise

$1,220.99

Wilton 11707 Super Precision 2-Axis Tilting Vise

*** Actual Product May Differ From Image Shown ***

Wilton's line of 2 Axis Machine Vises are perfect for applications that require machining on an angle. These high precision vises are constructed of close grained, high tensile alloy castings. All boast 90 degree vertical and 180 degree horizontal indexing, 360 degree swivel base, and 90 degree tilting range, all backed by Wilton's lifetime warranty.

Features:

Perfect vise for applications where the workpiece requires machining on an angle
Vise bodies are constructed of close grained, high tensile, seasoned alloy castings
All ground surfaces made to close tolerances
Ergonomically designed all steel handle with spring loaded ball attachment
Jaw plates hardened and ground
No jaw tilt
Hardness of jaws 55 ± 3 HRC
90° vertical and 180° horizontal indexing
360° swivel base
90° tilting range
Perfectly indexed for angular work
Relief in the clamp seat ensures complete surface contact providing firm locking at any angle
Bases have key-ways and bolt slots for machine mounting

Specifications:

Part Number | 11707
Jaw Depth | 1 3/4"
Jaw Material/Hardness (MW) | 55 ± 3 HRC
Jaw Width | 6"
Opening Capacity Max | 6"
Type of Base | 360° Swivel
Squareness | 0.001"
Overall Height | 7.697"
Web Description | 2-Axis Precision Angular Vise 6" Jaw Width, 1 3/4" Jaw Depth
Family Description | 2 Axis Precision Angular Vises
Model Number | AMV/SP-150
Brand | Wilton
Height | 10.3"
Width | 12"
Length | 22.2"
New Weight | 100.92 lbs
