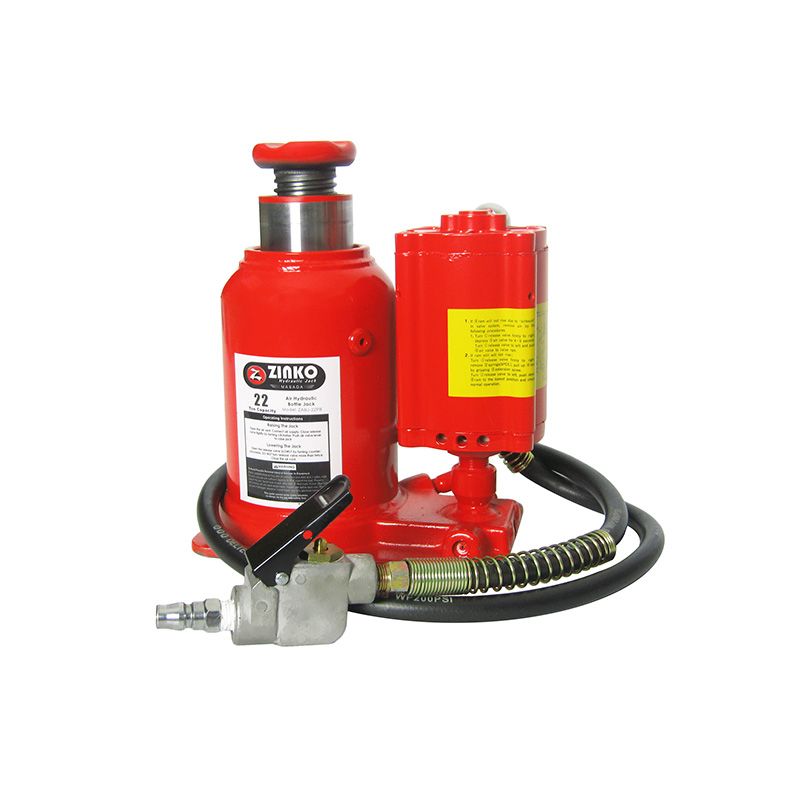

ZINKO ZABJ-22PB 22 Ton Air Hydraulic Low Height Bottle Jack

Air Hydraulic Low Height Bottle Jack. 22 ton, Air Pressure Range 80-140 psi. Turn ordinary manual bottle jack power into air-hydraulic power. When connected to your shops air lines, these versatile jacks can safely deliver lifting power with the ease of a button to lift heavy beams, machines, platforms, and other objects.

Features:

• Welded steel construction throughout - reduces metal fatigue allowing for a longer life.
• Forged steel base increases resistance to high pressure and also increases durability.
• Oil bypass system prevents the lifting ram from over extending.
• Safety valve device protects hydraulic system from overload damage.

Specifications:

• Capacity (ton) | 22
• Lifting Time - No Load (sec) | 35
• Lifting Time - Load (sec) | 195
• Air Pressure Range (psi) | 80 ~ 140
• Base Area (in) | 7" x 4-1/2"
• Min. Height (in) | 7-1/4"
• Ram Lift (in) | 3-3/4"
• Screw Extension (in) | 1-1/2"
• Max. Height (in) | 12-1/2"
• Weight | 27 lbs
