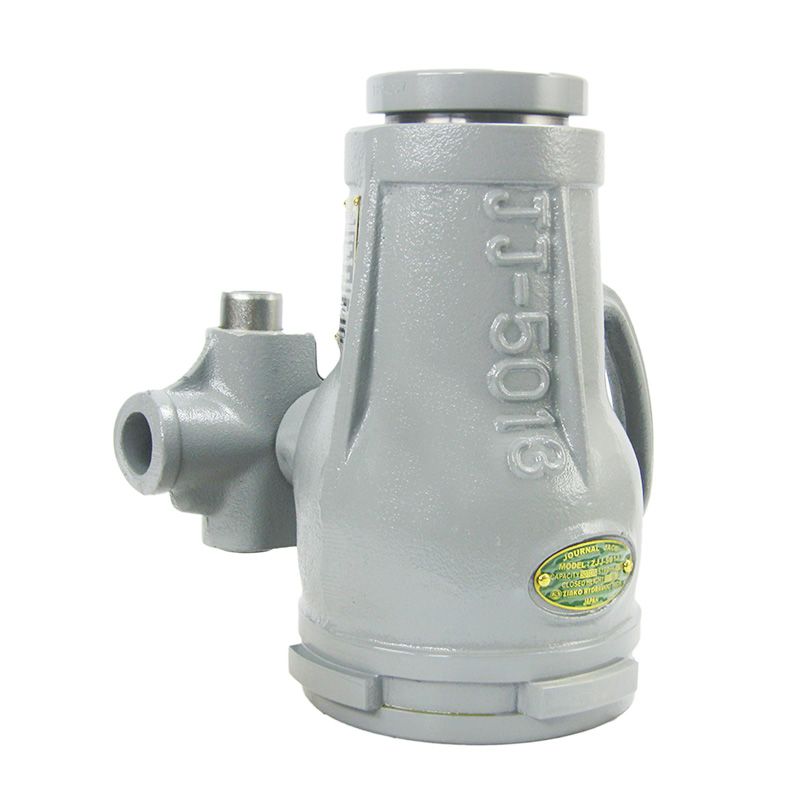

50 Ton Steel Mechanical Journal Jack, 5 inch stoke, Minimum Height 11.375 inches. Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth actuation. Extremely strong, precise interlocking gears.



• Unique construction bearing is made for longer life and smooth horizontal advance.

• Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.

• Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.

• Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.

• Buttress threads will not creep down under load.

• Operable vertically or laterally (lateral movement requires optional traversing bed).
• Made in Japan

Specifications:

• Capacity (Tons) | 50

• Stroke (in) | 5.11

• Operation Force (Ft. / lb.) | 1035

• Minimum Height (in) | 11.42

• Maximum Heights (in) | 16.53

• Saddle Diameter (in) | 4.13

• Base Diameter (in) | 6.50

• Weight (lbs) | 90
